Specifications, Replacement parts and accessory, Wiring diagram – Desa BY150ECA User Manual
Page 14
14
102424
Output Rating (Btu/Hr.)
100,000
150,000
Fuel
Use Only Kerosene or No. 1 Fuel Oil
Fuel Tank Capacity (Liters/U.S. Gal.)
34/9.0
51/13.5
Fuel Consumption (Liters/Gal. Per Hr.)
2.8/.76
4.1/1.1
Electric Requirements
120 V/60 Hz (Same All Models)
Amperage (Normal Run)
4.0
4.4
Hot Air Output (CMM/CFM)
13.6/480
14.2/500
Motor RPM
3450
3450
Motor HP
1/4
1/4
Approximate Shipping Weight (KG/Pounds)
27/60
31/68
Approximate Heater Weight without Fuel
(KG/Pounds)
23/51
26/57
SPECIFICATIONS
Purchase accessories and parts
from your local dealer.
REPLACEMENT
PARTS AND
ACCESSORY
White
Brown
Blue
Green/Yellow
120V/60Hz
Photocell
Spark Plug
Ignitor
Flame-
Out
Control
B
Reset
Button
R
Red
Motor
Blue
White
Blue
White
Green/
Yellow
White
Red
Red
Green/
Yellow
Terminal
Board
Red
Relay
Black

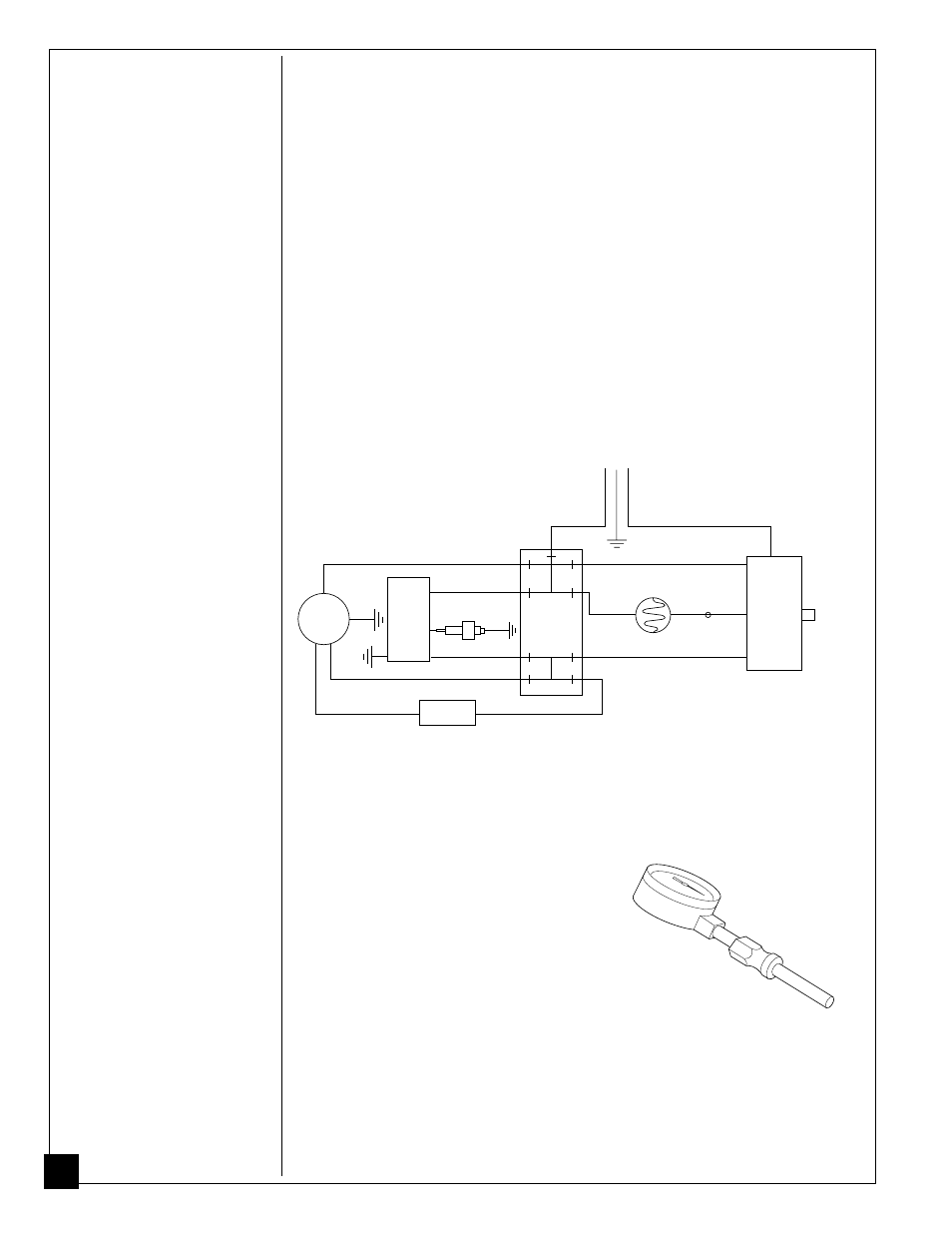

WIRING
DIAGRAM
AIR GAUGE KIT - HA1180
Special tool to check pump pressure.
