OPERATION
On the side of the chime you will find an on/off switch. Slide switch
to ON position. The volume control is also located on the side of the
chime. To adjust volume, simply slide to desired volume setting. There
is an electric receptacle on the opposite side of the chime, providing
additional convenience.
INSTALLING THE CHIME(S)
Place the chime or chimes in logical location (that will afford the great-
est usefulness). You need merely plug in to an electrical outlet. Do
not place chimes near metal objects such as refrigerators, cabinets or
washing machines. Doing so may prevent signal from being clearly
received.
MOUNTING THE PUSH BUTTON(S)

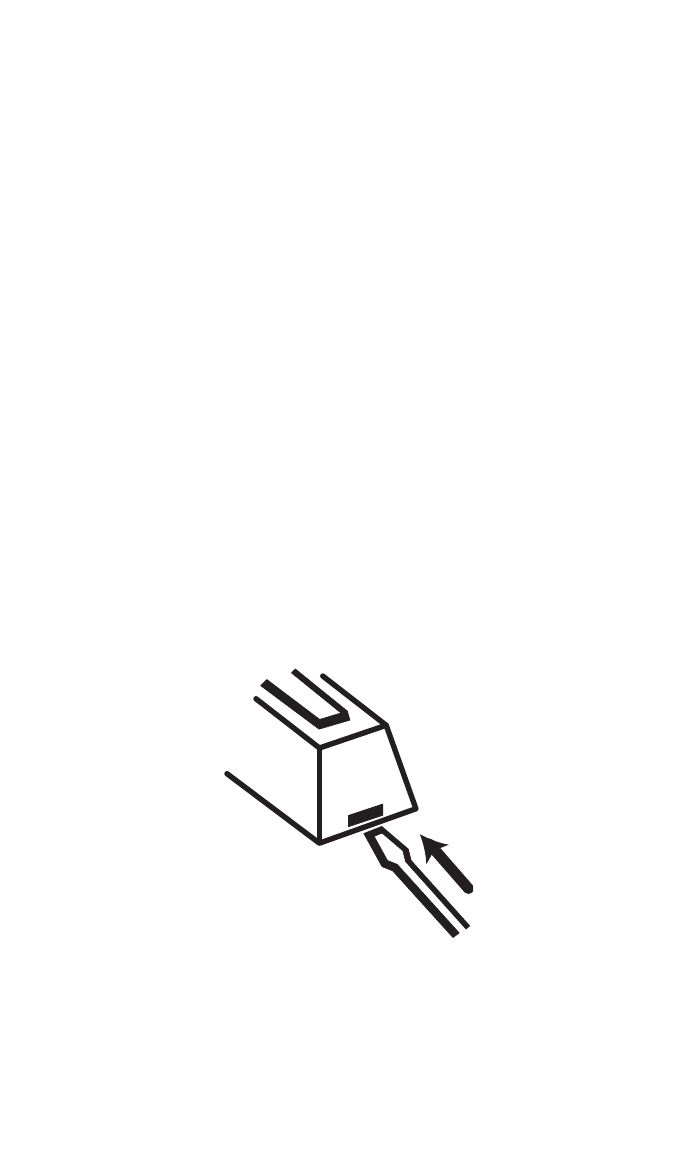

Select an appropriate location near the entrance door. Using a flat
head screwdriver, press the tab on the bottom of the push button, lift the
back plate and use it as a template to mark the mounting hole locations.
Drill two 3/16” diameter holes, align the back with the holes. Using the
screws provided, attach the push button to the surface. Snap the push
button housing in place over the mounted back.
598-1186-01
-3-
INSTALLING BATTERIES INTO PUSH BUTTON(S)
Your new Strobe Chime push button uses a 12 volt battery (Trine A-23).
Simply insert into battery compartment by lifting back lid, inserting and
closing.
