9-1

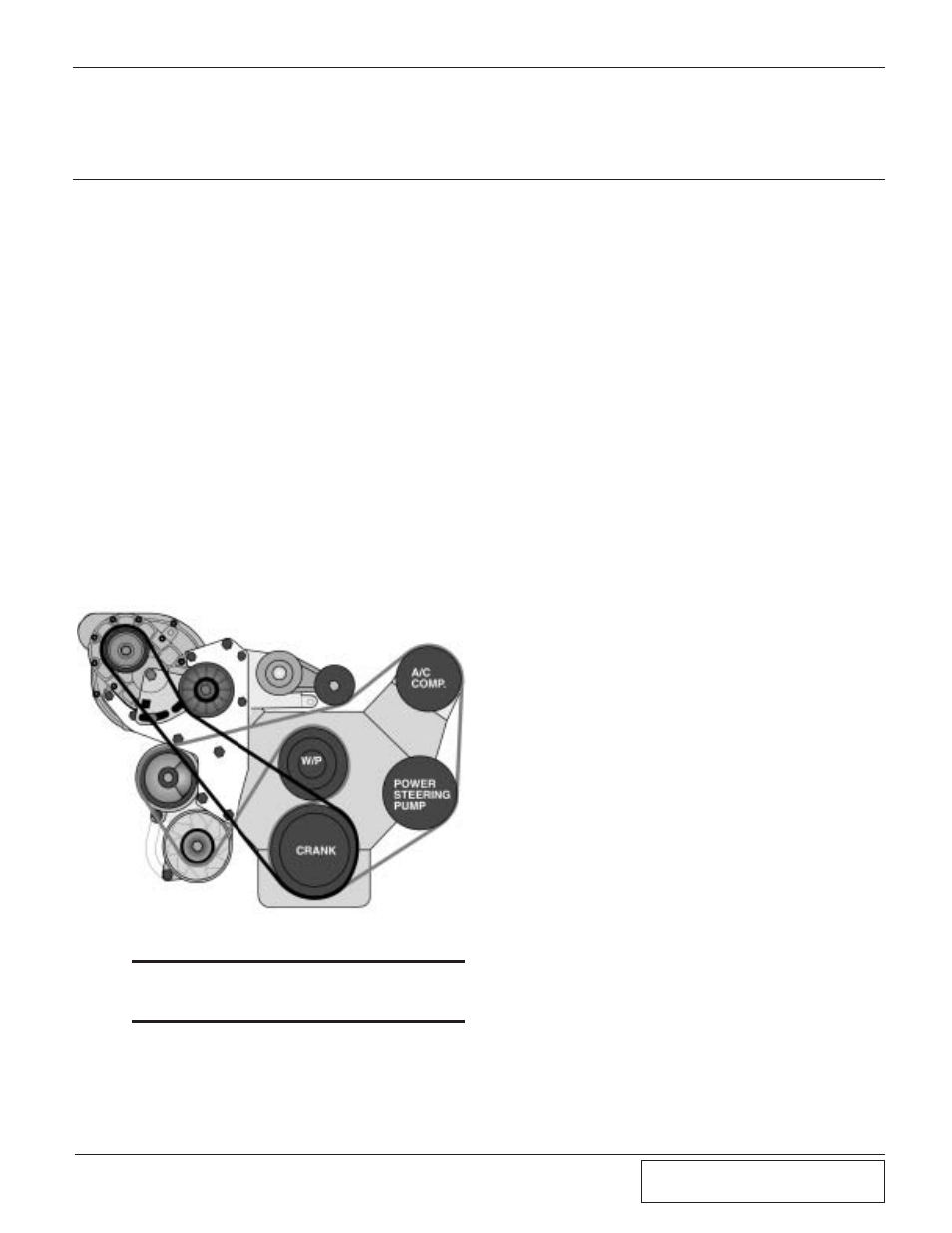

Fig. 9-a
A. Secure the factory spring tensioner assembly
to the Paxton belt tensioner mounting bracket
using the 1/2" carriage bolt.
B. Replace the locking type nut on the A/C
mounting bracket stud closest to the water
pump with a standard nut.
C. Depending on Ford's manufacturing toler-
ances, it may be necessary to trim about 1/8"
off the edge of the flange on the A/C mount-
ing bracket to provide room for the tensioner
mounting bracket.
D. Install the tensioner mounting bracket with
tensioner between the supercharger mounting
plate and A/C bracket stud using two standard
flat washers as a spacer. Secure with two 3/8-
16 x 1" bolts and washers and a 3/8-16 nut.
E. Reinstall radiator shroud and fan assembly.
F. Reinstall stock accessory belt.
9.0 ACCESSORY BELT TENSIONER
MOUNTING BRACKET
Section 9
ACCESSORY BELT TENSIONER
*** NOTE ***
Check the accessory belt tensioner pulley alignment.
It may be necessary to add or remove a washer to
the stud behind the tensioner bracket.
