DESCRIPTION

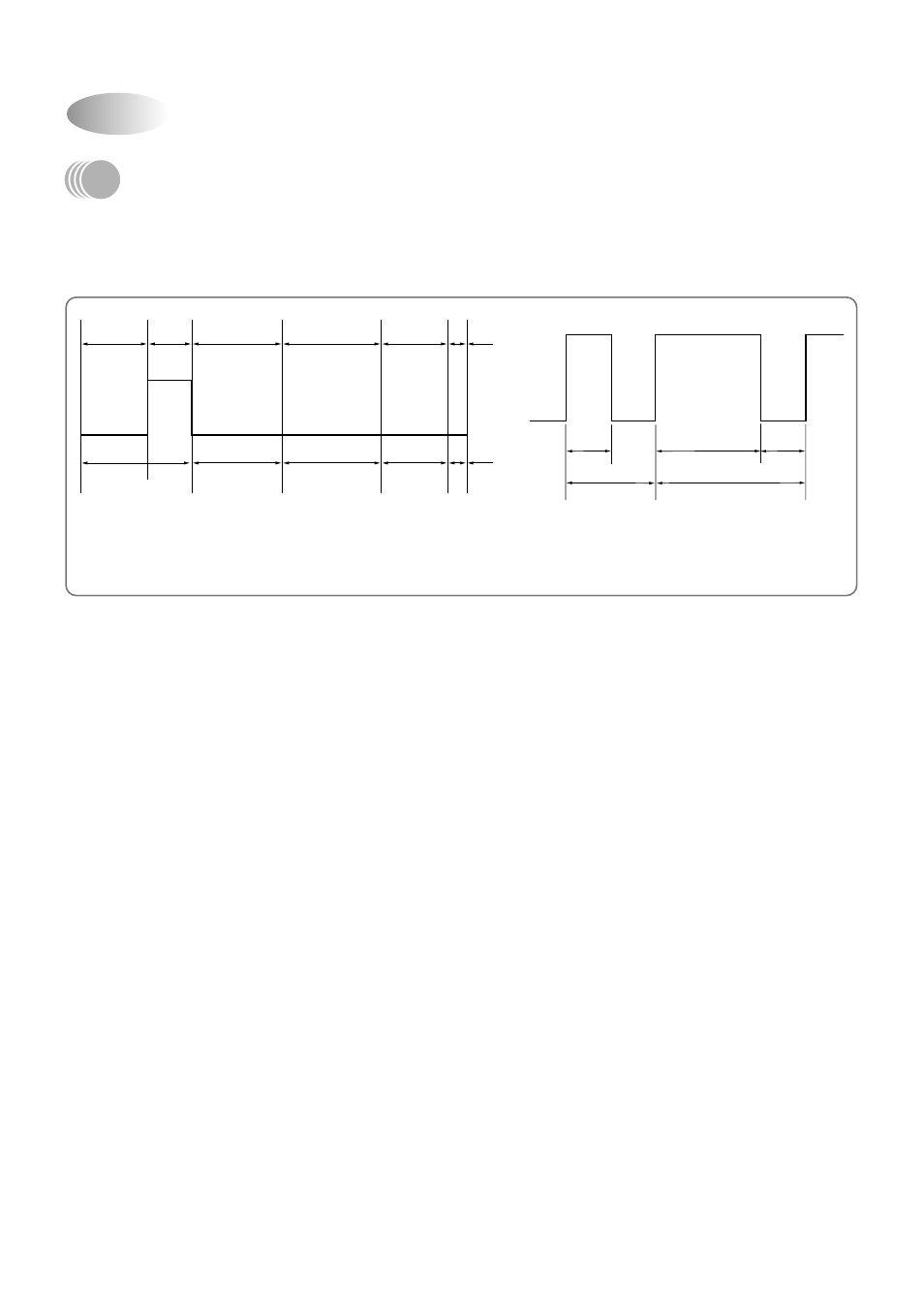

Signal from Remote Controller put in only Control Data Signal at Micom Terminal of Number 33, which is gotten
fid of Carrier (38KHz) from Receive Module. Signal Wave repeat third as following Fig 5-1.
But in Secondary Wave Custom Code is Reversed Face.

LEADER CODE

CUSTOM

CODE

DATA

CODE

CHECK

SUM

TAILER

9ms

4.5ms

16bit

24bit

8bit

Fig 5-1

Fig 5-2

BIT STRUCTURE

Remote Controller(5)

0.56ms

1.69ms

1.12ms

2.25ms

bit 0

bit 1
