Fig.13 The amplifier can be configured for a mixed-mode operation on either channels 1/2 or 3/4
amplifier sections. The table provides component values to create a 6dB per octave crossover at
specified frequencies. Use the same frequency for both LP and HP crossovers. Do not overlap
frequencies, as this may damage the amplifier.
SOURCE
2CH BASS 2CH 4CH
LOW HIGH FULL LOW HIGH FULL
D3 400.4
NOTE Chart values based on 4 ohm speakers.
Speakers On Front
Mixed-Mode System On Rear Full-Range

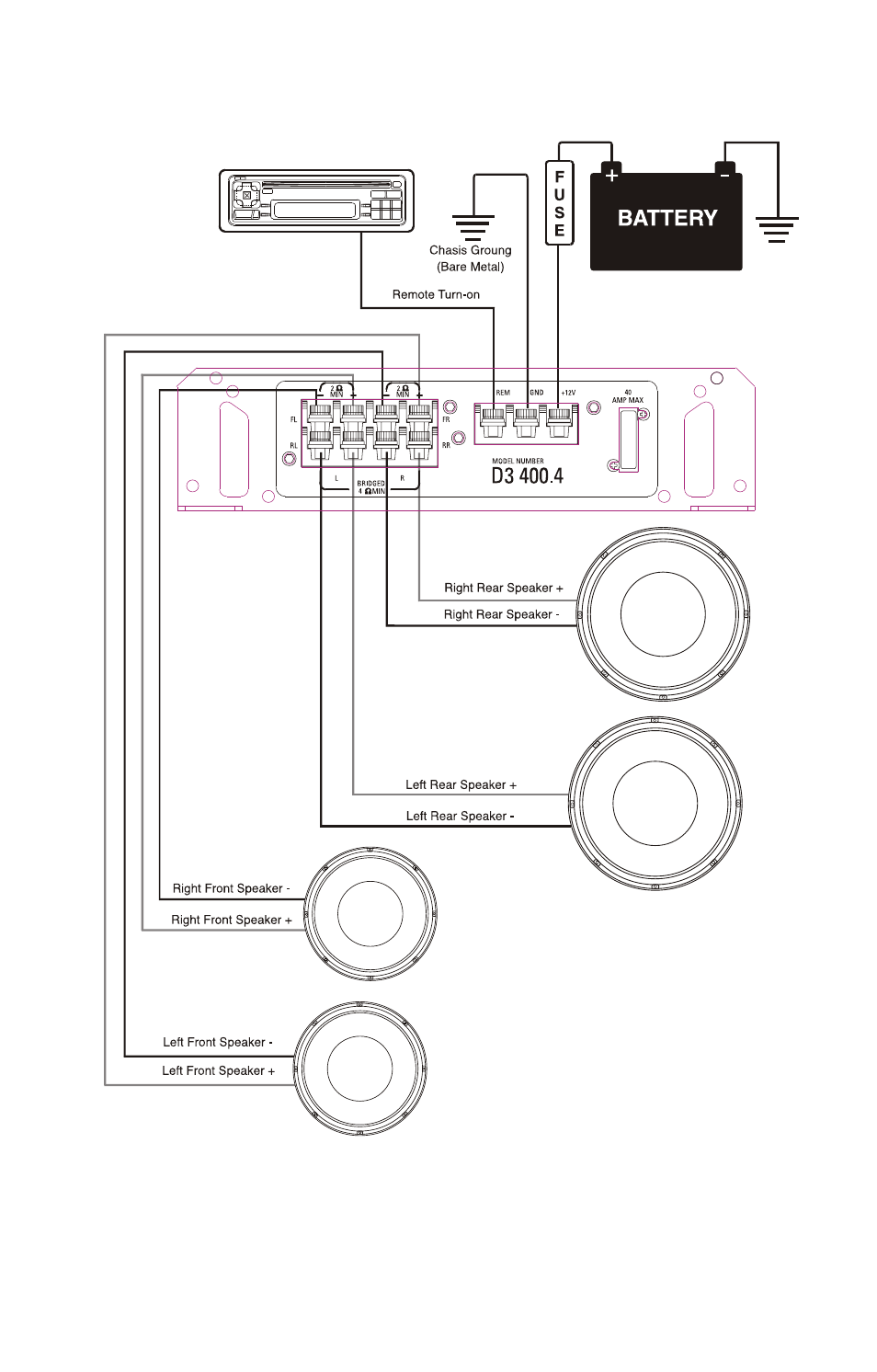

Fig.14 Electrcal connections for the D3 400.4
D3 400.4
