User’s Manual CA 1001
KLING & FREITAG GMBH ©1995 - 2006 Version 3.0, 22.03.2006 Page 16 of 27

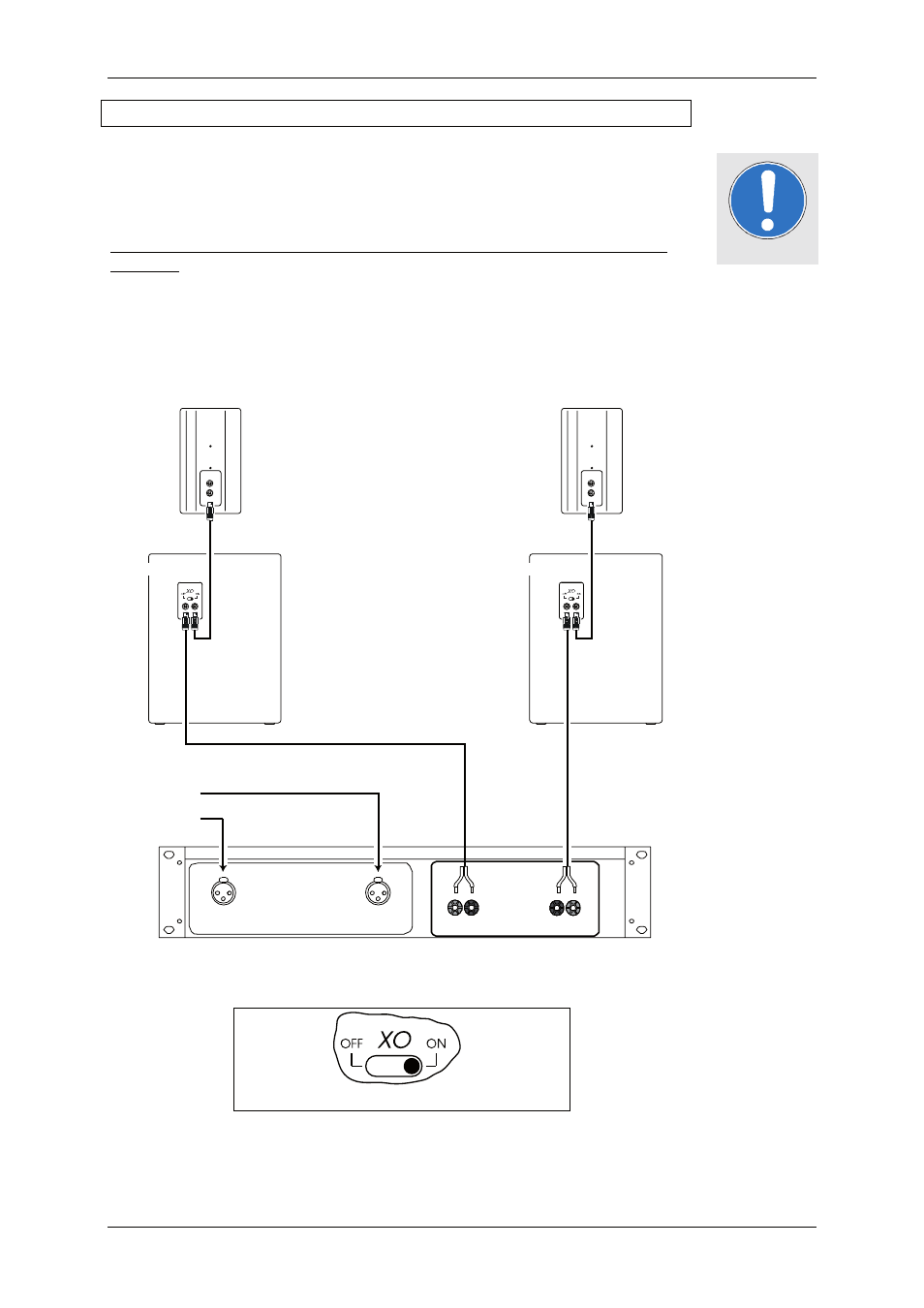

9.1.2 Full-Range Mode & Subwoofer with Crossover (XO)
In this mode of operation you can easily realise applications, where a higher bass level is
needed.
In this mode of operation be sure to use only amplifiers, which can handle speaker im-
pedances down to 3
Ω.
Recommended combinations of CA 1001 systems with K&F subwoofers in 2-way pas-
sive mode:
2 x CA 1001 with 2 x SW(i) 112
or 2 x SW(i) 115D - XO
or 2 x SW(i) 115E - XO
or 2 x SW(i) 118E --- XO
INPUT CH 2 INPUT CH 1
OUTPUTS
CH 2 CH 1
- + - +
INPUT e.g. from
mixer, AUX or
Connector Panel
Switch To 'XO ON' Switch To 'XO ON'
The switch ‘XO’ on the connecting terminal of the subwoofer with integrated crossover
must be at ‘XO ON’ for this mode of operation:
Switch on the subwoofer’s connecting terminal
When using the CA 1001 systems in a cluster (speakers in close proximity), reduce the
frequencies below 300 Hz by 3-4 dB. (The K&F C2 Controller is equipped with a special
filter for this purpose, which can be activated by pressing the "Top-Low Cut" switch)
Important
