Ilumipod LΩgic™ Tri-1 Optic RGB
3
Input Power
The input power for this product is provided by a L
Ω
gic™ Controller
(1,050 mA @ 48 V).
Mounting
To mount this product, cut a circular hole in the panel using the provided
template. You can use the optional trim ring to lock the product in place.
Wiring
This product comes with a 79 in (2 m) long CAT 5 cable, terminated with
an RJ45 plug to connect to a L
Ω
gic™ Controller. If using the included
splitter or if making an extension of the product’s cable, you must use
plenum-grade CAT 5/6 wire. The RJ45 connector pin out is shown
below.
RJ45 Pin Out
Pin
Wire Color Function
1 White/orange Red LED
+
2 Orange/white Green LED
+
3 White/green Blue LED
+
4 Blue/white Not used
5 White/blue Red LED
-
6 Green/white Green LED
-
7 White/brown Blue LED
-
8 Brown/white
Not used
Connectivity
The figure below shows a possible connection layout using this product
and a L
Ω
gic™ 4X36 Controller. Refer to the applicable L
Ω
gic™
Controller User Manual regarding wiring layouts and limitations.

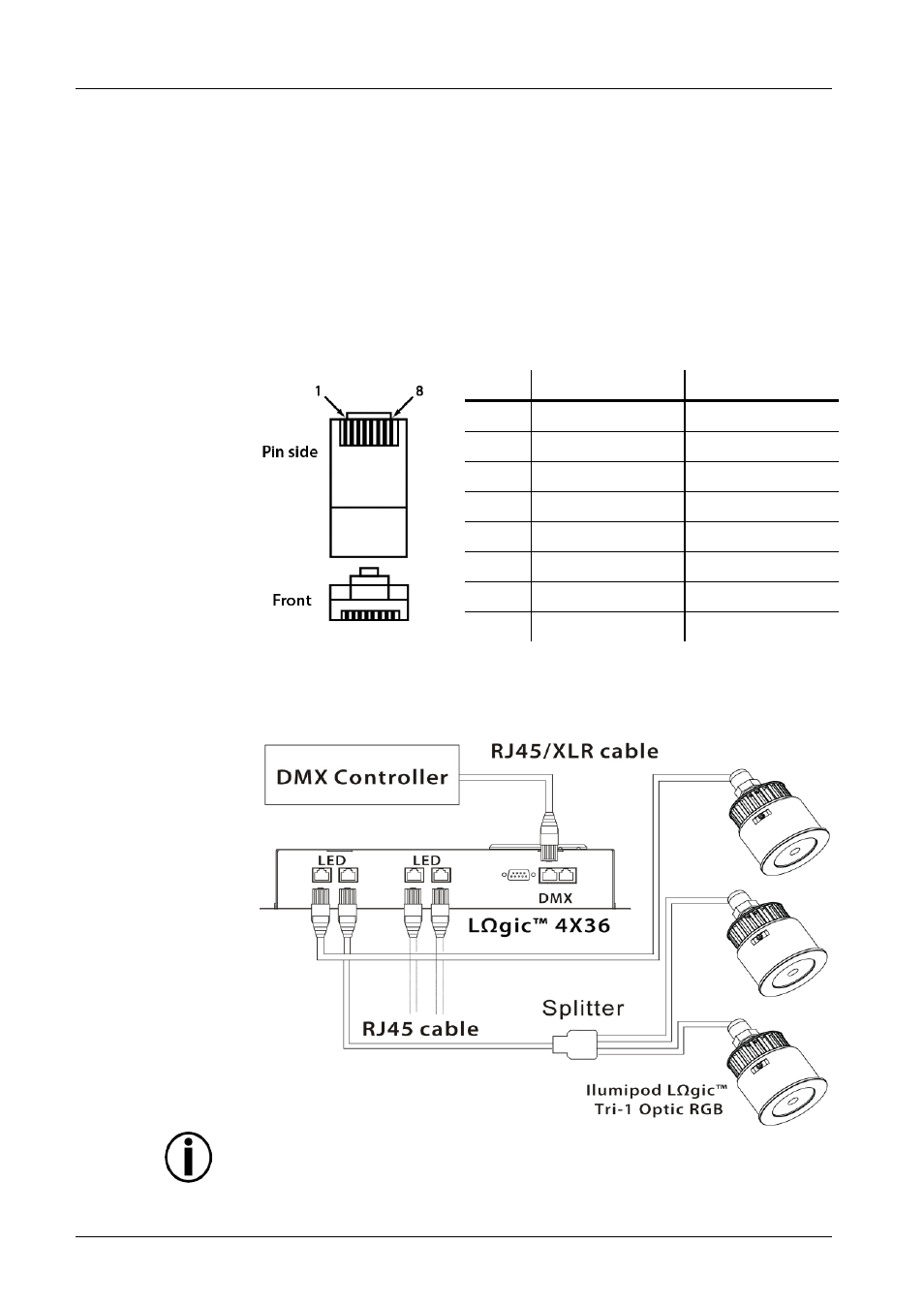

Connection Diagram
All cables must be terminated to a product. Do not use
the splitter as a coupler.
