User Manual Wall Mounted Keypads
www.cuesystem.com
Page 11 of 22
7. Specifications and Mechanical Drawings
7.1. keypadCUE-1G............................................................
Buttons layout......................................(8) buttons
Buttons back-light ................................Red, programmable indication
Bar graphs ...........................................(1) 20-LEDs
System connection ..............................CUEwire (RS-485), 4-pin connector
Power supply .......................................24 VDC (+/- 20%), 3 W
Enclosure.............................................Metal
Dimensions (WxHxD) ..........................69 mm (3”) x 108 mm (4.5”) x 49 mm (1.9”)
Weight..................................................0.2 kg / 0.4 lb

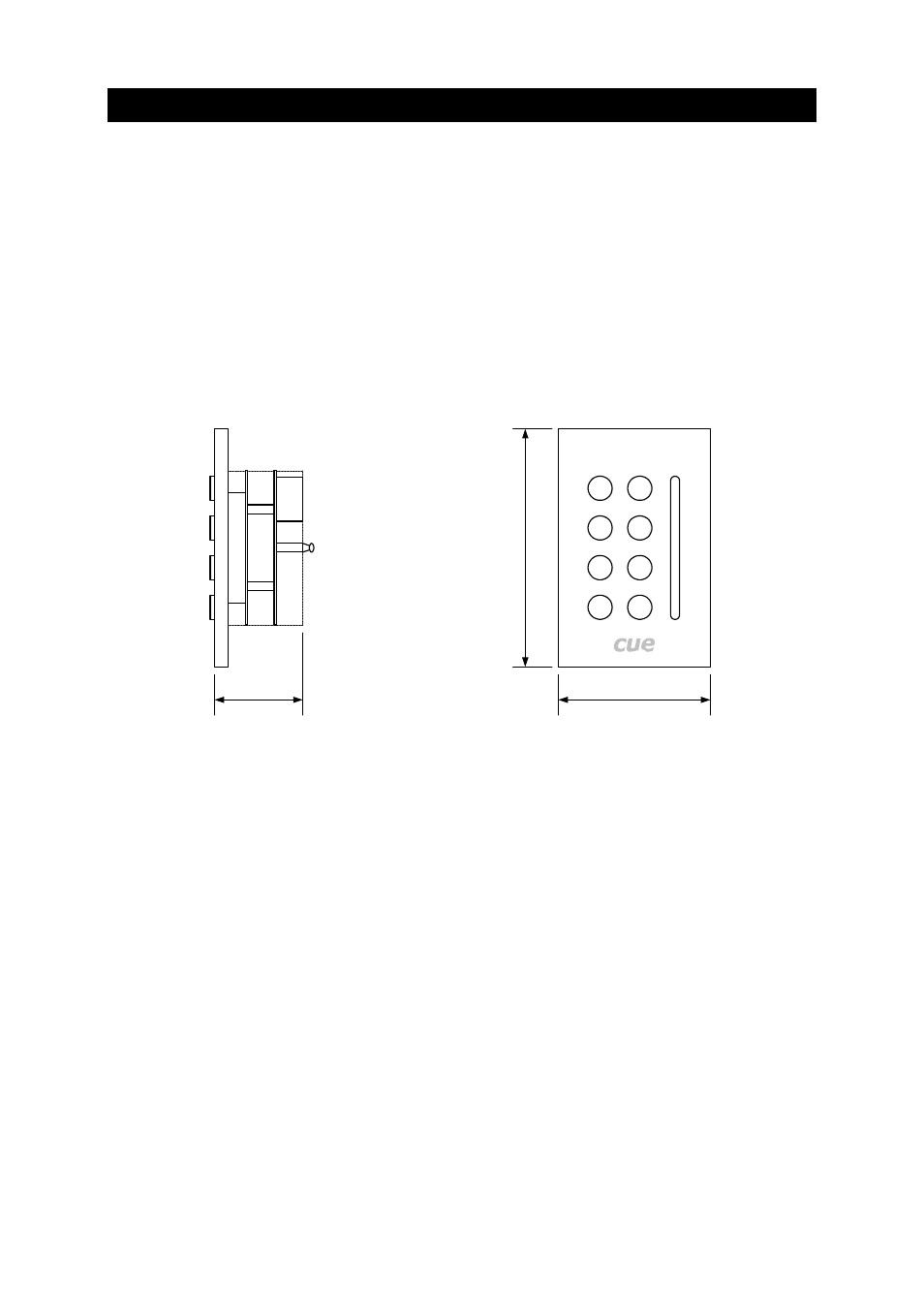

All dimensions are in mm.
69mm
108m
m
40mm
