LP-172 User’s Manual
- 35 -

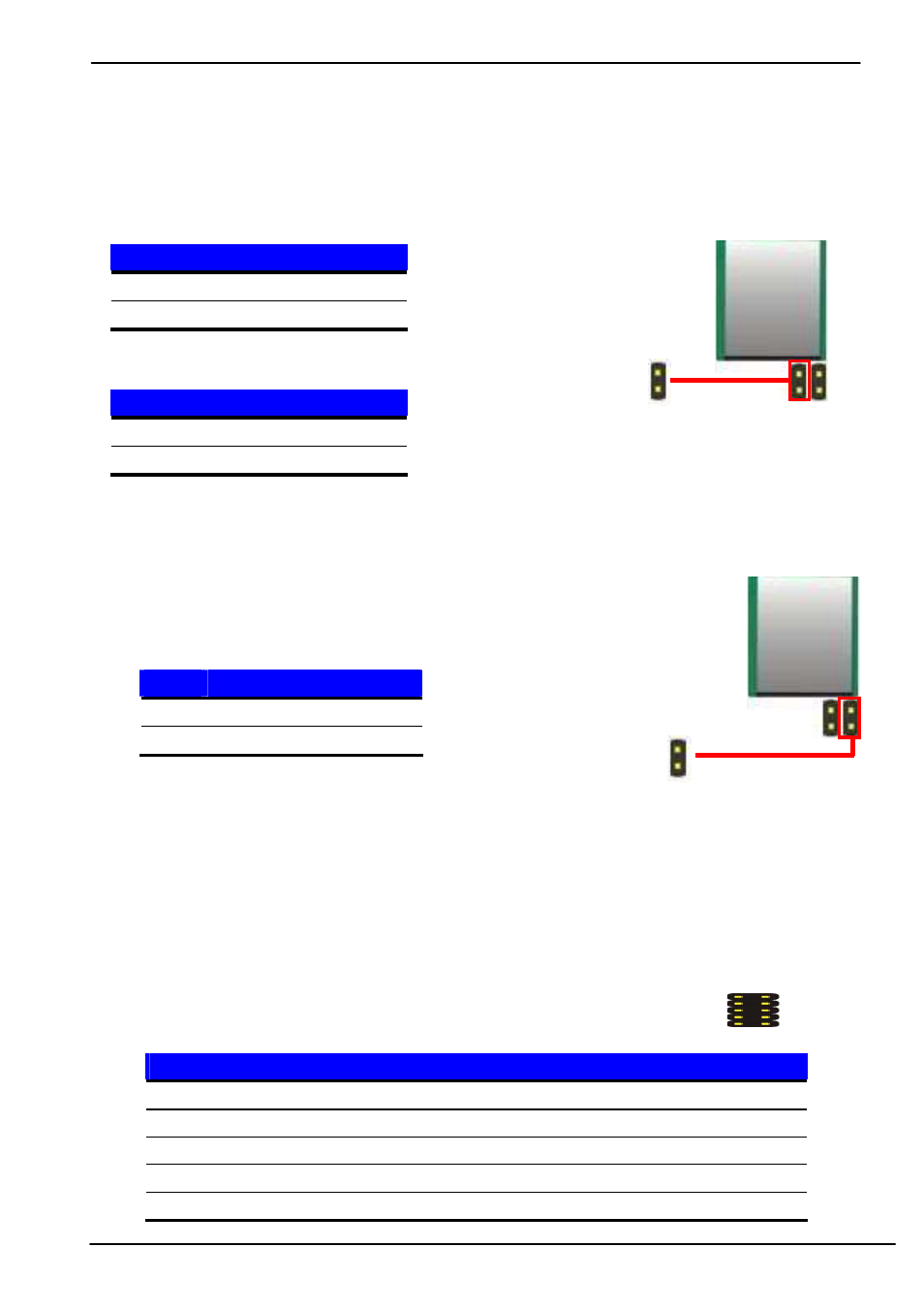

A.4
Connector: JSPD1
Type: 2-pin header for LAN Speed LED connector RJ45 connector with LED on
rear panel
When Lan speed 10/100Mbps
When Lan speed 1Gbps
Connector: JACT
Type: 5-pin header for LAN Activity LED connector
A.5
Connector: JSPD1
Type: 10-pin header for LPC Port
Pin Description Pin Description
1 LPC_CLK 2 RESET-
3 LFRAME- 4 LAD3
5 LAD2 6 LAD1
7 LAD0 8 +3.3V
9 Ground 10 Ground
Pin Description
1 LED-
2 LED+
Pin Description
1 LED+
2 LED-
Pin Description
1 LED-
2 LED+
1
2
2
1
2 1
10 9
