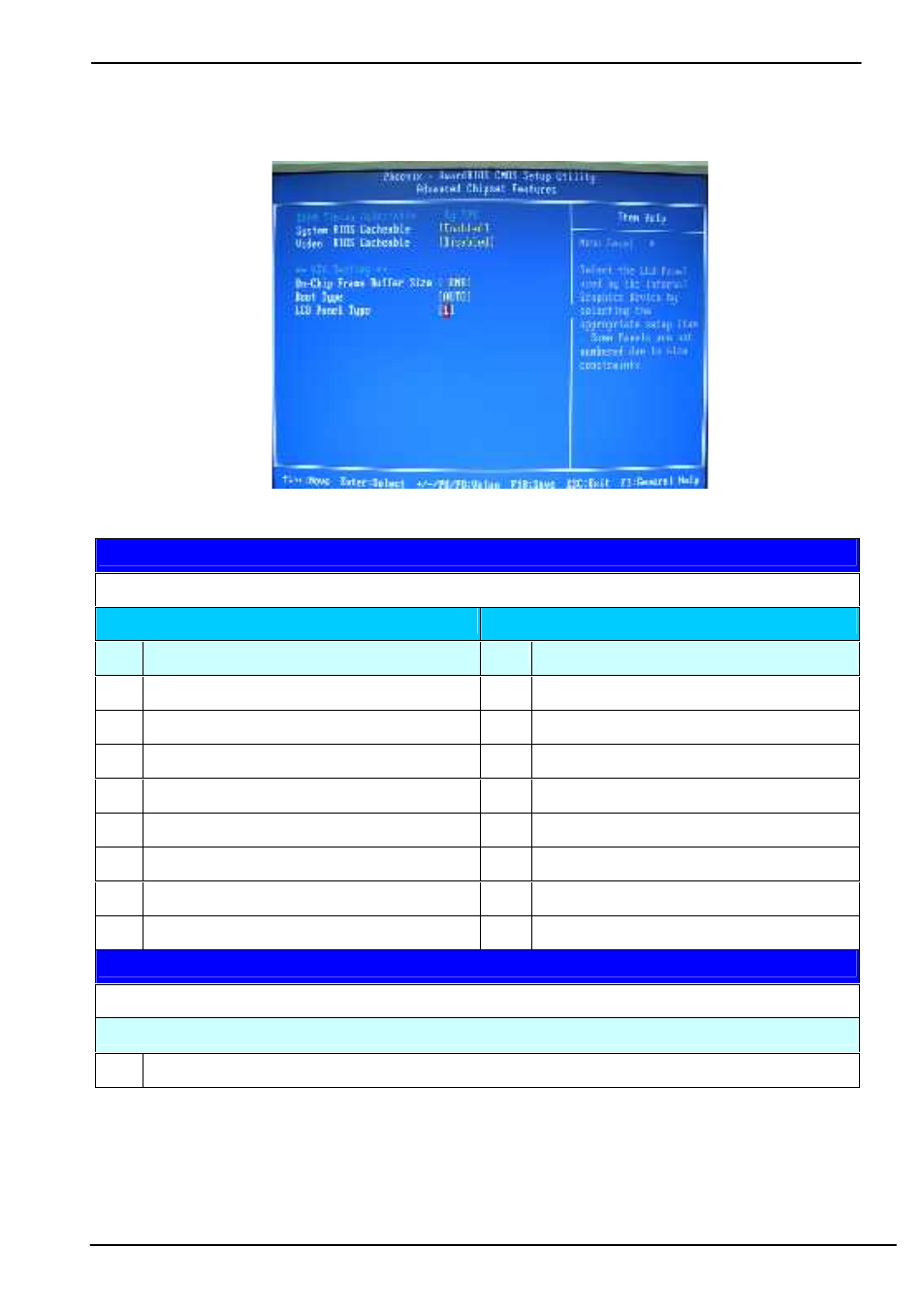

After setup the devices well, you need to select the LCD panel type in the
BIOS.
The panel type mapping is list below:
LP-171 BIOS panel type selection form
On board Single channel LVDS
18bit 24bit
NO. Output format NO. Output format
1 640 x 480 9 640 x 480
2 800 x 480 10 800 x 480
3 800 x 600 11 800 x 600
4 1024 x 600 12 1024 x 768
5 1024 x 768 13 1280 x 720
6 1280 x 768 14 1280 x 768
7 1280 x 800 15 1366 x 768
8 1400 x 1050
LP-171X BIOS panel type selection form
MPX-SDVOX Dual channel LVDS
Output format
1 1280 x 1024 24bit
The LP-171X series supports dual channel 24bit LVDS, if need support other
resolution flat panel, please contact Commell tech support team for customize
BIOS and driver.
