The board supports two Serial ATA ports onboard, and supports RAID 0, 1 and JBOD disk
array, the RAID 0, 1 and JBOD are specified below:
RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W
performance. It needs two unused drives to build this operation.
RAID 1 (Mirroring): Copies the data from first drive to second drive for data security, and if
one drive fails, the system would access the applications to the workable drive. It needs two
unused drives or one used and one unused drive to build this operation. The second drive
must be the same or lager size than first one.
JBOD (Span): As different as RAID 0, the JBOD combines two disks as one without any
fault tolerance and I/O performance enhancement.

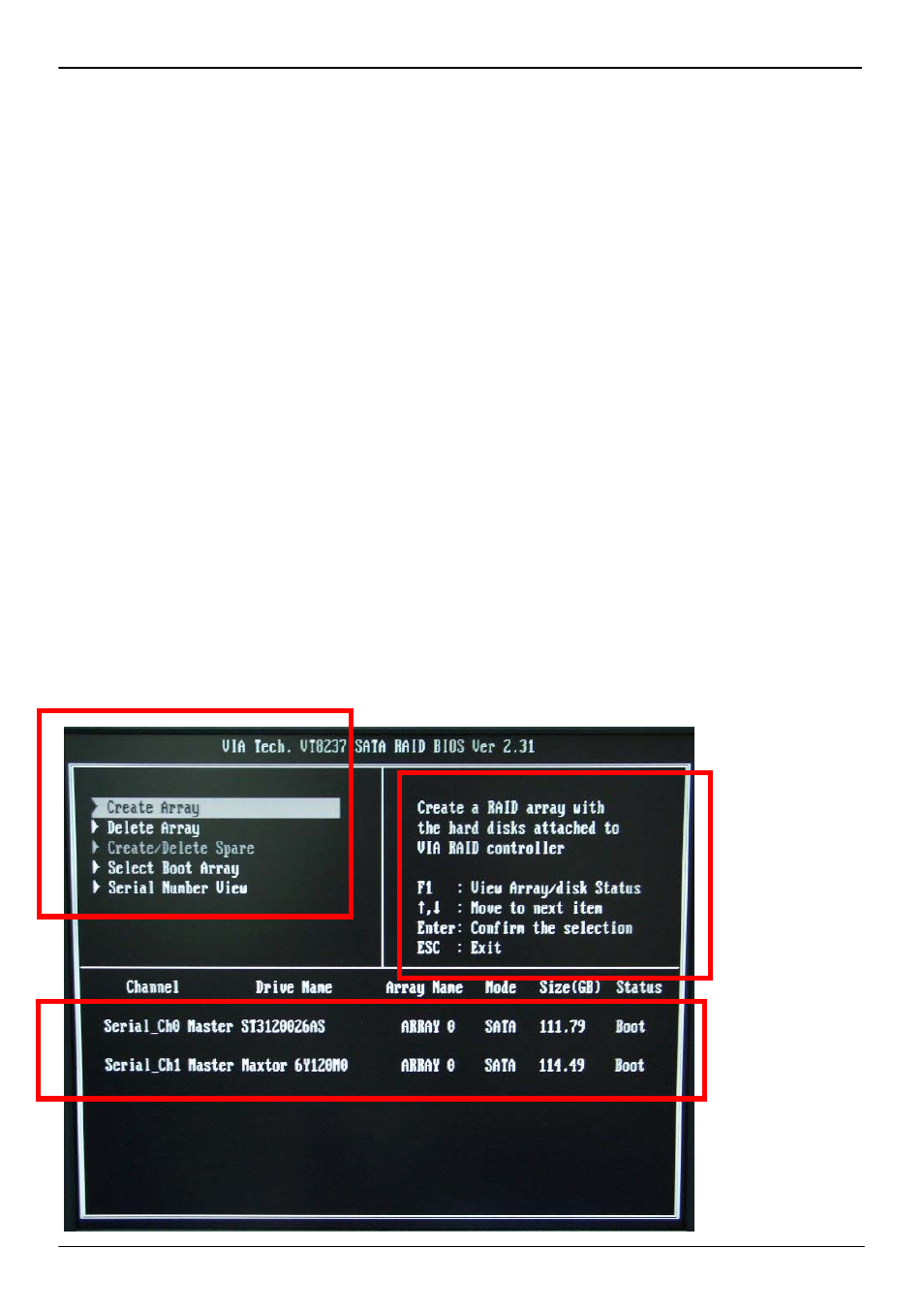

To build Serial ATA disk array, please press
entering OS, and follow the instructions to edit the RAID function.
(Selectable Functions)
(Option Instruction)
(Disk Statement)
