COMMELL LV-67D User Manual
Page 24
LV-67D User’s Manual
-
22
-
To setup the LCD, you need the component below:
1. A panel with LVDS interfaces.
2. An inverter for panel’s backlight power.
3. A LCD cable and an inverter cable.
For the cables, please follow the pin assignment of the connector to make a cable, because
every panel has its own pin assignment, so we do not provide a standard cable; please find
a local cable manufacture to make cables.

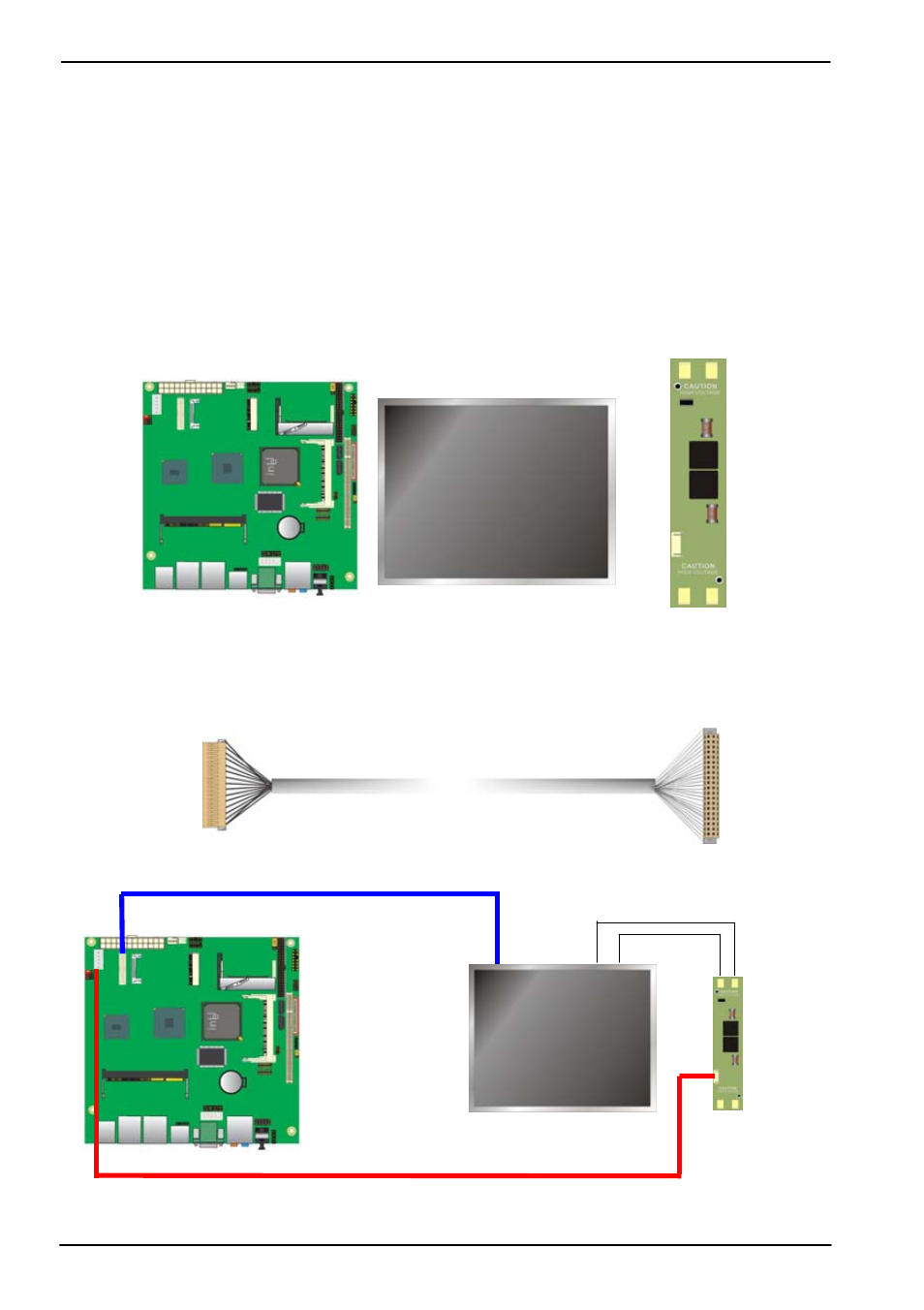

LCD Installation Guide:
1. Preparing
the
LV-67D, LCD panel and the backlight inverter.
2. Please check the datasheet of the panel to see the voltage of the panel, and set
the jumper JVLCD to +12V or +5V or +3.3V.
3. You would need a LVDS type cable.
4. To connect all of the devices well.
After setup the devices well, you need to select the LCD panel type in the BIOS.
For sample illustrator only
Panel side
Board side
