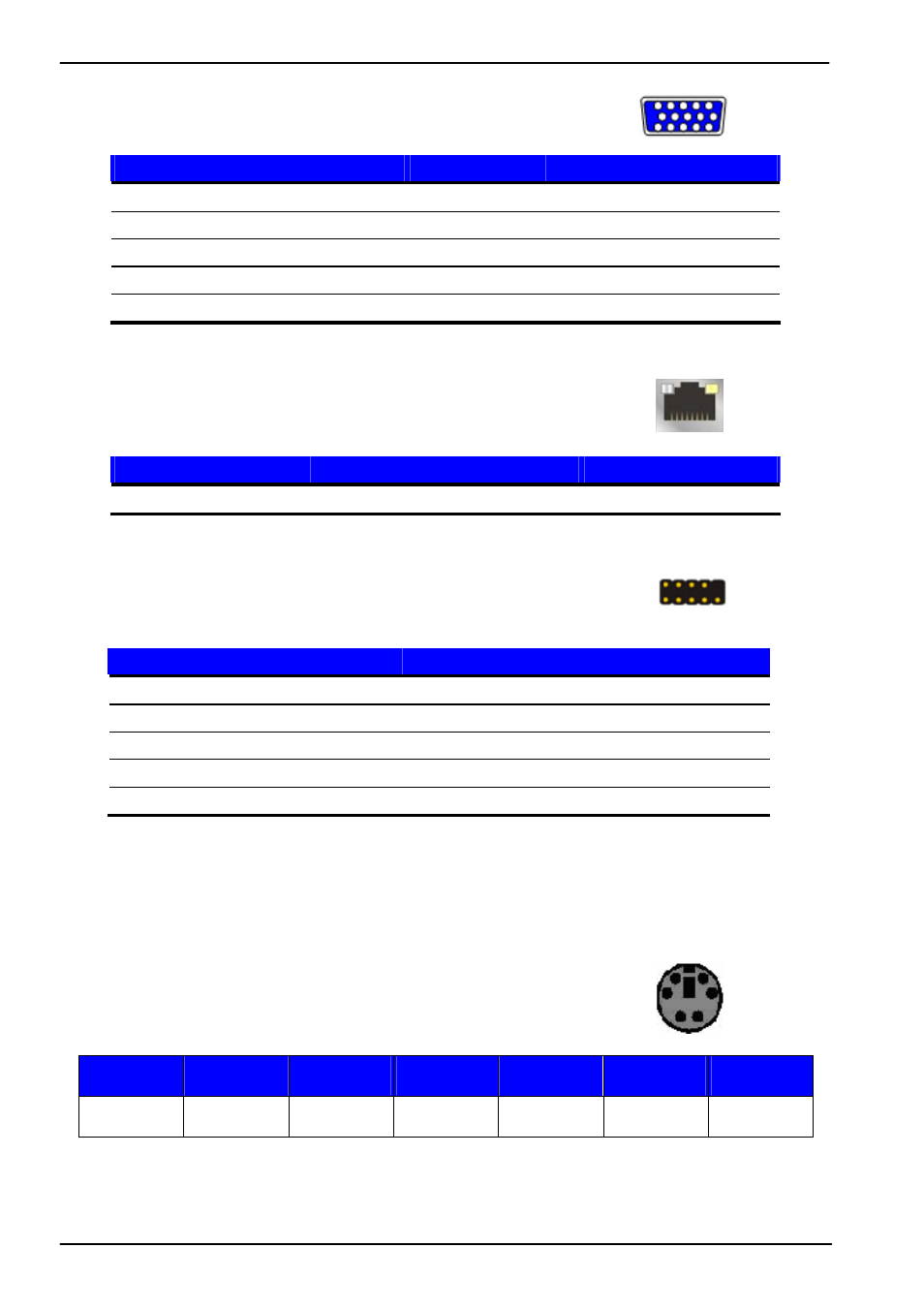

LS-377 User’s Manual
- 36 -
1 5
6 10
11 15
1
2
A.5
Connector: CRT
Type: 15-pin D-sub female connector on bracket
Pin Description Pin Description Pin Description
1 RED 6 Ground 11 N/C
2 GREEN 7 Ground 12 DDCDA
3 BLUE 8 Ground 13 HSYNC
4 N/C 9 N/C 14 VSYNC
5 Ground 10 Ground 15 DDCCLK
A.6
Connector: RJ45
Type: RJ45 connector with LED on bracket
Pin 1 2 3 4 5 6 7 8
Description TRD0+ TRD0- TRD1+ TRD2+ TRD2- TRD1- TRD3+ TRD3-
A.7 < USB Interface >
Connector: CN_USB 3/4
Type: 10-pin (5 x 2) header for dual USB Ports
Pin Description Pin Description
1 VCC 2 VCC
3 Data0- 4 Data1-
5 Data0+ 6 Data1+
7 Ground 8 Ground
9 Ground 10 N/C
A.8 < PS/2 Port >
The PS/2 connector supports standard PS/2 keyboard directly or both PS/2 keyboard
and mouse through for PS/2 Y-cable.
Connector: PS/2
Type: 6-pin Mini-DIN connector on bracket
Pin 1 2 3 4 5 6
Description KBCLK MSCLK GROUND VCC KBDATA MSDATA
1 8
9
1
3
5 6
4
2
