LE-37C User’s Manual
-36-
3.4
The board integrates Intel® QM87 PCH with RAID function for Serial ATA drives, and
supports the configurations below:
RAID 0 (Stripping): Two hard drives operating as one drive for optimized data R/W
performance. It needs two unused drives to build this operation.
RAID 1 (Mirroring): Copies the data from first drive to second drive for data security,
and if one drive fails, the system would access the applications to the workable drive. It
needs two unused drives or one used and one unused drive to build this operation. The
second drive must be the same or lager size than first one.
If you need to install an operation system on the RAID set, please use the driver disk
attached in the package when it informs you to obtain the RAID drivers.

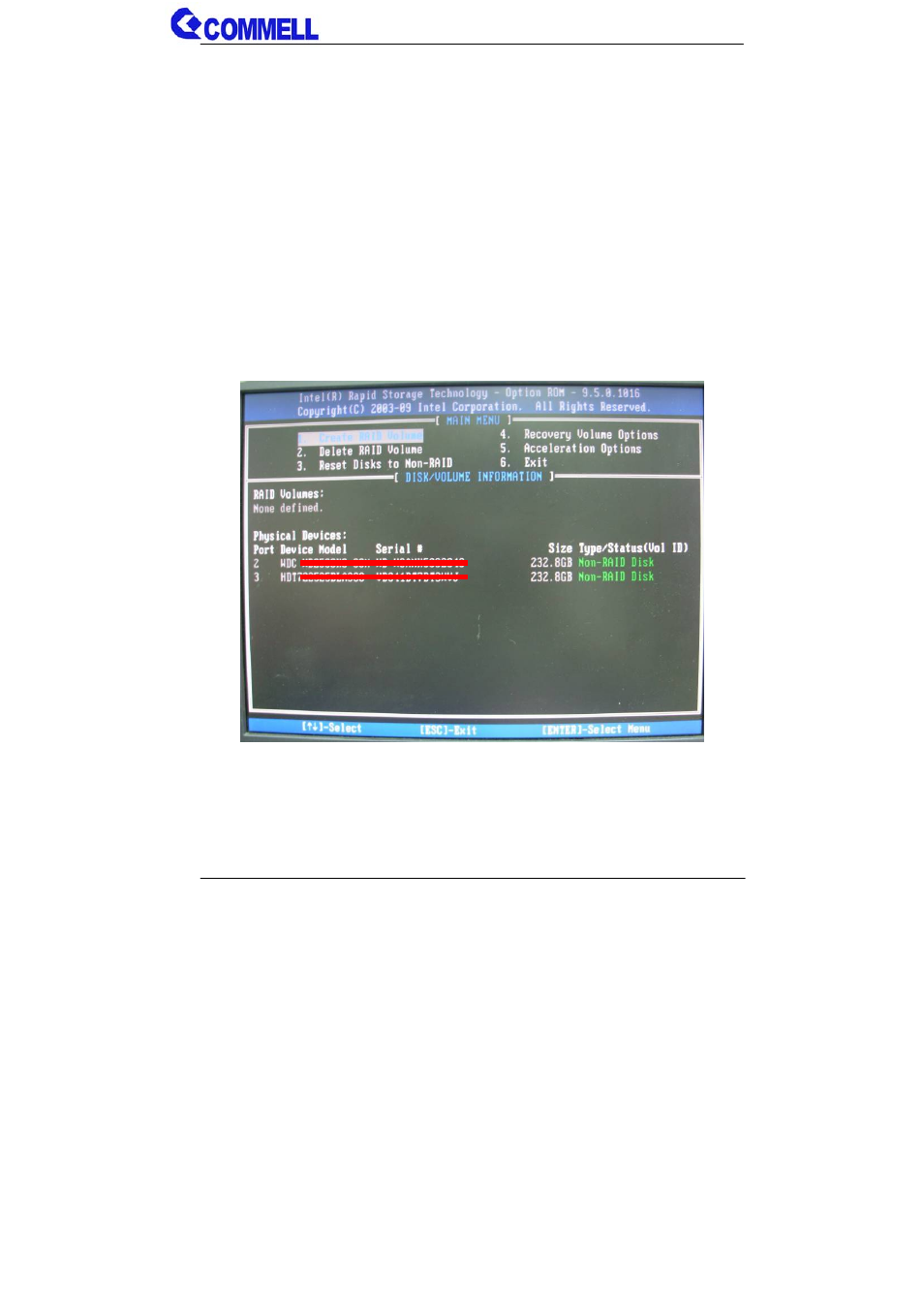

When you boot, press
If you are installing Windows 7, when the installation is complete, please install the
Intel® Rapid Storage Technology.
If you are installing Windows XP, first, you need to install the RAID driver in the
installation screen (need a floppy disk).
