COMMELL LS-570E User Manual
Page 38
LS-570 User’s Manual Hardware Setup

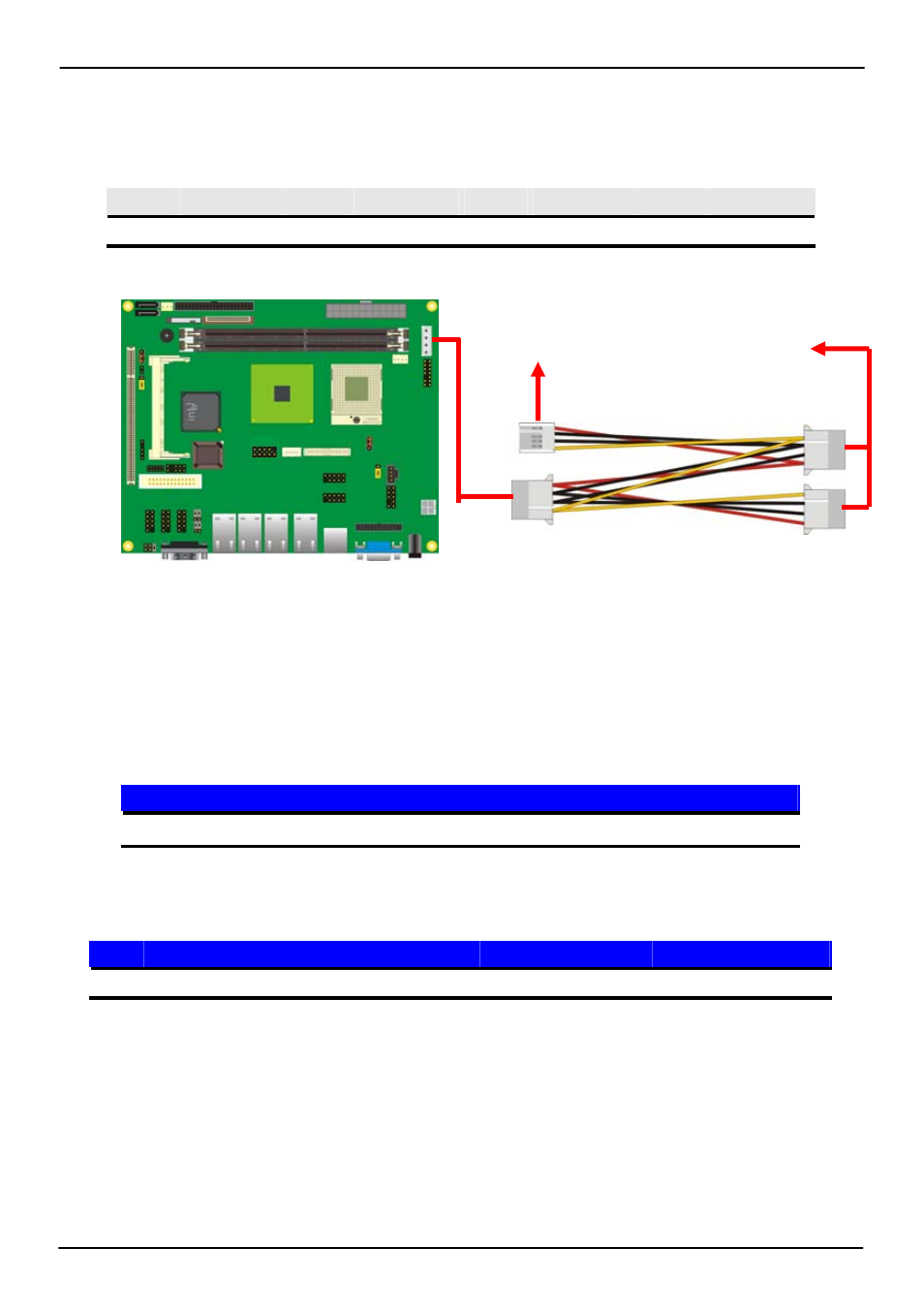

Power Output
38
2.15.2
Connector: DC_OUT
Type: 4-pin P-type connector for +5V/+12V
Pin
Description
Pin
Description
Pin
Description
Pin
Description
1 +5V
2
Ground 3
Ground 4
+12V
Note: Maximum output voltage: 12V/5A & 5V/3A
2.15.3
Connector: SYSFAN
Type: 3-pin fan wafer connector
Connector: CPUFAN
Type: 4-pin P-type connector for +5V/+12V output
Pin Description
Pin
Description
Pin
Description
Pin
Description
1
+12V
2
Ground
3 Fan Speed detect
4 Fan Control
Pin
Description
Pin
Description
Pin
Description
1
Ground
2
+12V
3
Fan Speed detect
Floppy
ATAPI Drives
Relative Accessory
