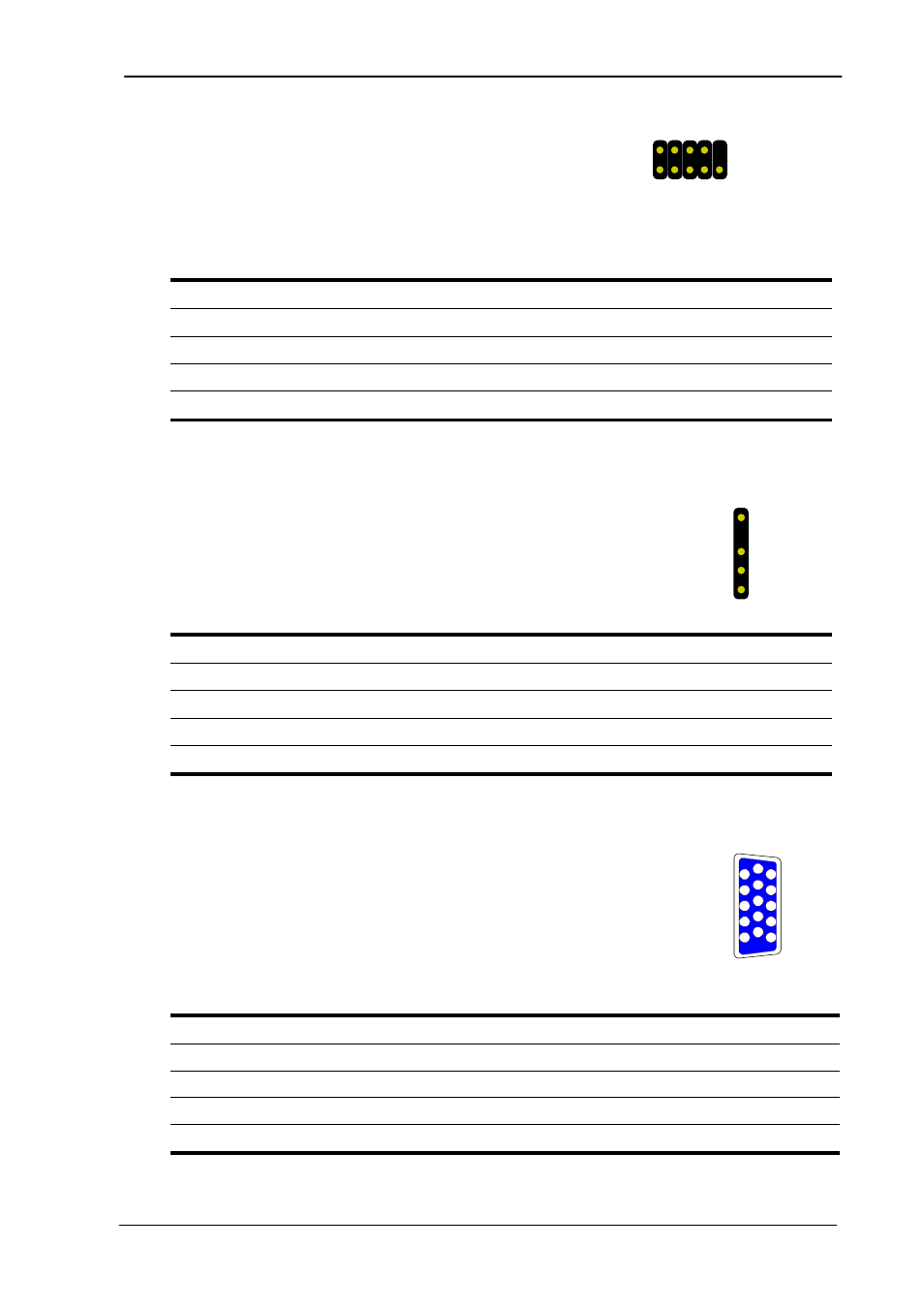

A.5 USB
Port
10
5
6
1
Connector: JUSB1, JUSB2
Type: 10-pin (2 x 5) 2.54-pitch pin header for dual USB Ports
Pin Description
Pin Description
1 Vcc
6 Vcc
2 Data0-
(Data2-) 7 Data1-
(Data3-)
3 Data0+
(Data2+) 8 Data1+
(Data3+)
4 Ground
9 Ground
5 Ground
10 N/C
A.6 IrDA
Port
1
5
Connector: SIR
Type: 5-pin (1 x 5) 2.54-pitch pin header
Pin Description
1 Vcc
2 N/C
3 IRRX
4 Ground
5 IRTX
6
10
1
2
3
4
5
11
12
13
14
15
A.7 VGA
Port
Connector: VGA
Type: 15-pin D-sub female connector on bracket
Pin Description
Pin
Description
Pin Description
1 RED
6 Ground 11 N/C
2 GREEN
7 Ground 12 VDDAT
3 BLUE
8 Ground 13 HSYNC
4 N/C
9 Vcc
14 VSYNC
5 Ground
10 Ground 15 VDCLK
HS-862 User’s Manual
37
