22

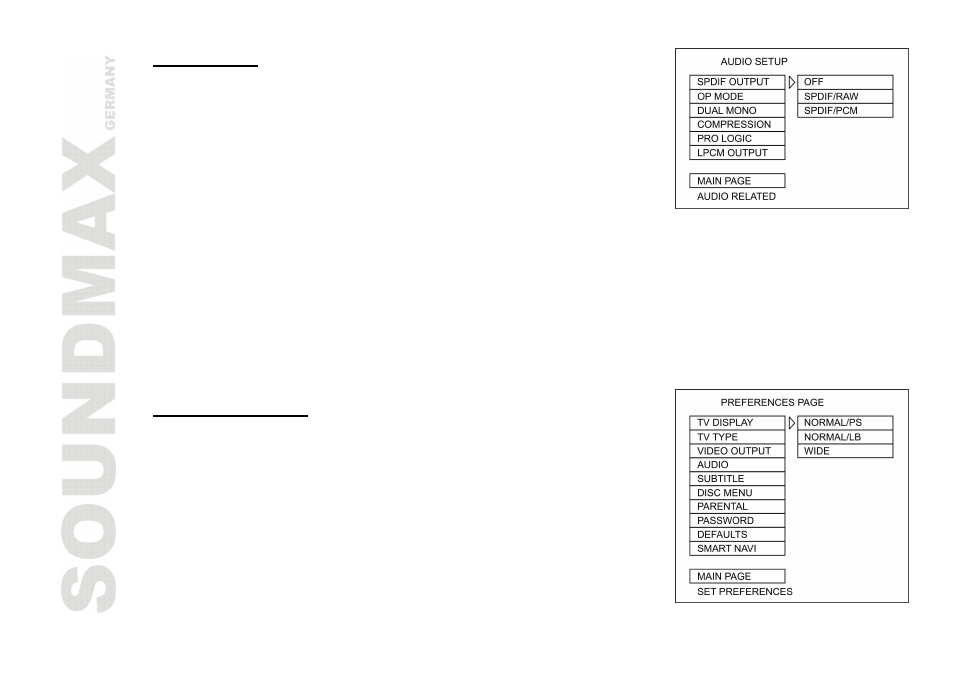

Audio setup
SPDIF OUTPUT
OFF: no digital signal out (optical or coaxial output off), only analog
audio output.
SPDIF/RAW: digital signal output in the original format recorded in
the disc.
SPDIF/PCM: digital signal output in the decoded PCM form.
OP MODE
Select the output mode: Line out, RF remod.
DUAL MONO
Stereo: stereo output signal,
L-Mono: left output signal,
R-Mono: right output signal,
Mix-Mono: left and right output average signal.
PRO LOGIC
On means 2CH music switch into 5.1CH music and can by played with multi CHs speakers while in Off
status, no effect, if a disc does not support the function, suggesting to put to the Auto position, when
playing with Dolby digital DVD, the function setting must be put on or put in auto.
LPCM OUTPUT
Select PCM frequency at 48 kHz or 96 kHz.
Preferences page
TV DISPLAY
Normal/PS: When the unit connects to the normal TV set, the
wide-screen image shows on the full screen, but some part is cut off
(4:3).
Normal/LB: When the unit connects to the normal TV set, the
wide-screen image shows and black bars appear on the top and
bottom of screen (4:3).
Wide: Use this item when the unit is connected with the wide
screen TV set (16:9).
