CARE AND MAINTENANCE
MOWER DECK INSTALLATION:
1. Loosen and remove front body mounting bolts (P/N 3368) and washers (P/N 3066).
Disconnect headlight wiring plug from wiring harness. Lift front body from chassis.
2. Install rear hanger rods on lift frame. Slide lift plate on hanger rods, small holes in
lift plate will face rear of mower, and start nylok nuts on each hanger rod until
approximately 1/2 inch of threads are exposed.
3. Position mower deck under chassis.

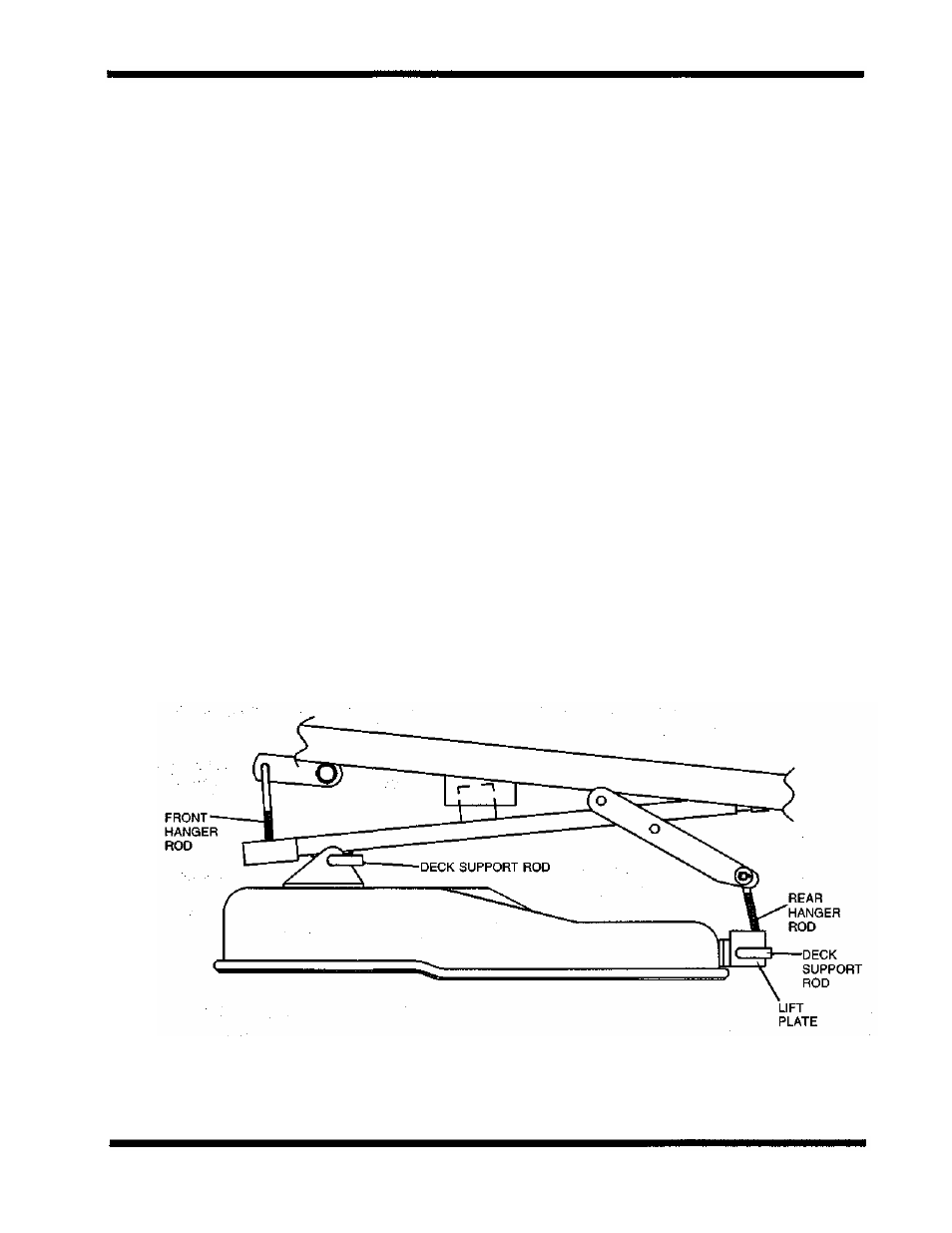

4. Raise front of mower deck and slide front support rod through lift frame and tabs on
mower deck. Install hair pin clips on front and rear of support rods.
5. Move lift lever to lowest cut position, install engine to mower deck drive belt on top
center pulley. Check belt routing after installation to make certain that belt is
centered in groove of electric clutch pulley.
6. Move lift lever toward high cut position and remove brake link from hole on lift lever.
7. Install front body, connect headlight wiring.
