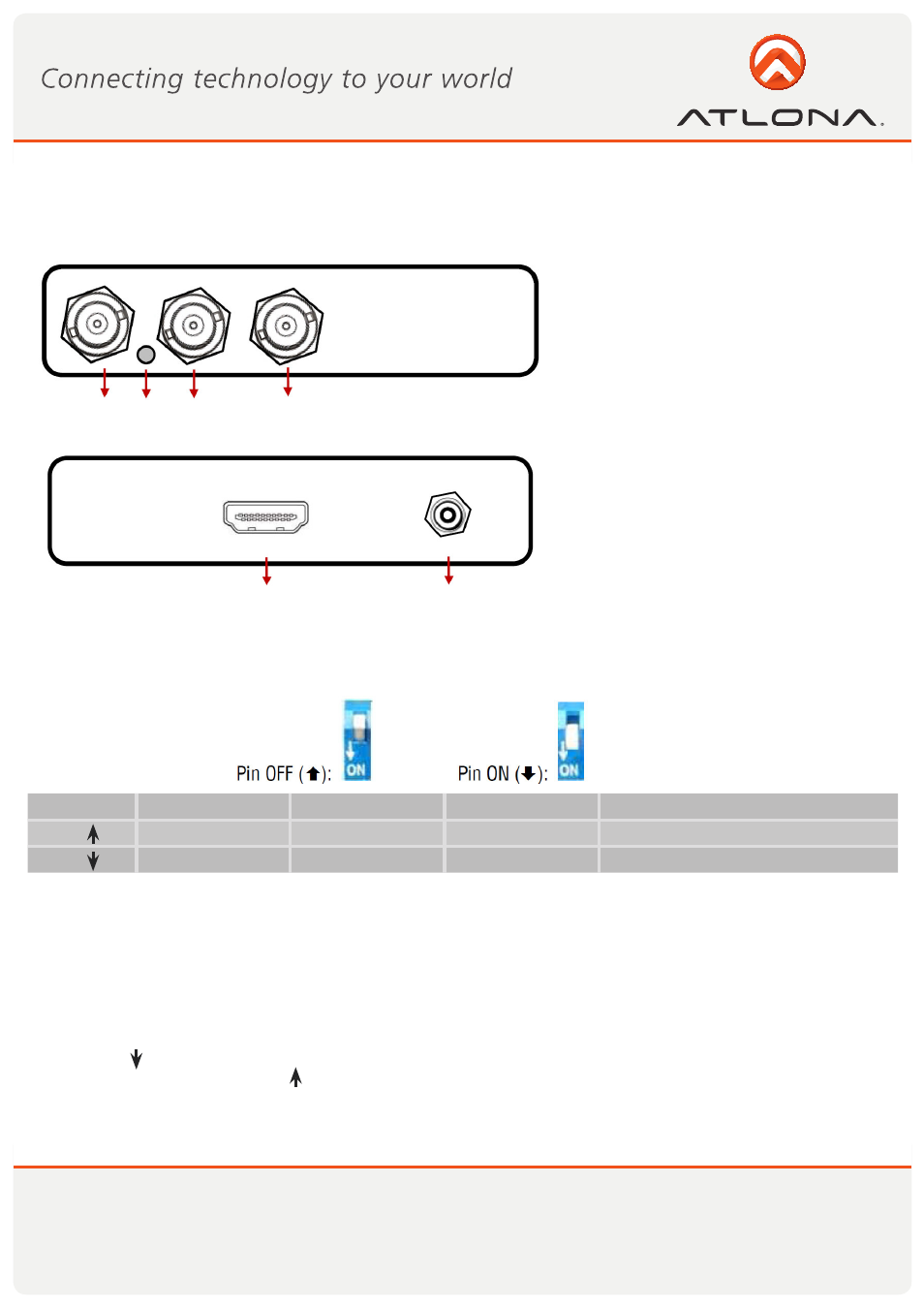

Front Panel
1. 3G/HD/SD-SDI Input
2. Lock LED
3. 3G/HD/SD-SDI Output #1
4. 3G/HD/SD-SDI Output #2
1 2 3 4
Rear Panel
1. HDMI output
2. Interlocked +5V power jack
1 2
Bottom Panel
A 4-pin DIP switch is used for user interface, and users can access this switch from the bottom of the unit. Output formats, video
patterns, SD Pedestal, SD Wide, PAL mode, YPbPr / RGB, SD component or SD composite, YC on/off etc.
Pin # 1 2 3 4
OFF ( ) DVI Mode 7.1ch Audio group 3&4 3G Level A only
ON ( ) HDMI Stereo Audio group 1&2 3G Level B auto conversion
PANEL DESCRIPTIONS
NOTICE
1. AT-3GSDI-HD mainly checks the audio channel in audio group 1&2 or 3&4. Please adjust DIP switch pin 3 for
setup.
2. Some HDMI equipped TV may not be able to decipher multiple channel audio, and therefore set DIP switch
pin-2 to ON ( ) to get stereo audio to work and then check if multiple channel support is available.
3. While DIP Switch pin-4 is set to OFF ( ) , 3G Level B will be automatically converted to Level A.
4. AT-3GSDI-HD supports only audio sample frequency 48kHz.
5. While stereo audio is chosen, CH 1 & 2 of Group 1 or 3 are output.
