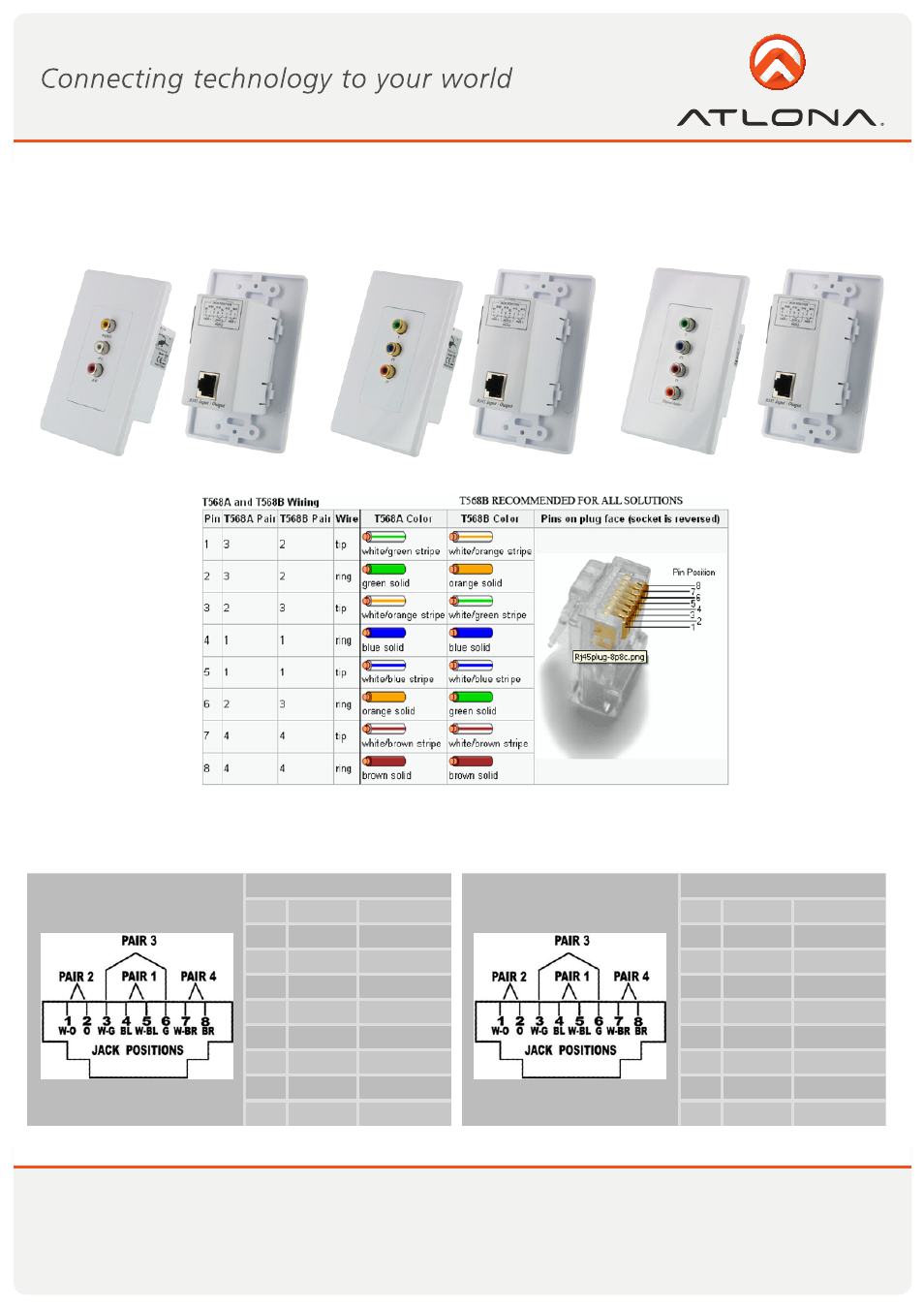

PANEL VIEW
AT-AV-SR AT-COMP-SR AT-COMPAD-SR
Front View Front View Rear View Rear View Front View Rear View
RJ-45 JACK PIN DEFINE
RJ -45 Jack
Pin Color Function
1 W-O Audio L+
2 O Audio L-
3 W-G Audio R+
4 BL X
5 W-BL X
6 G Audio R-
7 W-BR Video +
8 BR Video-
RJ -45 Jack
Pin Color Function
1 W-O Pr-
2 O Pr +
3 W-G Pb-
4 BL X
5 W-BL X
6 G Pb +
7 W-BR Y-
8 BR Y +
AT-AV-SR AT-COMP-SR
