PANEL DESCRIPTIONS

1. POWER SWITCH. The power switch turns the unit on and off. The LED will illuminate red to indicate that the

switcher is ON

2. INPUT SOURCES STATUS DISPLAY. Input sources 1 to 4 LEDs illuminate blue to indicate desired video

source is present on that input.

3. OUTPUT SOURCES STATUS DISPLAY. Output Status shows by LED display.

4. SOURCES SELECT BUTTONS. Separate outputs 1 ~ 2 source select buttons are provided. Select sources

are 1-HDMI, 2-HDMI, 3-HDMI, 4-HDMI.

5. IR SENSOR.The IR sensor receives IR commands from the supplied remote control.

6. SOURCE SETUP BUTTONS. Setup the inputs 1 ~ 4

7. 19 INCH EAR MOUNT PAIR. 19 inch case Ear Mount pair

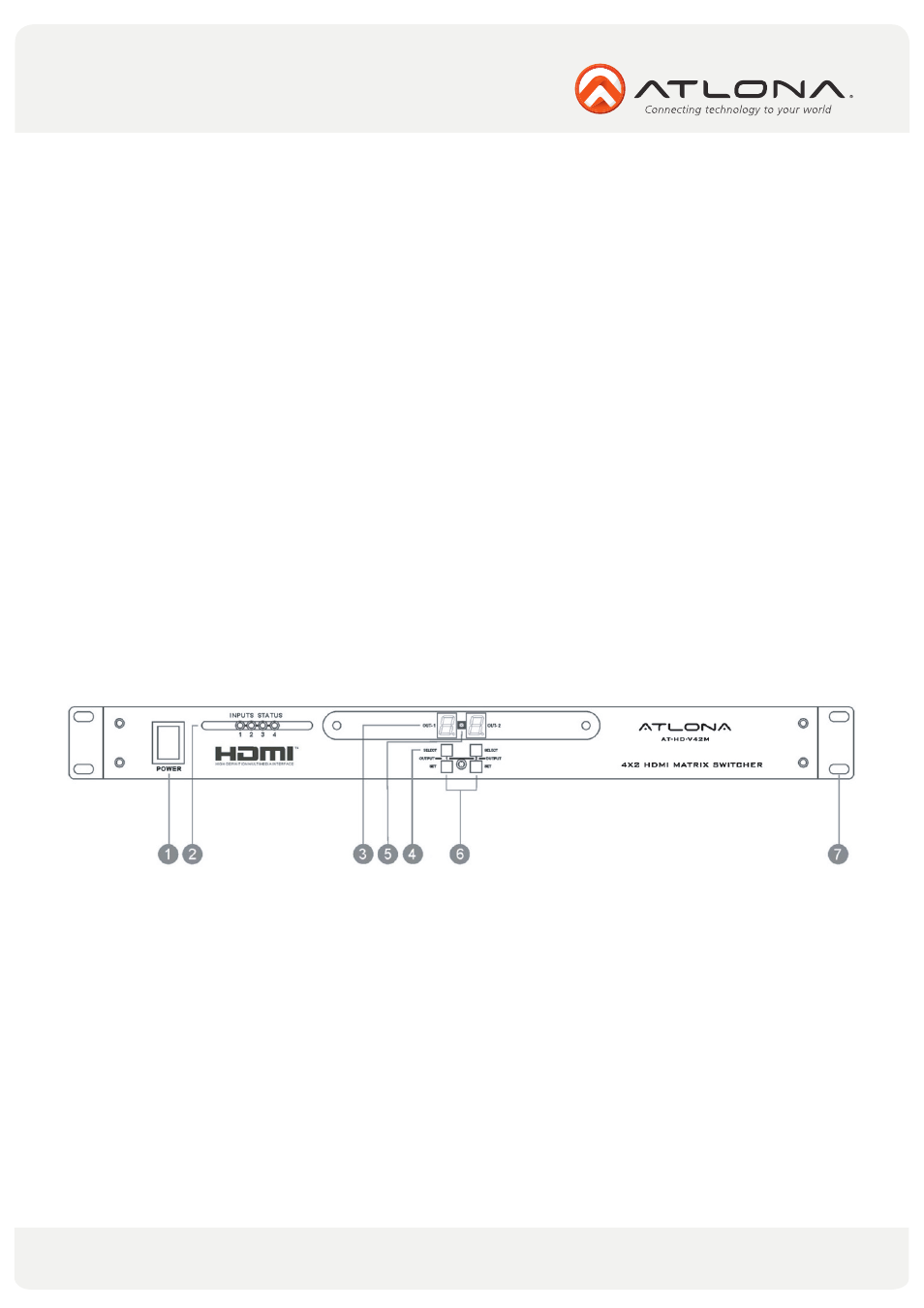

1. Front Panel

Toll free: 1-877-536-3976

Local: 1-408-962-0515

atlona.com

• 4x2 HDMI Matrix Switcher: 4 HDMI Inputs To 2 HDMI Outputs

• Input Signals: Video (TMDS) 0.5~1.0Vpp, DDC 5Vpp

• Signal Supports : HDMI Standard, DVI and HDCP Compliant

• Video Supported: HDMI formats up to 1080p or 1920x1200 and DVI UXGA 1600x1200 HD resolutions

• Audio Supported: DTS-HD Master Audio, Dolby True -HD & Dolby Digital Plus

• Supports digital video standards such as:

RGB/YCBCR: 24/30/36-bits

YCBCR: 8/10/12/16/20/24-bits

Double data rate interface for RGB/YCBCR: 12/15/18-bits

• Controls: IR, IR EXT, RS232, and Select buttons on the front panel

• Data Rates: 250Mbps to 2.25Gbps.

• IR Extender Distance: 300 meters maximum.

• IR frequency: 38KHz.

• Safety Approvals: CE, FCC, RoHS(2002/95/EC).

• Power Supply: 12V DC

• Use Universal Switch Type 50/60Hz,100~230 VAC

SPECIFICATIONS
