INSTALLATION
AT-HD19SS
Broadcasts HDMI ™ signals to 8 remote displays and one local display

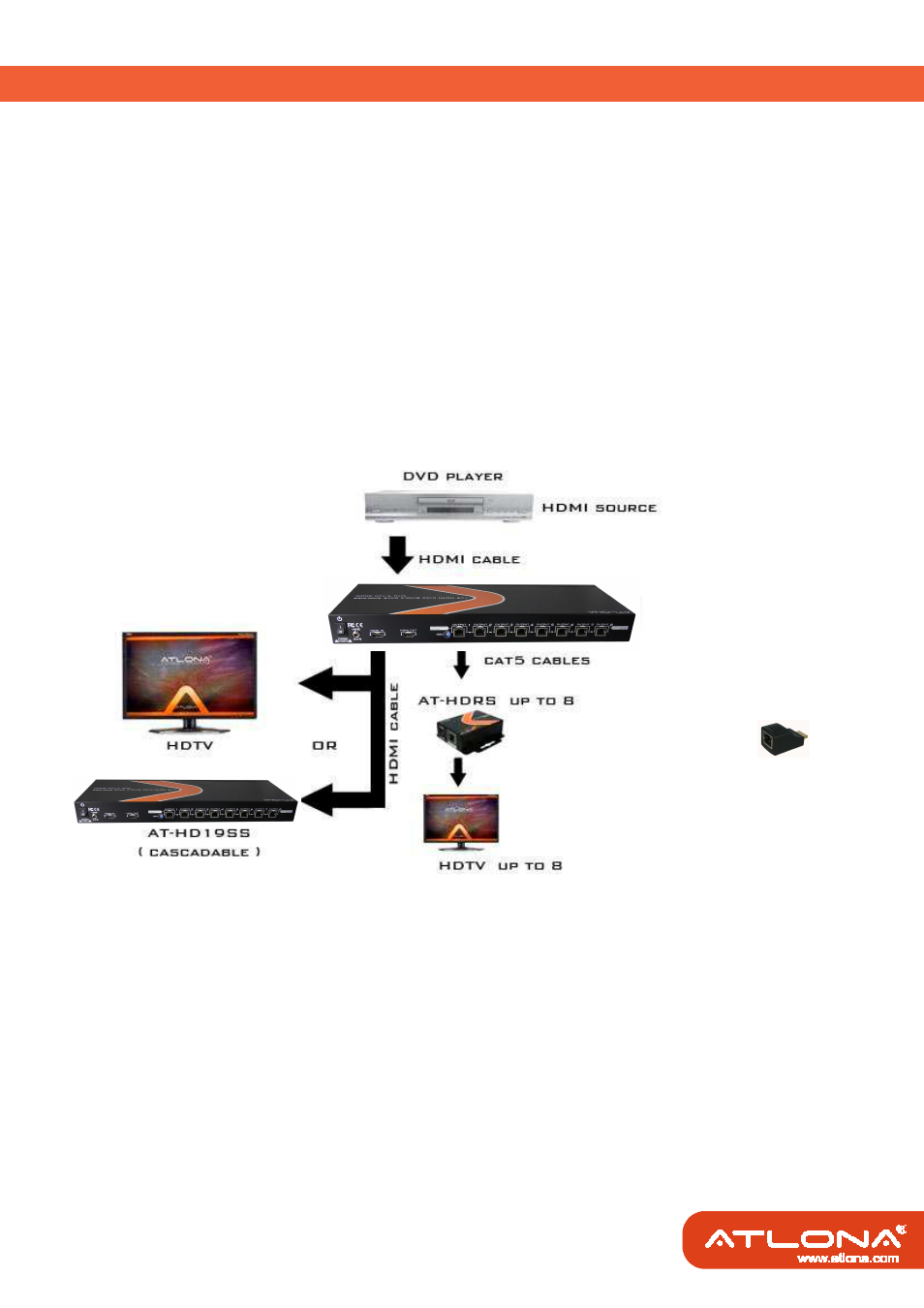

1. Switch off all devices, including monitors.
2. Connect a local HDMI ™ display to the HDMI OUT port of the AT-HD19SS
3. Connect the HDMI ™ source such as a Blu-ray Disc player to the HDMI IN port.
4. Connect to the receivers (AT-HDRS or AT-HD15SRS) via Cat-5/5e/6 cables on the RJ-45
HDMI SIGNAL OUTPUT1 ~ OUTPUT8 ports.
5. Plug in the 5V 4A DC power supply unit.
6. Power on the HDMI ™ monitors.
7. Power on the HDMI
™
source.
AT AT AT AT----HD15SRS HD15SRS HD15SRS HD15SRS
or or or or
