4

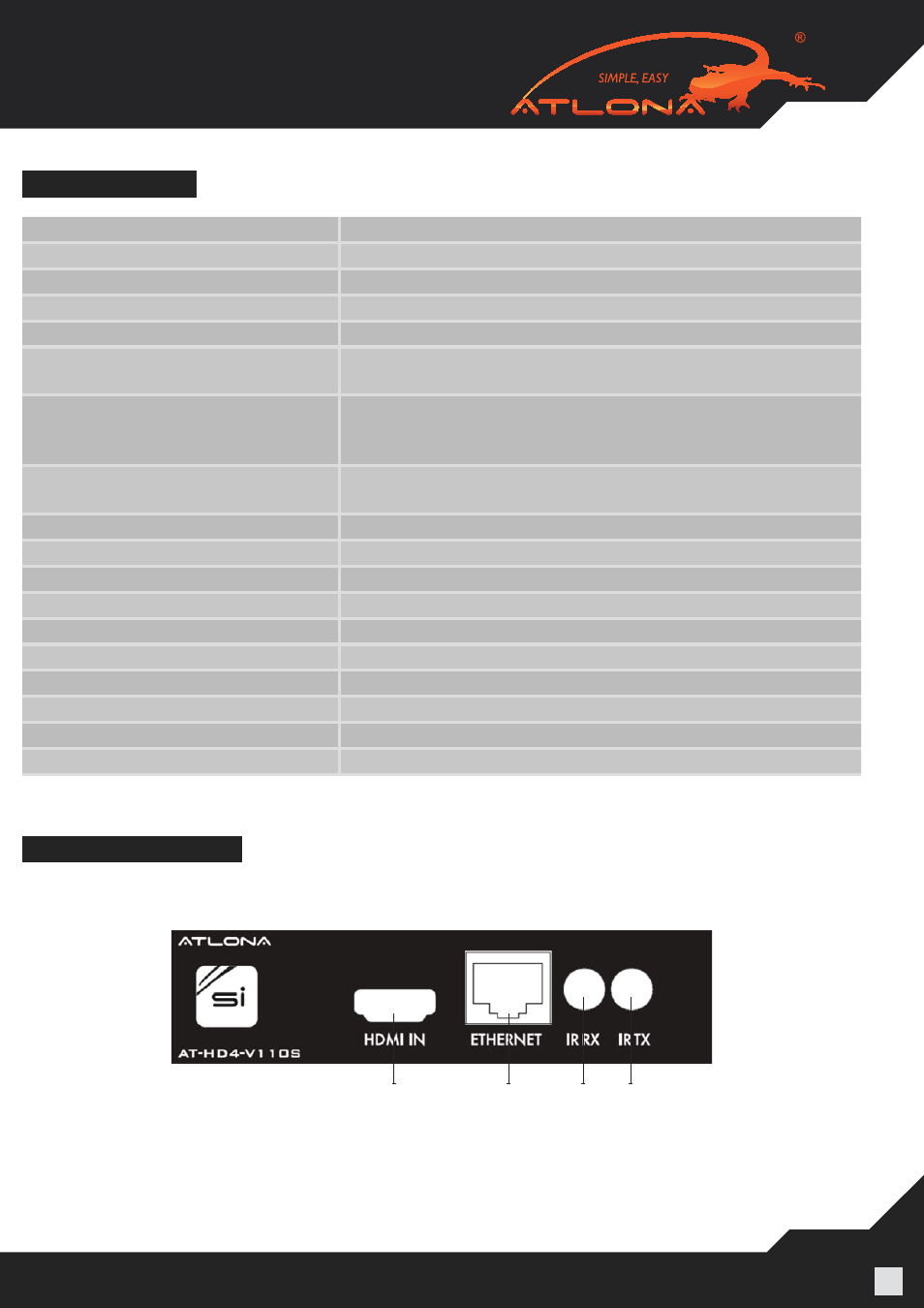

PANEL DESCRIPTION

SPECIFICATIONS:

Transmitter Inputs

HDMI (Type A), IR (1/8-inch), RS232 (DB9), Ethernet (RJ45)

Transmitter Outputs

Link to Receiver (RJ45), Ethernet (RJ45)

Receiver Inputs

Link to Transmitter (RJ45), Ethernet (RJ45)

Receiver Outputs

HDMI (Type A), IR (1/8-inch), RS232 (DB9), Ethernet (RJ45)

HDCP/EDID Compliant

Yes

Supports high resolution video HD

480i, 576i, 480p, 576p, 720p, 1080i, 1080p (24/30/50/60Hz),

2k (2048x1080p), 4kx2k 4096x2160p

Supports high resolution video VESA 640x480, 800x600, 1024x768, 1280x800, 1280x768,

1280x1024, 1680x1050, 1600x1200, 1920x1080, 1920x1200,

2048x1080p and 4096x2160p - 4 times higher than 1080p

Distance at the highest resolution

and full color depth

350ft

Deep Color

48bit up to 330ft (100m)

Power Consumption (max.)

2.5W (transmitter) and 5.5W (receiver)

Video Bandwidth

up to 10Gbps

Input TMDS signal

1.2 volts (peak-to-peak)

Input DDS signal

5 volts (peak-to-peak)

Power Supply

5V/4A (110/220 universal) – Locking Type

Dimensions (inch)

5.98×4.13×1.22 (Lx W x H)

Weight (lb)

2.1 (transmitter + receiver)

Operating Temperature Range

-5 to +35°C (-41 to +95 °F)

Operating Humidity Range

5 to 90 % RH (no condensation)

5.1. Transmitting Module

5.1.1. Front Panel

1. HDMI Input

2. Ethernet In/Out

3. IR RX

4. IR TX

1

2

3

4
