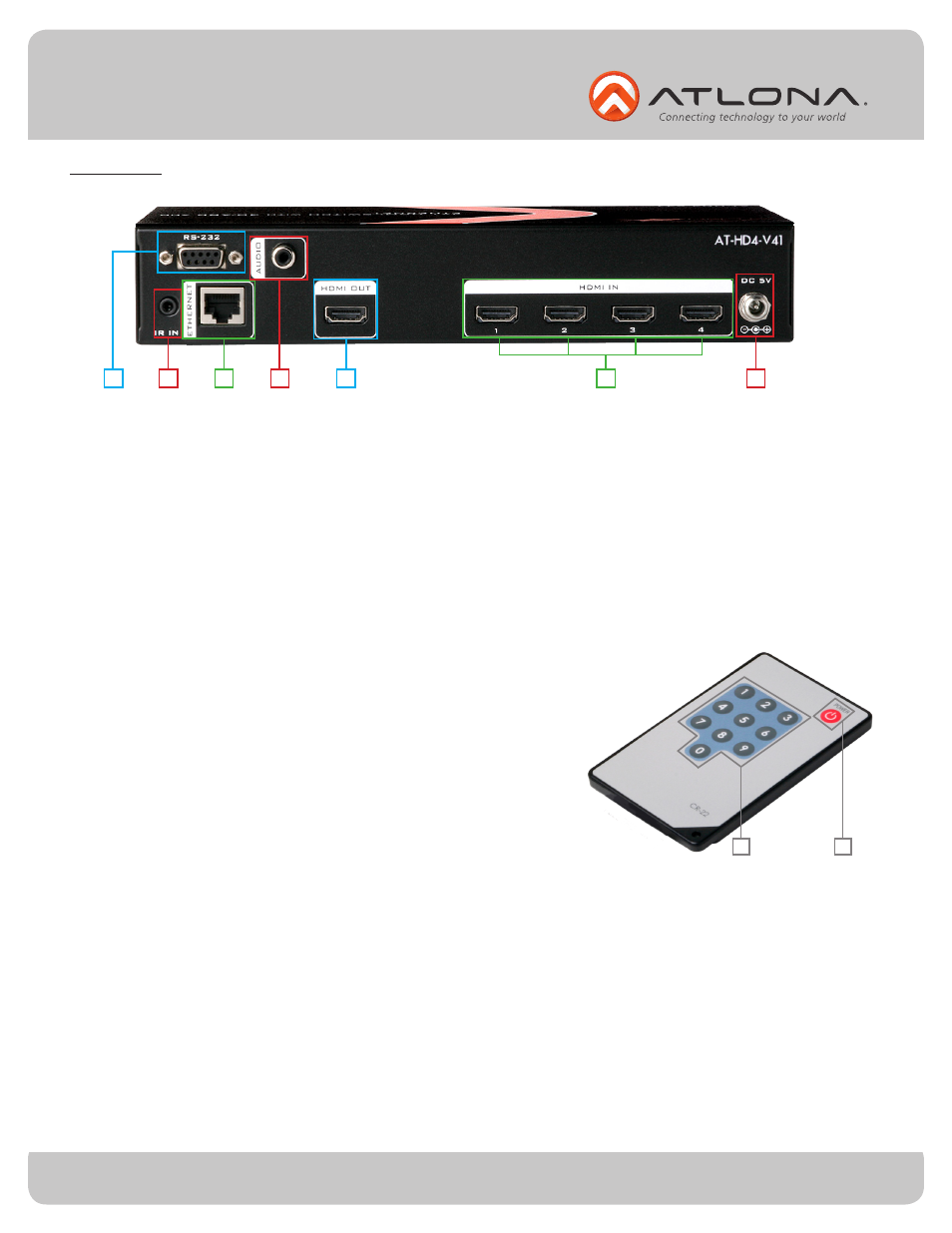

1. RS-232 serial port for PC or 3rd party control.
2. Infrared control in port for included infrared receiver module.
3. Ethernet port for HDMI Ethernet Channel (HEC) capable devices.
4. Digital (S/PDIF) output for digital audio.
5. HDMI output to display.
6. HDMI input for source components such as: DVD, PS3, Xbox360, or computer.
7. Power supply input.
1 2 3 4 5 6 7
Remote Control
B A
A. On and Off Button
B. Source selection. Press the number that matches
the source you wish to use
Back Panel
