Bandwidth frequency 10.2 Gbps
Input Ports 16 x DVI-D (female)
16 x Stereo Audio (balanced/unbalanced)
Output Ports 16 x DVI-D (female)
16 x Stereo Audio (balanced/unbalanced)
1 x RS-232
1 x Ethernet/TCP/IP
1 x 3.5mm IR
Resolution outputs Video: up to 2kx1k (2048x1080p)
Vesa: up to 1920x1200
Dimensions (HxWxD) 6.89x19.02x12.6 (inch) or 175x483x320 (mm)
Weight 15.43lbs or 7kg
Temperature -4°F to 158°F or -20°C to 70°C
Power consumption 25W
1
2
3 4 5
Panel Description
Specifications

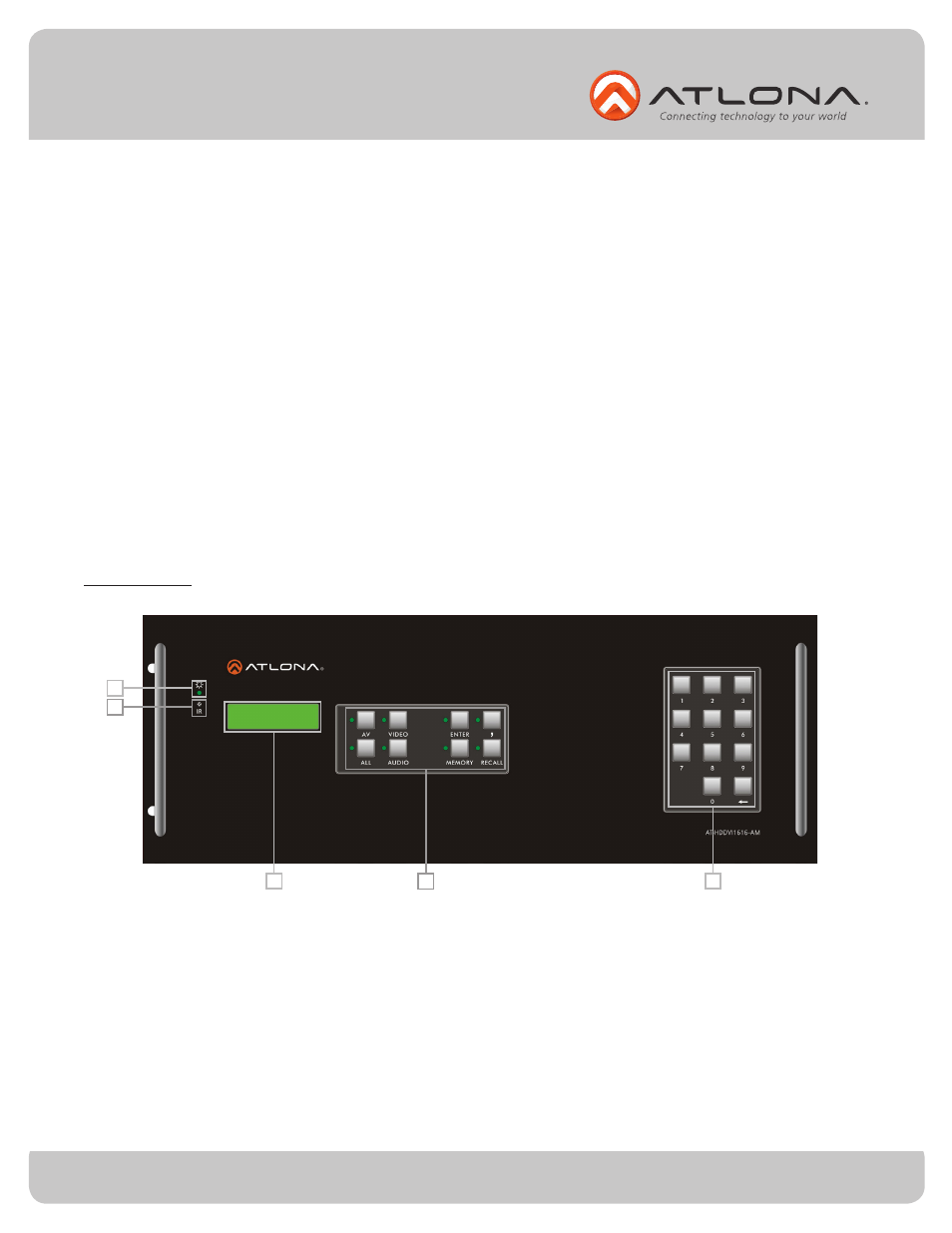

Front Panel
1. Power Indicator. Red LED will light up when power is on.
2. IR Receiver. Point your included IR remote control for the matrix switcher to receive commands
3. LCD Display. Displays commands and status messages
4. Menu for switching inputs, outputs, and functions
5. Menu for selecting inputs and outputs for your menu selections
