5. RIGGING
5).Hanging the Cabinet
4).Choosing which slot to use there are three slots in each bracket arm. use
the forward slot (as shown)when the cabinet is facing perpendicular to the
bracket mounting surface.
A.
B.
C.
D.
E.
F.

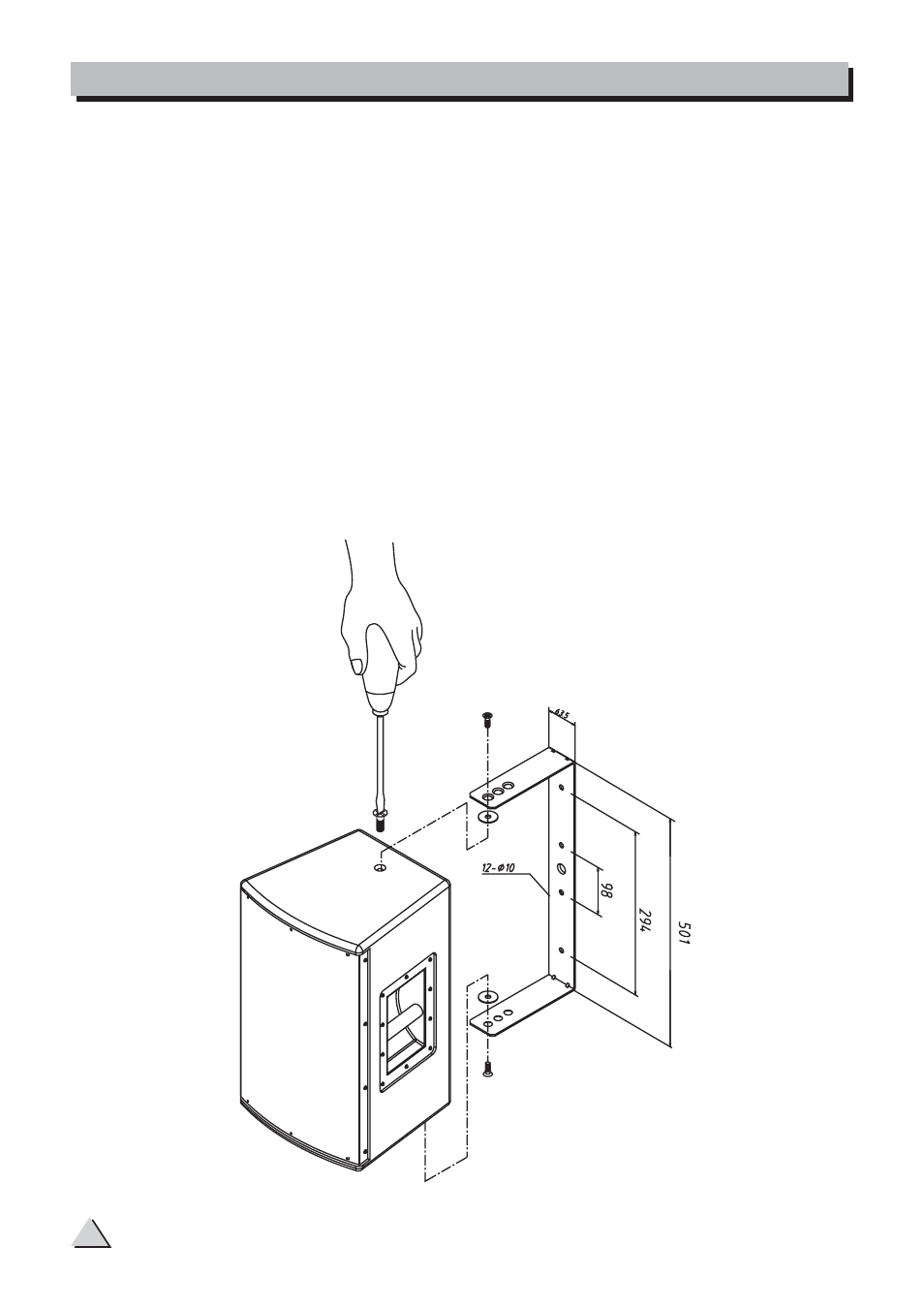

Place a neoprene gasket on the bracket's lower arm. Center it on the
appropriate slot.
Position the cabinet between the bracket arms.
Align the bracket's top slot to the cabinet's M10 threaded hole.
Holding the cabinet in position, insert the screw through the bracket slot
and into the cabinet's top threaded hole and hand tighten.
Repeat step D through the bottom bracket hole.
Position cabinet and tighten both screws with a 5mm wrench.
