5
Do not expose this machine to rain or operate the machine in damp locations.
POWER CONNECTIONS
MOTOR SPECIFICATIONS
This machine is not supplied with a power cord, and must be be permanently connected to the building electrical
system and grounded according to the National Electrical Code and/or local codes and ordinances. Since this machine
is permanently connected to the building electrical system, extension cords cannot be used with this shaper.
Permanently connected tools:
If the tool is intended to be permanently connected the tool should be connected to a grounded metal permanent wiring
system, or to a system having an equipment-grounding conductor.
GROUNDING INSTRUCTIONS
This machine is wired for 230 volt, 60 HZ alternating current. Before connecting the machine to the power source, make
sure that the switch is in the “OFF” position.
This machine must be grounded while in use to protect the operator from electric shock.
FOREWORD
Delta Model 43-460 is a 5 HP, single phase, 230V wood shaping machine. It utilizes a Poly V-belt drive system that transmits
more efficient torque to the spindle and has a capacity (under nut) of 5".
FUNCTIONAL DESCRIPTION
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the protective coating from
all unpainted surfaces. This coating may be removed with a soft cloth moistened with kerosene (do not use acetone,
gasoline or lacquer thinner for this purpose). After cleaning, cover the unpainted surfaces with a good quality household
floor paste wax.
NOTICE: The manual cover photo illustrates the current production model. All other illustrations are
representative only and may not depict the actual color, labeling, or accessories.

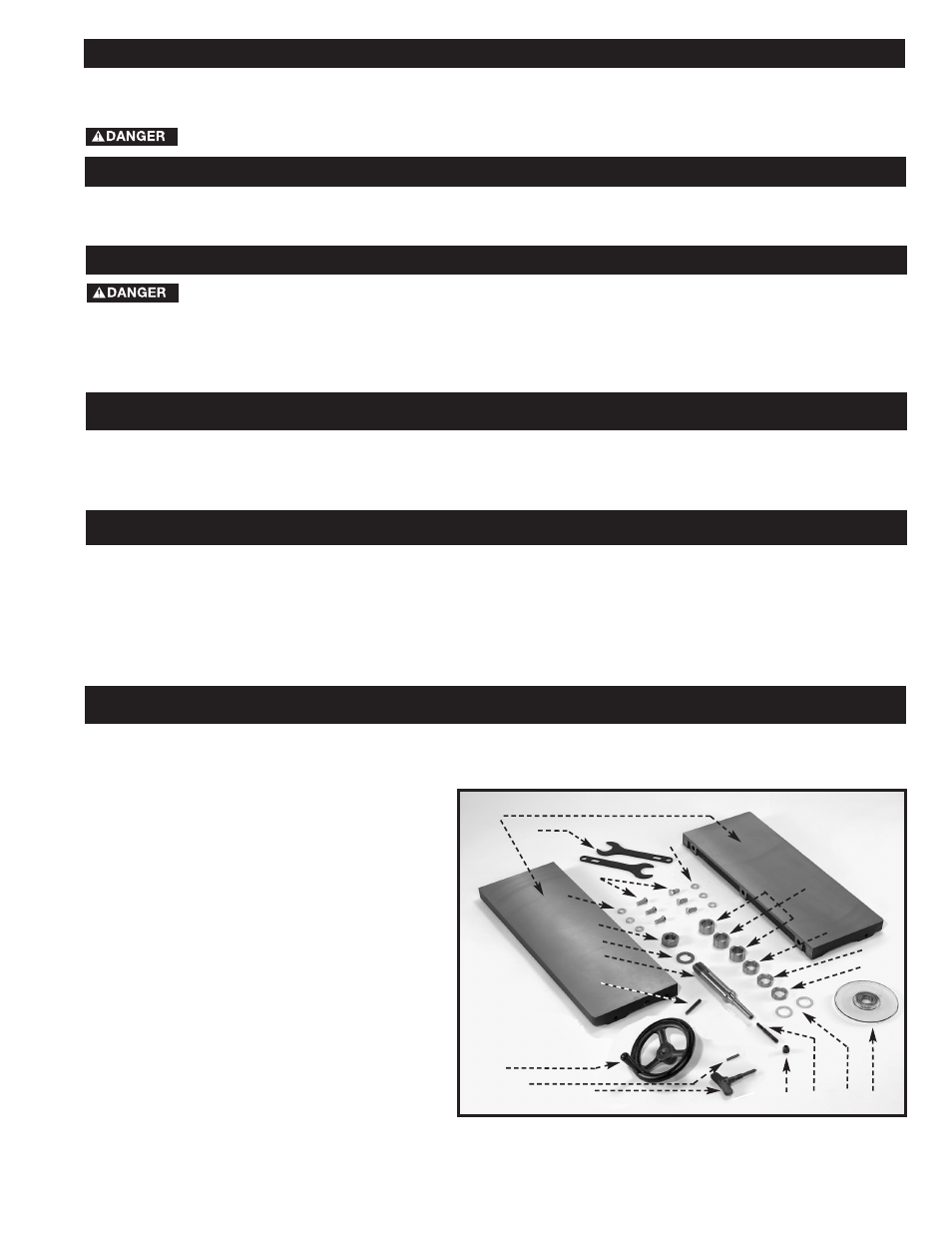

CARTON CONTENTS
2
4
3
13
14
12
11
10
9 8 18 17
6
7
5
19
15
16
4
1
1. 10" Wide Cast Iron Extension Wings (2)
2. Wrenches (2)
3. 7/16-20 x 1" Hex Head Screws (6) for
mounting extension wing
4. Flat Washers (6) for mounting extension wing
5. Handwheel
6. Key for Handwheel
7. Lock Knob
8. Spindle Guard
9. 1-1/4" I.D. Washer (2)
10. 1-1/4" I.D. x 3/8” Thick Collar
11. 1-1/4" I.D. x 1/2” Thick Collar
12. 1-1/4" I.D. x 5/8” Thick Collar
13. 1-1/4" I.D. x 1” Thick Collars (3)
14. Spindle Nut
15. Keyed Washer
16. Spindle
17. Tie Rod
18. Tie Rod Nut
19. Starting Pin
