D DV VD D— —U UN NM MO OU UN NT TE ED D

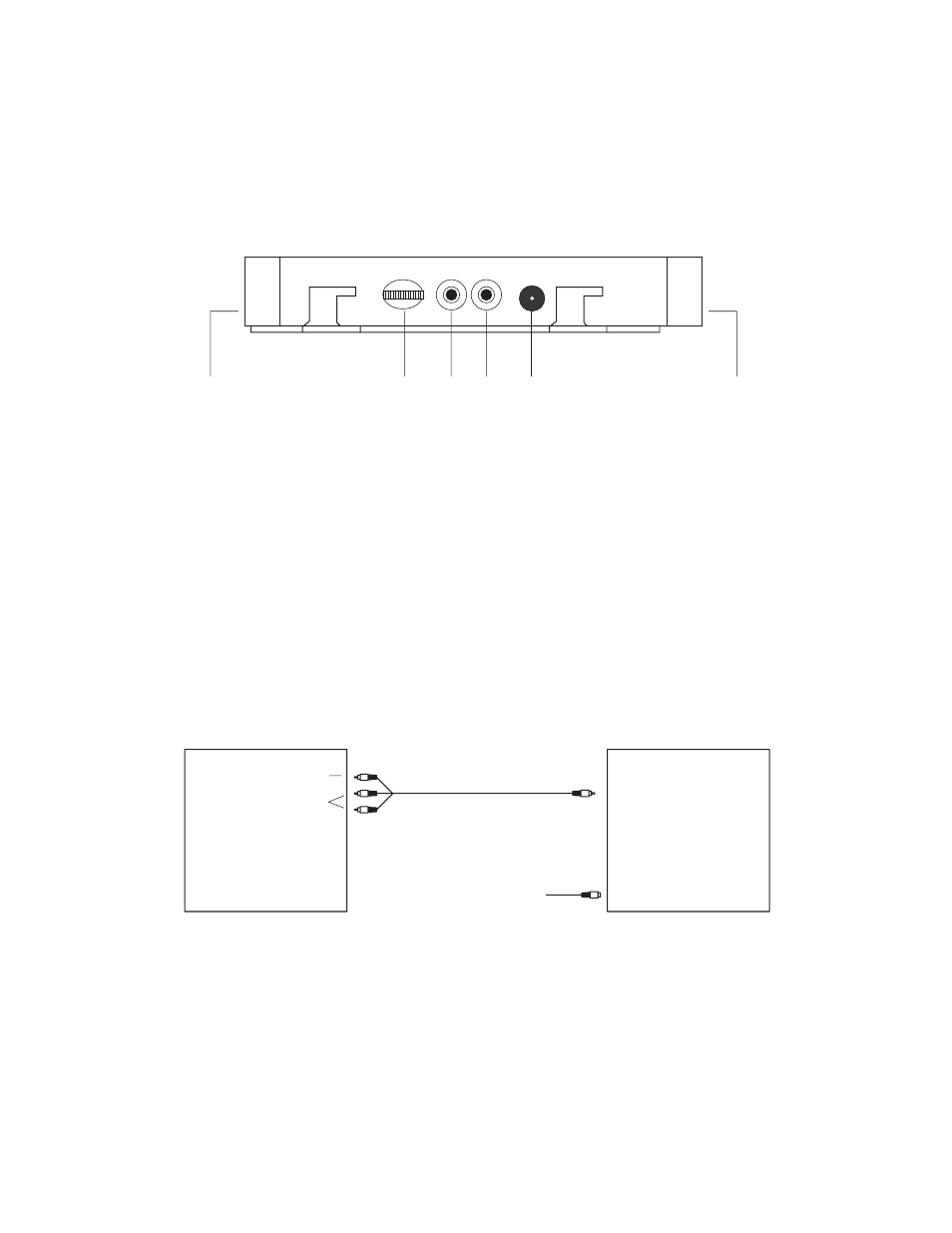

The illustration below shows the side of the DVD player when removed from the LCD monitor.
1. Electrical connector—This connector provides the electrical interface when mounted in the LCD
monitor.
2. VOL Control—Controls the volume to the phone jack output.
3. PHONE Jack—An optional headphone set can be connected here.
4. A/V OUT Jack—Audio/video output jack.
5. DC 12V Jack—Input power from the AC/DC converter.
6. IR Receiver—For receiving commands from the remote control.
D DV VD D P PL LA AY YE ER R W WIIR RIIN NG G– –E EX XA AM MP PL LE E
12VDC
TV or
VCR
Removable DVD
Player
DV-POD
A/V OUT
VIDEO
AUDIO
VOL PHONE A/V OUT
DC 12V
1 2 3 4 5 6
