Delta (Model 31-695) User Manual
Page 7
7

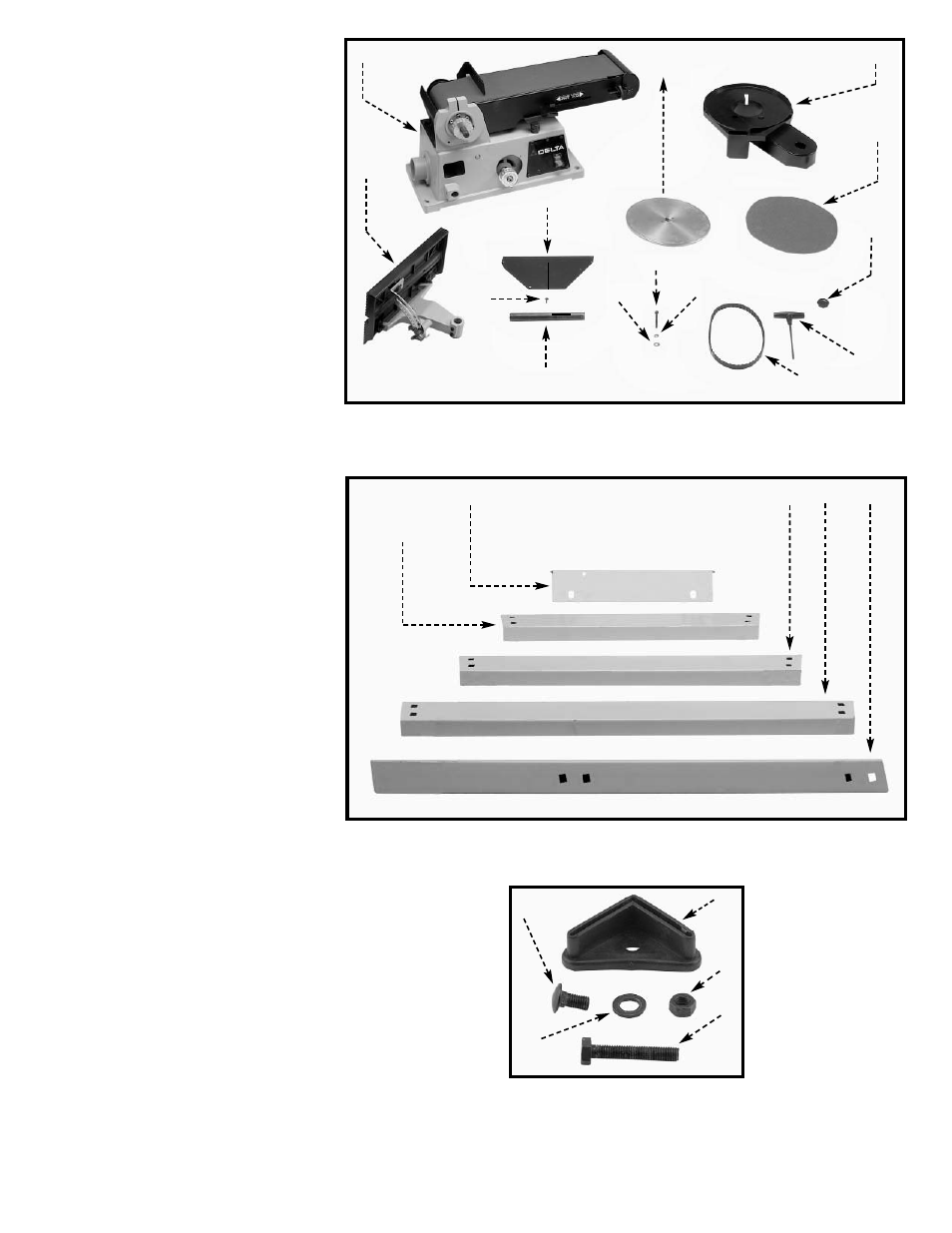

Fig. 2
1.
Sander with 6" x 48" Sanding
Belt and Backstop
2.
Sanding Disc Plate
3.
Belt and Pulley Cover
4.
9" Sanding Disc
5.
Plug
6.
T-Wrench
7.
Drive Belt
8.
M6 x 55mm Hex Socket Head
Screws (2)
9.
M6.4 Flat Washer (2
10.
M6.4 Lockwasher (2)
11.
Disc Cover
12.
M4.2 x 13mm Panhead
Screws (3)
13.
Support Rod
14.
Table Assembly
1
2
3
4
5
6
7
8
9
10
11
12
13
14
A
Two Upper
Front and Rear Braces
11-1/2" long
B
Two Lower
Front and Rear Braces
17-1/8" long
C
Two Upper
Side Braces
21-5/16" long
D
Two Lower
Side Braces
26-5/8" long
E
Four Legs
27-1/2" long
Fig. 3
E
A
B
C
D
F
G
H
J
K
F
Plastic Feet (4)
G
M8 Hex Nuts - (36)
H
M8 x 45mm Hex Head
Screws (4)
J
3/8" Flat Washers - (40)
K
M8 x 20mm Carriage Bolts -
(32)
