User’s guide, Remote comfort control

REMOTE

COMFORT CONTROL

USER’S GUIDE

MOD

MODE

10:00

AUTO

°F

MODE

10:00

°F

AUTO

CLOCK

TIMER

SET

SLEEP

I FEEL

ROOM

F°/C°

Clock

Timer

Room

Set

I Feel

Sleep

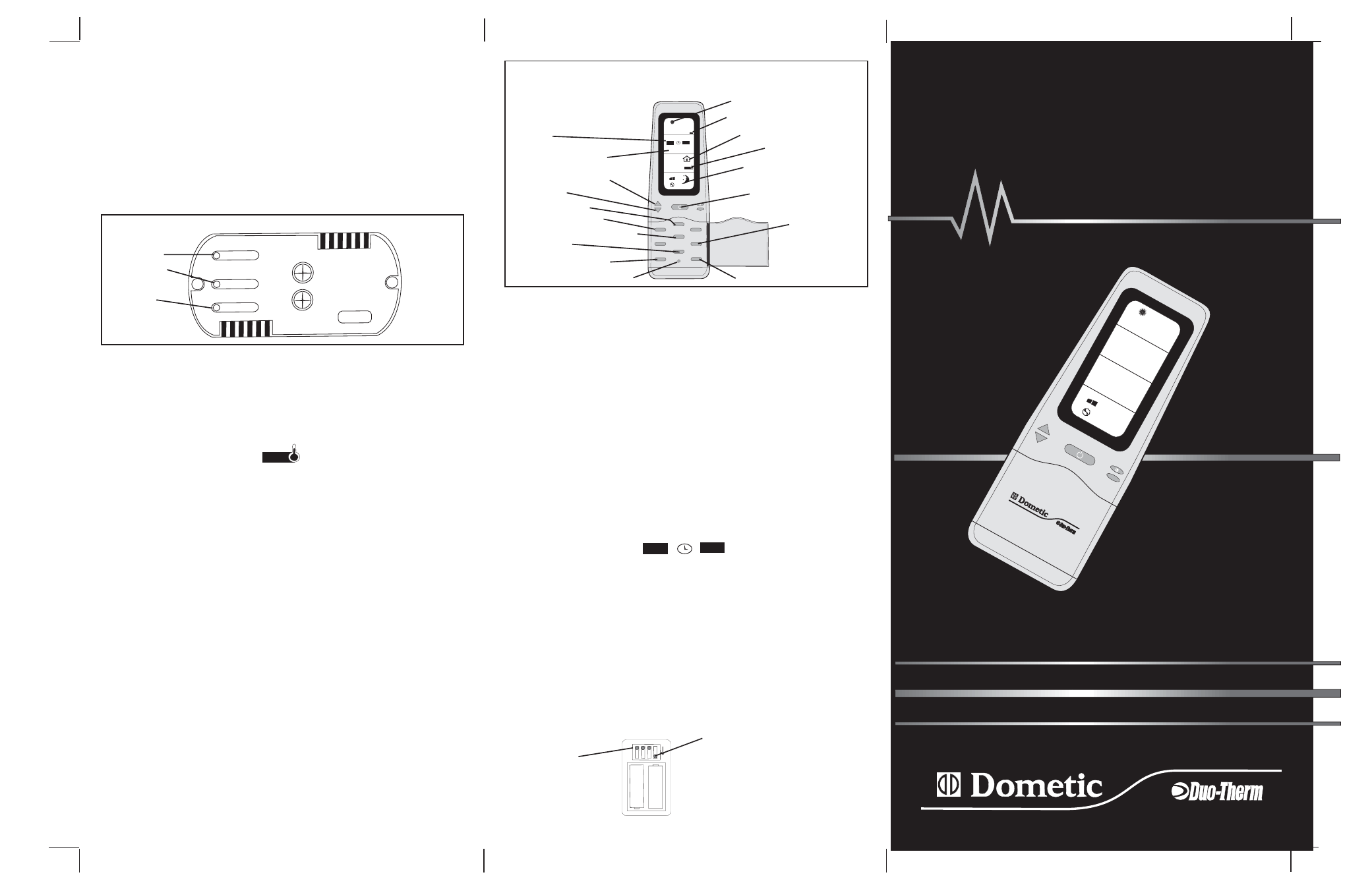

REMOTE CONTROL

(w/door open)

Clock Display

UP (+)

Down (-)

Reset Button

Room Temperature

10:00

OFF

Timer ON/OFF
Display

Sleep Display

Operation Mode
Display Window

I FEEL

I Feel Display

Orange
ON/OFF Button

F°/C° Button

Low Battery

Furnace

Timer

Unit On

Cool

Heat

RECEIVER

Orange LED

Green LED

Red LED

SYSTEM OVERRIDE
1. This is useful in the event the remote batteries are low or the remote is misplaced.
2. System Override - Cooling Operation

a. Push the “Cool” button on the receiver.
b. System goes to the cooling mode with a set point of 74 °F. and the Green LED will

blink.

System Override - Heating Operation (if connected to furnace)
a. Push the “Heat” button on the receiver.
b. System goes to the “heat” mode with a set point of 68

•

First option: Electric heat-the control system will automatically choose this op-

tion, the Green Led will glow steady.

•

Second Option: Furnace-The furnace option is chosen if an electric heat strip is

not available. When in this option the Red LED will blink and the Green LED will glow
steady.

Note: LED’s will glow and flash even if the system is cooling only.
4. The system can be turned “OFF” by pushing the same button (cool/heat) a second

time.

“I FEEL” OPERATION
1. The cool, heat, furnace or auto change mode must be selected.
2. Set the temperature at the desired level, and push the “I Feel” button. The “I FEEL”

symbol will appear on the display and a beep will sound indicating that the unit is in “I
FEEL” mode.

I FEEL

3. The hand held remote becomes the temperature sensor and must be positioned to

send updated signals to the receiver every four minutes.

4. The temperature can be adjusted to the desired level from the remote for its specific

location.

Note: If the remote is placed in a location where the receiver cannot locate a signal for 16
minutes, the system will ignore the hand held remote and retain the last set-point.
Note: The remote should not be placed in an area that is warmer or colder than the rest of
the living space (direct sunlight or air conditioner discharge drafts).

FAHRENHEIT/CELSIUS TEMPERATURE DISPLAY
1.

Locate the F°/C° Button under the door of the hand held remote. Push the button to
display Fahrenheit (F°) temperature reading or press again to display Celsius (C°)

REMOTE RESET
1.

The “Reset Button” is located on the hand held remote under the door below the
“Set Button”. Depress this button to delete all setting programmed into the control.

TIMER OPERATION
Note: Every time the clock or timer button is pressed, the display will blink for 15
seconds giving the operator enough time to change settings. If no changes are made in the
15 second time period the timer display will disappear.
Note: Any mode that uses the clock/timer function of the hand held remote will be disabled
if the line of sight communication between the remote and receiver are non existent
(putting the remote in a drawer).
1.

Setting The Clock

a. When new batteries are installed, the clock will display 0:00.
b. Clock shows only military time.
c. Push the clock button , the clock display should blink.
d. Press and hold the “UP(+)” or “DOWN (-)” button to set the clock.
e. Press the “SET” button on hand held remote.

Note: When the set button is depressed be careful not to push the reset button at the
same time. All previous setting will be lost and need to be reentered.

2. Setting The Timer to “ON”

a. Press the “timer” button and the timer “ON” clock will appear and blink.
b. Set timer by pushing and holding the “UP(+)” or “DOWN (-)” buttons.
c. Point hand held remote at the receiver and press the “SET” button.
d. Receiver should beep and the Orange LED illuminate (if unit is off).

Note: When timer “ON” mode is activated the unit will turn “ON” in the last selected mode
of operation. See TIMER OPERATION.
3. Setting The Timer to “OFF”

a. Press the “timer” button twice and the timer “OFF” clock will appear and blink.
b. Set timer by pushing and holding the “UP(+)” or “DOWN (-)” buttons.
c. Point hand held remote at the receiver and press the “SET” button.
d. Receiver should beep and the Orange LED illuminate (if unit is on).

Note: When timer “Off” mode is activated the unit will turn “OFF” when the clock & timer
match. See TIMER OPERATION.
4. Setting The Timer to “ON” &“OFF”

a. Press the “timer” button three times and the timer “ON” clock will blink and “OFF”

clock will be visible.

b. Set “ON” timer by pushing and holding the “UP” or “DOWN” buttons, then push

the timer button again and the “OFF” will blink. Press and hold “UP (+)” or
“DOWN (-)” to set “OFF” time.

08:00

20:00

OFF

c. Point hand held remote at the receiver and press the “SET” button.
d. Receiver should beep and the Orange LED illuminate (if unit is on).

Note: The Orange LED will light indicating the timer schedule is active. The unit will cycle
on and off in the last mode selected. See TIMER OPERATION.

CONFIGURATION OF REMOTE
The Hand Held Remote when shipped from Dometic is always programmed as a cool/
furnace model. The dip switches are located in the hand held remote battery compartment.
If the control is to be used with the electric heat strip or without the furnace its configuration
must be changed as follows:

Cool/furnace operation: Dip switches 1,2,& 3 "ON" - dip switch 4 "OFF".

Cool Only-no heat operation: Dip switch 1 & 3 "ON" - dip switches 2 & 4 "OFF".

Cool/Heat operation: Dip switches 1,2,3, & 4 "ON" -no dip switches "OFF".

Note: After the remote switches are changed press the reset button and
reenter clock and timer settings.

BATTERY COMPARTMENT

J1 J2 J3 J4

OFF

Dip Switches
"ON"

Dip Switches "OFF"

LBO231-REV B

REVISION

Form No. 3308571.029 12/04
