MODULE FEATURES

• external effects adaptor

• audio input & output

interface

• versatile envelope follower

with 2 wide ranges of
operation and low cut filter

• voltage comparator with

hysteresis circuit

• soft clipping option

• internal normalizations

• reversed power protection

TECHNICAL DETAILS

• eurorack standard

compliant

• 8 hp wide

• 25 mm deep (skiff friendly)

• +12/-12V powered

• current draw: 40 mA

APPROVED

BY THE PEOPLE’S

COUNCIL FOR MUTUAL

ECONOMIC AID

WARRANTY INFORMATION•xaOc dEvicES warranTS THiS PrOducT TO BE frEE frOm anY cOnSTrucTiOn dEfEcTS fOr OnE YEar

FROM THE DATE OF PURCHASE. DURING THAT PERIOD ANy MALFUNCTIONING UNITS WILL BE REPAIRED, SERVICED AND CALIBRATED WITH0UT

cuSTOmEr cOvEring THE aPPrOPriaTE TranSiT fEES•warranTY dOES nOT cOvEr anY PrOBLEmS rESuLTing frOm THE incOrrEcT in-

STaLLaTiOn Or vOLTagE SuPPLiEd, aBuSivE TrEaTmEnT Or anY OTHEr OBviOuS uSEr-infLicTEd fauLT•wE arE STiLL HaPPY TO HELP afTEr

THE warranTY PEriOd iS OvEr, HOwEvEr wE rESErvE THE rigHT TO cHargE fOr LaBOr, rEPLacEmEnT ParTS and TranSiT cOSTS•in

caSE Of anY PrOBLEm wiTH YOur mOduLE PLEaSE cOnTacT uS immEdiaTELY: [email protected]•

XAOC SALUTES•muff

wiggLErS, BrandOn SmiTH, Our awESOmE diSTriBuTOrS, mOduLarnE.infO, friEndS & cOmradES wOrLdwidE•aLL rigHTS rE-

VISIT

XAOCDEVICES.COM

FOR UPDATES, MANUALS, TUTORIALS AND PARAPHRENALIA

MIXER

INSTRUMENT

FX SEND

EXPORT

FX RETURN

IMPORT

EXPORT

FOLLOWER IN

COMPARATOR IN

IMPORT

ENVELOPE OUT

TRIGGER OUT

GATE OUT

EXPORT

ATTENUATOR

HIGH PASS FILTER

(SEL. OFF TO ByPASS)

HySTERESIS CIRCUIT

(JUMPER SELECTED)

ENVELOPE FOLLOWER

(2 RANGES RELEASE JUMPER SEL. )

COMPARATOR

(ADJUSTABLE THRESHOLD)

IMPORT PREAMP

(SOFT CLIP JUMPER SEL.)

from modular

to modular

line input

normalled (patch sth. to break it)

“dry” signal

“wet” signal

normalled (patch sth. to break it)

line output

external effects chain

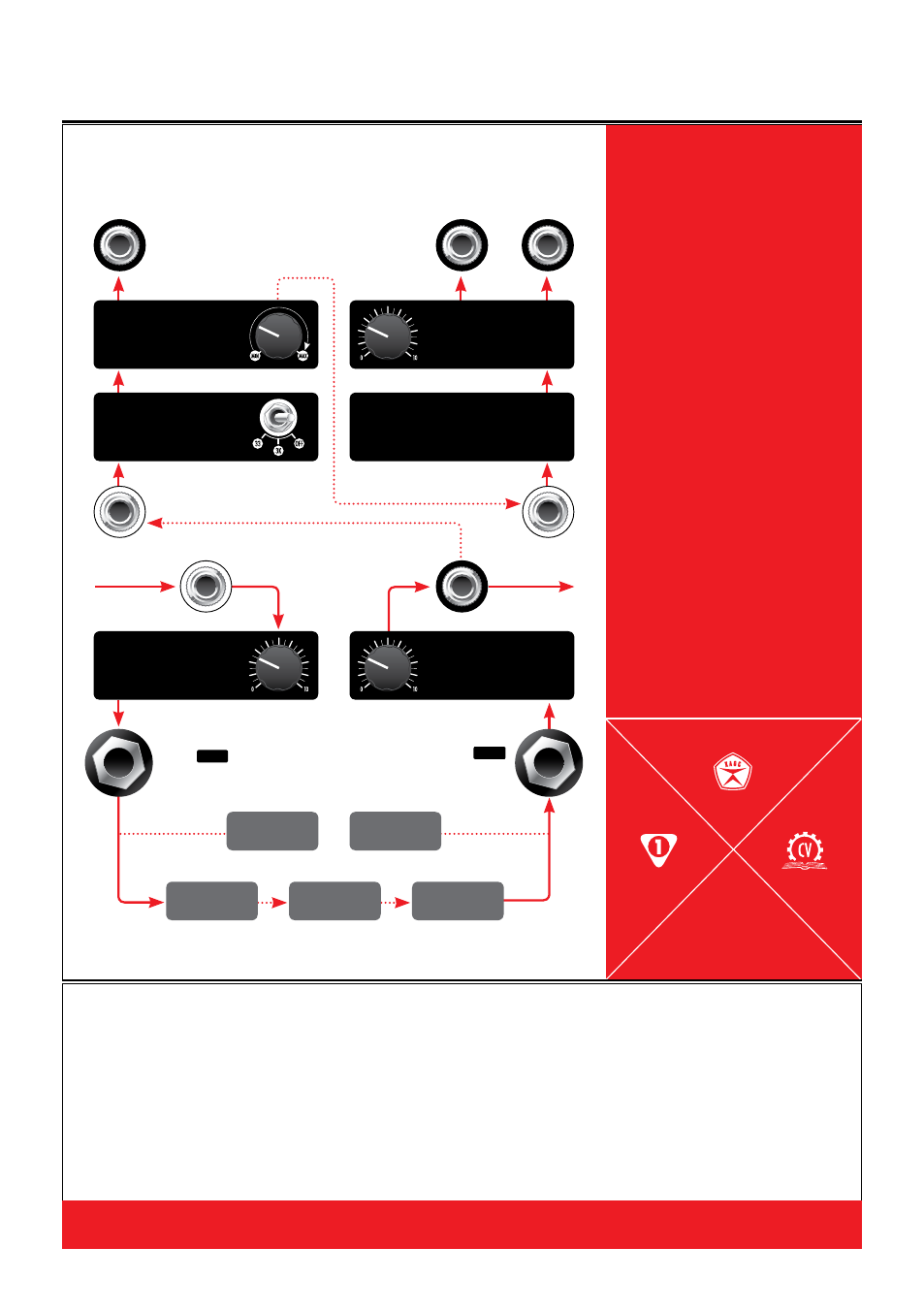

SIGNAL FLOW CHART

(upwards)
