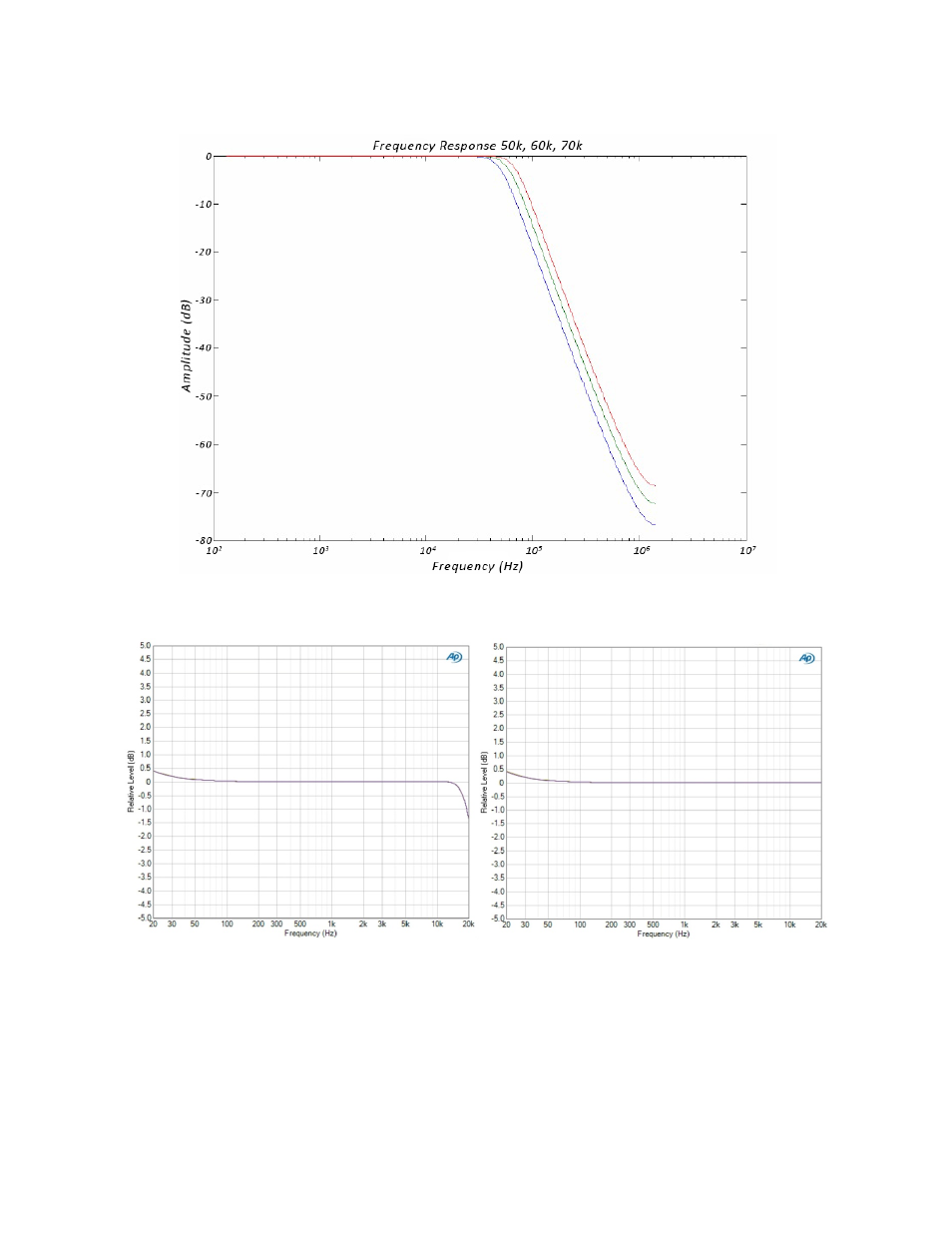

The IIR Bandwidth setting configures the roll-off frequency for DSD files. Please see chart below where the 50K
setting is shown in blue, 60K is shown in green, and the 70K setting is shown in red. This setting is only applicable
with the DSD and DSDse models which support DSD.
The Roll-off slope setting configures the PCM filter as pictured below in the 20-20kHz frequency sweep.
Fast
Slow
