Focus-12 block diagram focus-15 block diagram – Wharfedale Pro Focus 18S User Manual

Page 7

background image

5

:$7 7 6& 2 1 7 ,1 8 2 8 6
:$7 7 63 5 2 * 5 $ 0

:$7 7 6& 2 1 7 ,1 8 2 8 6
:$7 7 63 5 2 * 5 $ 0

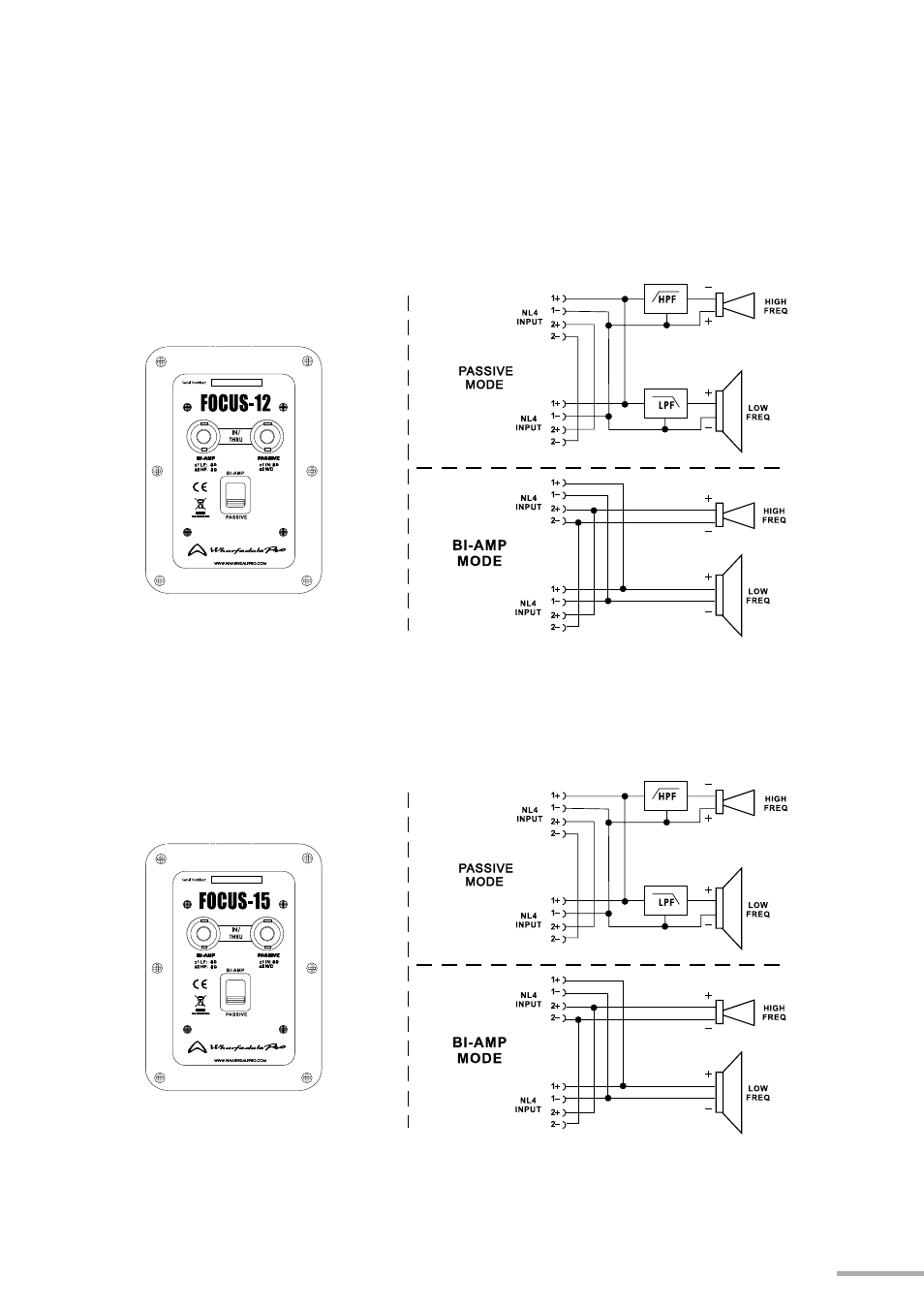

FOCUS-12

Block Diagram

FOCUS-15

Block Diagram

This manual is related to the following products:

Focus 15 Focus 218S Focus 12
