19 104960
OWNER’S MANUAL
PART NUMBER FOR MODEL
KEY RGH5500
NO. RGH5500IE RGH7500IE DESCRIPTION QTY.
099723-02 099723-04 Alternator Assembly 1
1 099844-01 099844-01 End Cover 1
2 099701-01 099701-01 Screw, M5 x 13 6
3 099760-01 099760-01 Bushing 1
4 099863-01 —— Terminal Block (4-block) 1
5 099863-02 099863-02 Terminal Block (2-block) 1
6 17587000 17587000 Ground Lug 1
7 M11084-26 M11084-26 Screw, #10-16 x 3/8" 1
8 099847-02 099847-04 Stator Bolt 4
9 WLE-5 WLE-5 Lock Washer, 5/16" 4
10 099843-01 099843-01 Bearing Housing 1
11 27005003S 27007004S Capacitor 1
12 —— 100054-01 Terminal Post 4
13 * * Stator 1
14 27003002 27003002 Fan Bracket 1
15 27003015S 27003015S Screw, M8 x 20 4
16 099891-01 099891-01 Rotor Nut, Flanged 8mm 1
17 099892-01 099892-01 Foam Pad 1
18 099842-02 099842-04 Draw Bolt 1
19 27003003 27003003 Bearing 1
20 27003012S 27003012S Diode 2
21 * * Rotor 1
22 27003008 27003008 Fan 1
23 27003007S 27003007S Engine Flange 1
24 26322004 26322004 Bolt, 3/8-16 x 5/8" 4
25 WLE-6 WLE-6 Lock Washer, 3/8" 4
1
6
2
10
13
3
9
8
4
7
5
11
17
12 16
18
14
19
20
15
21
22
9
23
25
24

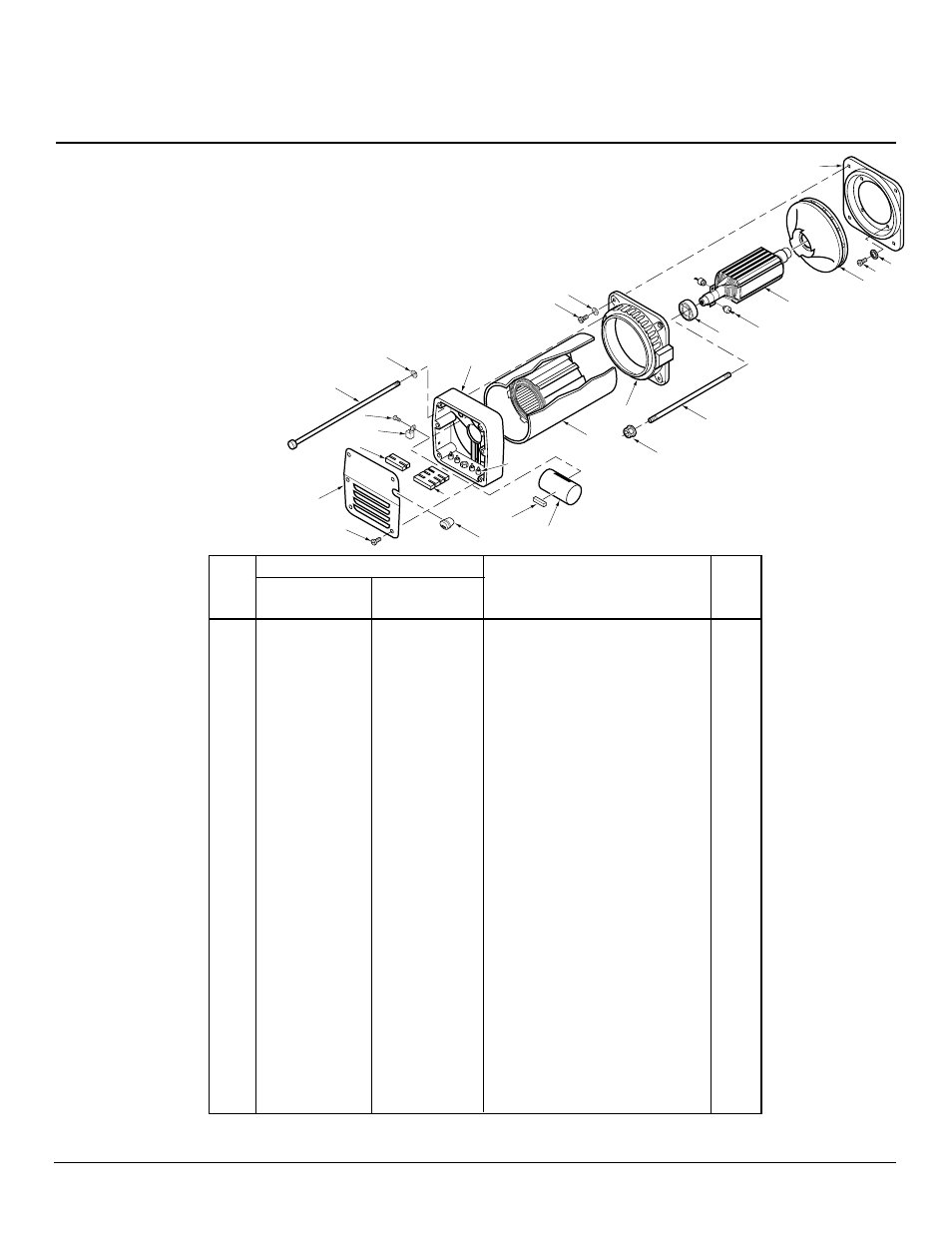

ILLUSTRATED
PARTS LIST
FOR MODELS RGH5500,
RGH5500IE, AND RGH7500IE
ALTERNATOR ASSEMBLY
This list contains replaceable parts used in
your generator. When ordering parts, fol-
low the instructions listed under Replace-
ment Parts on page 17 of this manual.
* Part not available by itself. Must purchase Alternator Assembly.
