Vermona qMI - quad MIDI Interface User Manual
Page 7

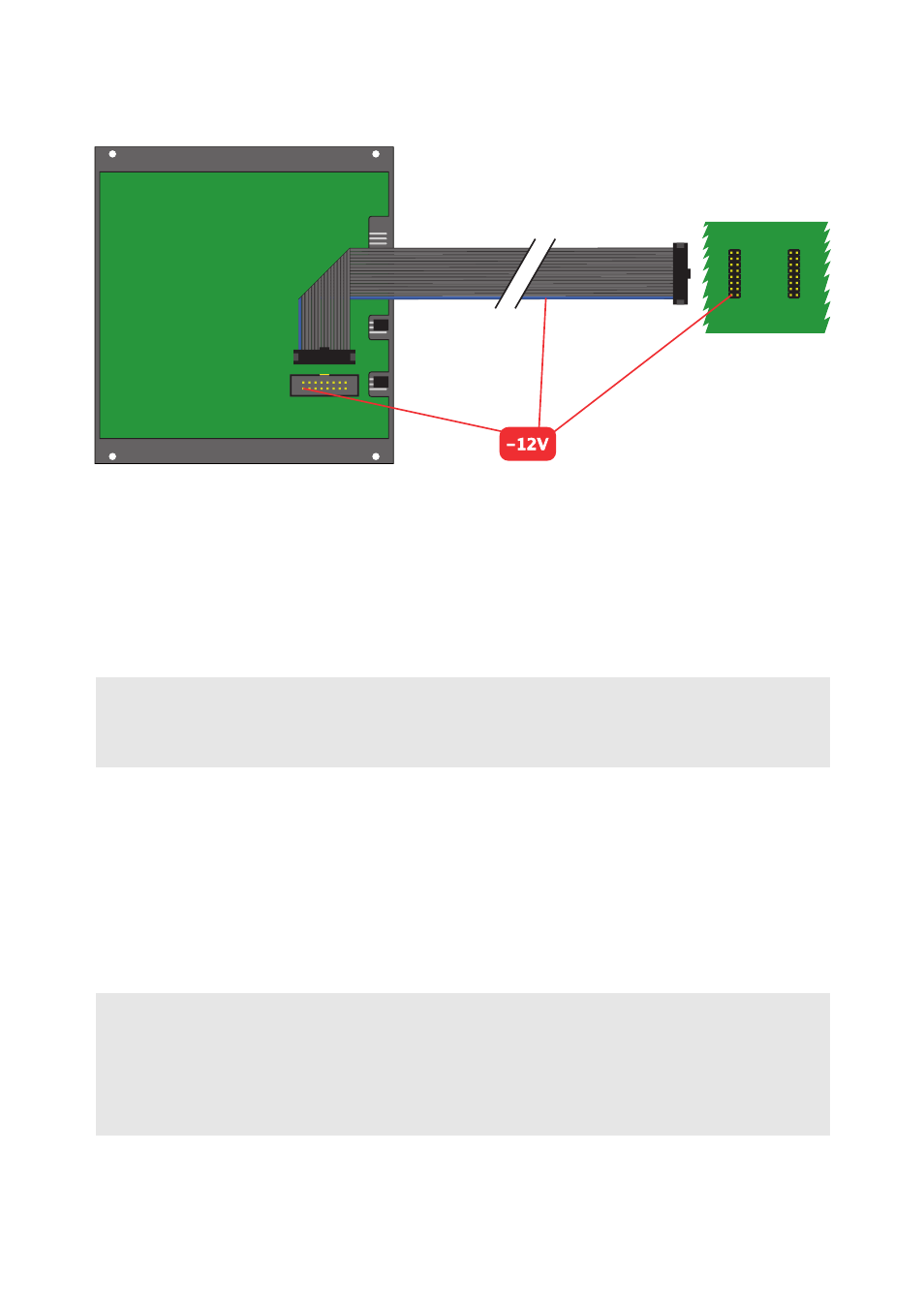

Picture 1: Connecting the qMI to the systembus
4.
Mount the qMI - quad MIDI interface to your modular frame. The unit
requires a width of 24 HP (horizontal pitch) and is rack-mounted with
the four supplied screws.
NOTE
To protect the unit's surface of scratches, use the 3 mm
flat plastic washers that come with your module.
5.
Reconnect the power chord to your frame and switch on the power
supply. The module is now ready to work. Press the MIDI CH- or EDIT
push-button to verify if the qMI - quad MIDI interface is correctly
supplied with power. If so, pressing the push-button will turn a green
LED on. Press again to leave this menu.
NOTE
In difference to many other CV/MIDI interfaces for
modular synthesizer systems, the qMI - quad MIDI
interface does not need an additional 5 volts adapter
for the system bus.
To find out how to connect the qMI - quad MIDI interface to your other
modules in your system, read the following sections.
qMI
ribbon cable
system bus
Owner's Manual - VERMONA*modular qMI - quad MIDI Interface
- 7 -
