NanoBridge

™

M5 Quick Start Guide

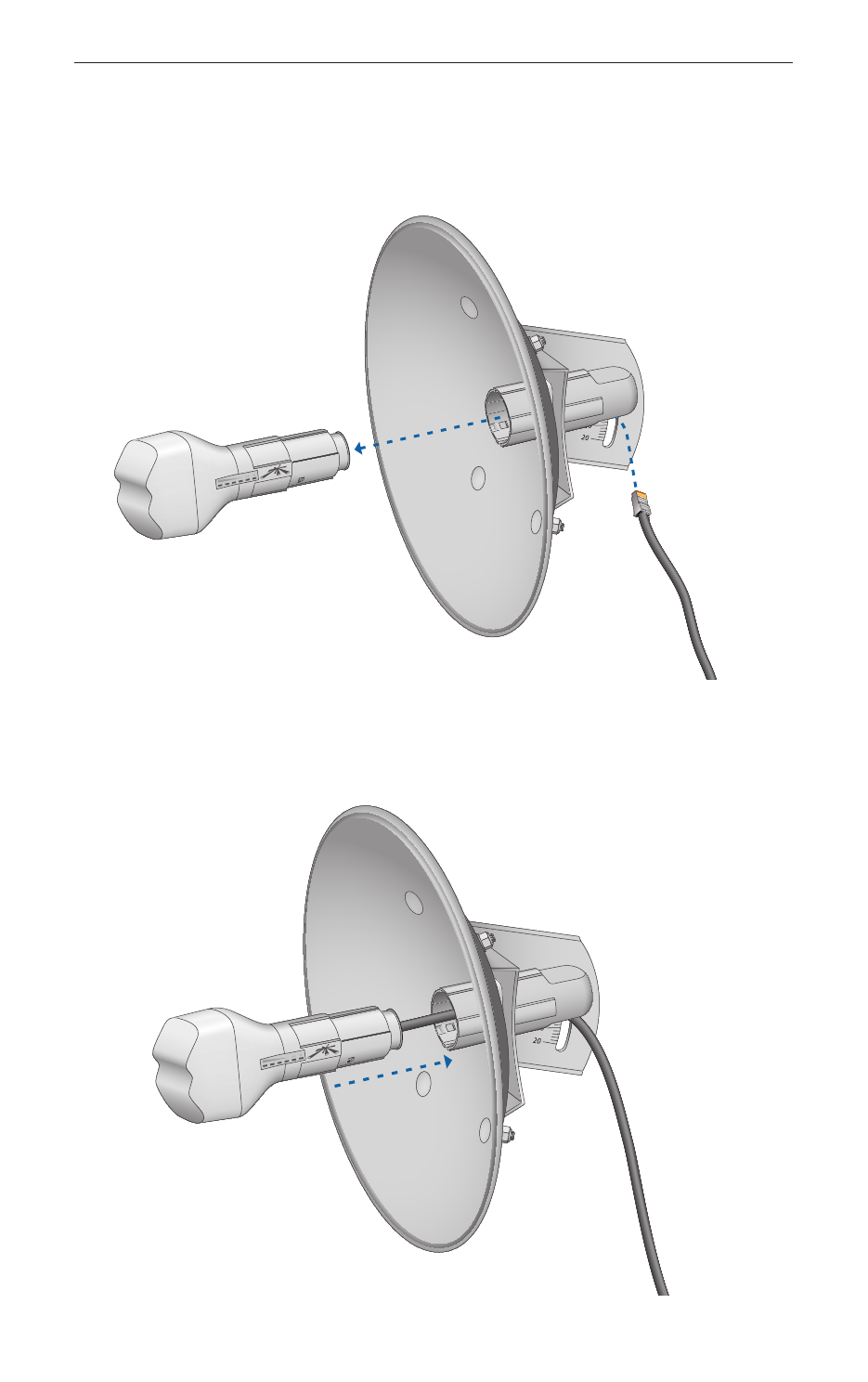

3. Route the Ethernet cable through the bottom hole of the Feed

Support and connect it to the Ethernet port on the back of the

Antenna Feed.

4. Insert the Antenna Feed into the Feed Support using the

orientation shown below.
