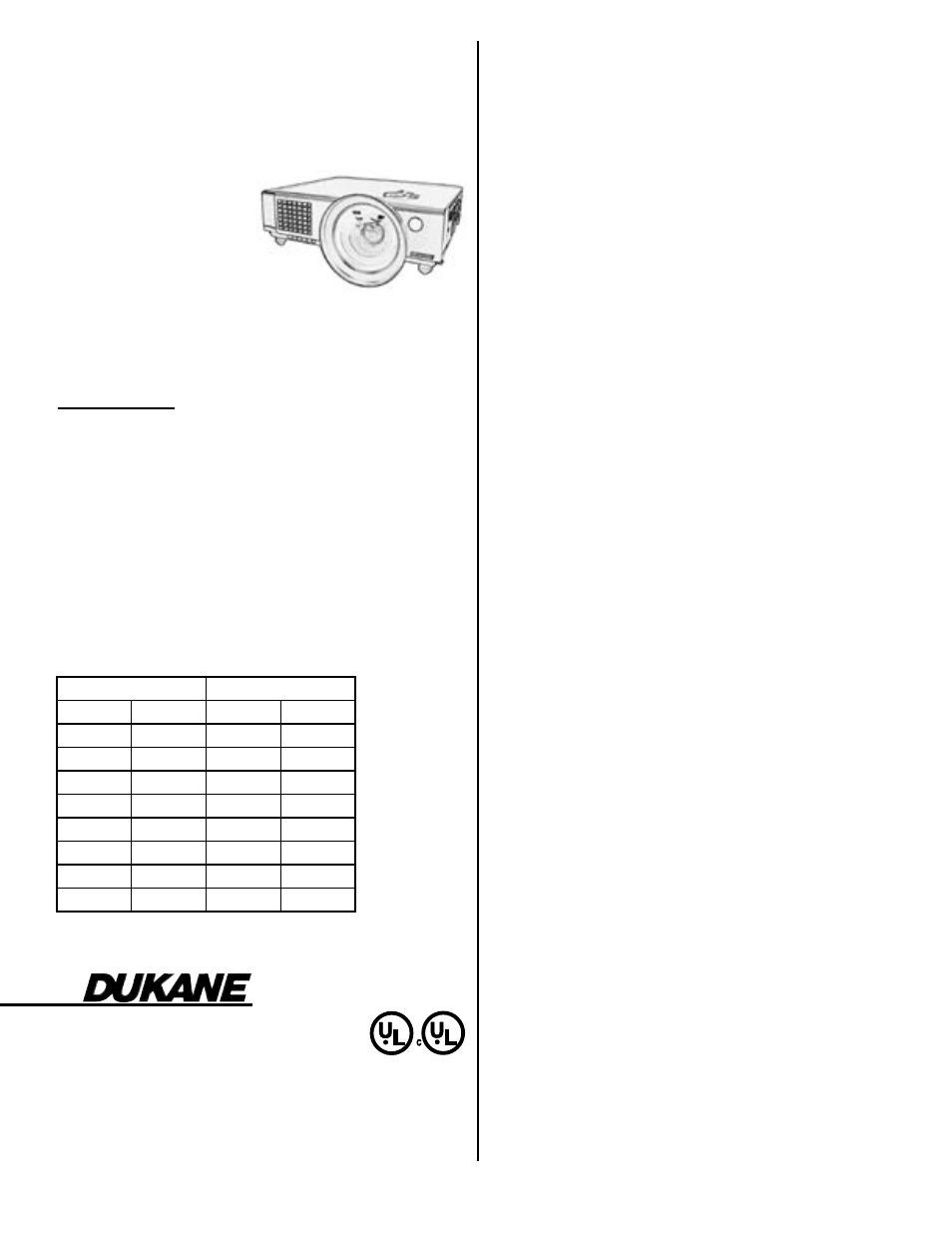

The Dukane ImagePro 8763 is a great projector

where you may need a short throw distance when

space is limited.
Superior picture quality

using the newest Pixel-

works™ chip to enhance

flesh tones, the 8763

meets the needs for busi-

ness presentation as well

as education and home

use. Auto ceiling detection, auto brightness and auto

digital keystone correction make this one of the easiest

projector to use.

Dukane Corporation

Audio Visual Products Division

2900 Dukane Drive

St. Charles, Illinois 60174

800-676-2485

toll-free

630-584-5156

fax

[email protected]

e-mail

www.dukcorp.com/av

ImagePro is a registered trademark of Dukane Corporation

#11738-B-07

ImagePro 8763 Super Wide Angle

Bright LCD projector

Key features:

Three (3) year limited warranty on parts and labor in North America,

lamp excluded (for other locations, local warranties apply).Includes

Dukane’s FREE 1 year Peace-of-Mind Loaner Program.

3

YR

8763 Projection Table

Throw Ratio (distance to width) 1.0

1.2

Image Size 4:3

Throw Distance

Diagonal

Width

Min.

Max.

Inches

Inches

Feet

Feet

40

32

2.5

3.1

50

40

3.2

4.0

60

48

3.9

4.8

80

64

5.2

6.4

100

80

6.6

8.0

200

160

13.4

16.1

300

240

20.0

24.0

Specifications

8763

Image Element

0.63” HTPS TFT x 3

Brightness

2500 ANSI lumens

2000 (whisper mode)

Resolution

1024 x 768 pixels (H x V), XGA

Contrast

500:1

Scanning Frequency

fh 15-69 kHz, fv 43-85 Hz

Lens

Manual zoom and focus, special wide

angle attachment included

Lens Throw Ratio

1.0 -1.2 :1 throw distance

to image width

Keystone Correction

Digital, vertical +/-30 deg, automatic

Aspect Ratio

4:3, 16:9 selectable

Computer

VGA, SVGA, XGA SXGA compressed,

Compatibility

MAC

Video Compatibility

NTSC, NTSC 4.43, PAL, PAL-M,

PAL-N, SECAM,

HDTV 1080i, 1125i, 720p, 525p/i,

625i, 480p/i

Image Control

Freeze function, electronic

magnification and pan, PIP

Mouse Control

Using USB

Projection Modes

Front/rear/ceiling

Color Reproduction

24 bit (16.7 million)

Lamp

250W

Lamp Life

2000 hours (3000 in whisper mode)

Audio

1W x 2

Throw Distance

40” to 510”

Screen Size, diagonal

30” to 300”

Inputs, Video

(1) S-video, Min DIN 4-pin,

(1) Composite video, RCA x 1

Inputs, Computer

(2) RGB Signal: D-sub, 15 pin

Audio, Stereo mini-jack x 1

Outputs Monitor

15 pin, D-sub

Outputs Audio

Audio, Stereo mini jack x 1

Outputs,Control

RS232C, round DIN

USB connector

Security

Kensington lock slot

Fan Level

33dB, (30dB in whisper mode)

Operating Temperature 41 to 95 deg. F (5-35 deg C)

Power

AC 100-120V, at 50-60 hz, 250 watt

Size (WxHxD)

12.1” x 10.5” x 3.7”

Weight

6.8 lbs. (3.1kg)

Carton Size

20” x 14” x 17”

Shipping Weight

12 lbs.

Accessories Included

Remote control, batteries, power cord,

Computer cable, Audio/Video cable,

User Manual, CD ROM

Safety

UL, CUL, FCC, CE, CB, CCC, UCIC

Optional Accessories

Lamp 456-8763

Wireless Extender, LV3500W

Ceiling mount , universal; RPA-U,

Remote Control w/mouse function.

• 2500 Lumens Brightness
• XGA Resolution
• 500:1 Contrast Ratio
• Auto Digital Keystone Correction
• Auto Ceiling Detection
• Auto brightness adjustment
• Manual zoom & focus
• Short throw distance
• Two Year Warranty and One Year Peace of

Mind Service

Specifications subject to change without notice.
