Page 2
Two (2) year limited warranty
on parts and labor in North America, lamp excluded
(for other locations, local warranties apply).
Includes Dukane’s FREE 12 month
Peace-of-Mind Loaner Program.
Specifications
Image Element Type
0.7” DMD, DDR,
Digital Micromirror Device
DLP by Texas Instruments, XGA
Brightness
1100 ANSI lumens
Resolution
1024 x 768 pixels (H x V)
Contrast
800:1
Scanning Frequency
fh 15-100 kHz, fv 43.5-130 Hz
Lens
Manual zoom 1.3X
Lens Throw Ratio
1:8 to 2.4:1 width to throw
distance
Keystone Correction
Digital, +/- 15 degrees
Aspect Ratio
4:3, 16:9, selectable
Computer
SVGA, VGA, XGA, SXGA
Compatibility
PC and Mac
Video Compatibility
NTSC, PAL, SECAM, SDTV
(480i), EDTV (480p)
Image Control
Freeze function, electronic
magnification, pan and Picture-
in-Picture
Mouse Control
Using USB
Projection Modes
Front/rear
Color Reproduction
24 bit (16.7 million)
Lamp
120W UHP
Lamp Life
3000 hours (typical)
Audio
1 speaker, 1 watt
Throw Distance
5 to 35 ft.
Screen Size
2.7 to 22.2 ft.
Inputs, Video
(1) Min DIN 4-pin, s-video
(1) RCA, composite video
Inputs, Computer
(1) DVI, M1D/A, VESA with
USB mouse
(1) Audio, stereo mini jack
Security
Kensington lock slot
Fan Level
32dB, ultra quiet
Operating Temperature
5 to 40 degrees C
Power
AC 100-240V, 50/60 Hz,
155 watt
Size (WxHxD)
7.8” x 2.5” x 6.1”
Weight
2.4 lbs.
Shipping Weight
10 lbs.
Carton Size
11.8” x 12.2” x 13.2”
Accessories Included
Remote control,
batteries, power cord,
RCA video cable,
DVI cable with USB,
audio cable (stereo mini),
operator’s manual and
soft carrying case.
Safety
UL/CSA, FCC Class B
Optional Accessories
Lamp 456-241; rolling
briefcase; 185-406
2
YR
A way to present your images anywhere
The Dukane ImagePro 8746 provides exceptional per-
formance with tremendous portability. It’s the ideal way to
present rich, saturated color images from your PC or
video source.
The projector is one - half the size of most laptop comput-
ers while providing a full set of features. Use it as your
traveling companion or just as a fast way to collaborate
with your associates.
Key features:
•Ultra light weight
•1100 lumens brightness
•Crisp XGA resolution,
with auto sizing image
•DVI connection for analog and digital images
•Full-function remote control with USB mouse operation
•Computer plus composite, and S-video inputs
•Only 2.4 lbs. in a miniature package
•1.3X zoom lens for flexible projector placement
•Audio sound from built-in speaker

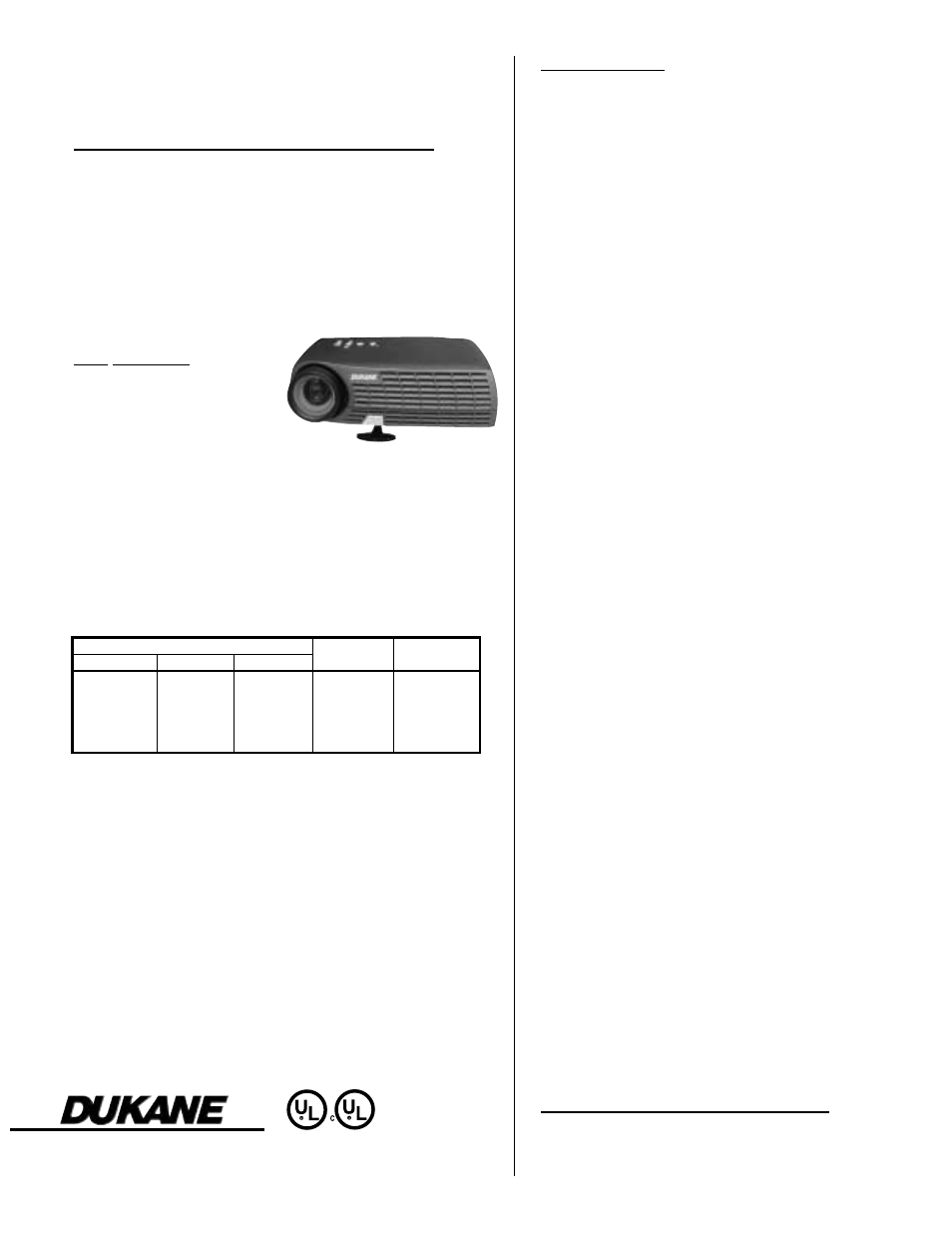

ImagePro 8746
Ultra portable DLP projector
Audio Visual Products
2900 Dukane Drive
St. Charles, Illinois 60174
www.dukcorp.com/av
Projection throw distances for 4:3 Aspect, in inches (feet)
60
(5.0)
48
(4.0)
32
(3.0)
89
(7.4)
113
(9.5)
72
(6.0)
57
(4.7)
43
(3.6) 107 (8.9)
136 (11.4)
84
(7.0)
67
(5.6)
50
(4.2) 124 (10.4) 159 (13.3)
100
(8.3)
80
(6.7)
60
(5.0) 148 (12.4) 189 (15.8)
120 (10.0)
96
(8.0)
72
(6.0) 178 (14.9) 227 (19.0)
Minimum distance to screen is 59 inches (4.9 feet)
Throw
MIN
MAX
Diagonal
Width
Height
Throw
Image Size in inches (feet)
ImagePro is a registered trademark of Dukane Corporation
Toll-free: 800-676-2485
Fax:
630-584-5156
E-mail:
#11590-B-04
