Treasure Garden BS-AG Spa Base User Manual
Page 8
4
7
(Fig. 18)

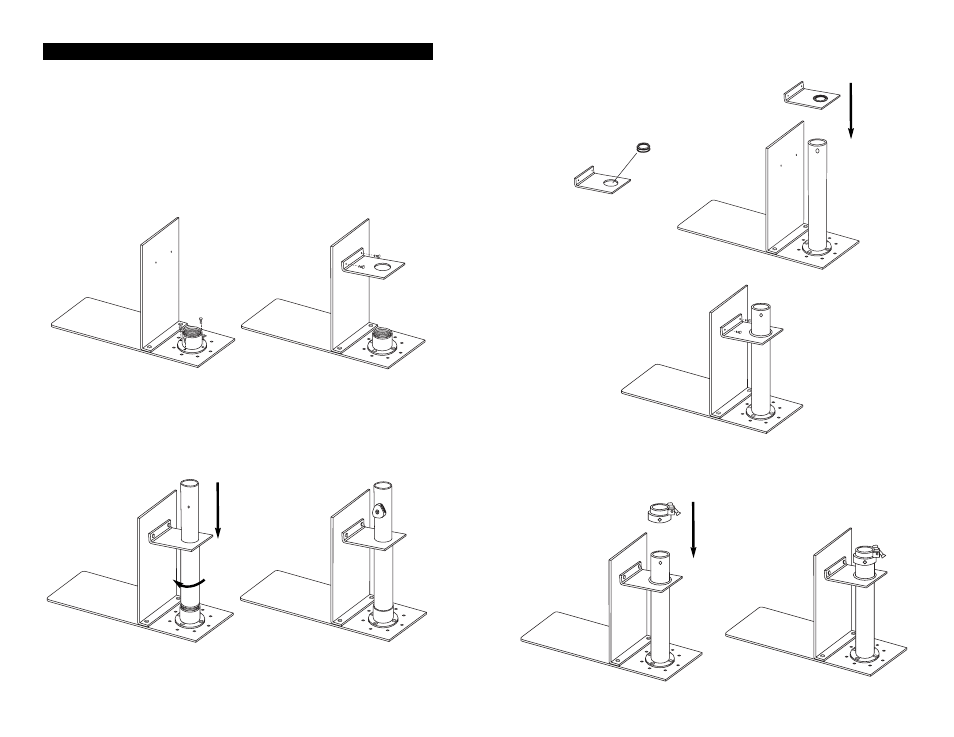

S T E P 4 Assembly for All Market Umbrellas
Follow these steps to assemble Spa Base to be used with most market
umbrellas. Please refer to the page 3 for the AG19 or page 5 for the AG3 assembly
instructions.
Connect the (included) adapter to the bottom base plate and secure with (4) supplied
bolts and (4) supplied washers (Fig. 16). Attach stem plate onto the assembled back plate
and fasten with (2) supplied bolts and (2) supplied washers (Fig. 17). NO REDUCER IS
NEEDED.
Insert the AG19 reducer onto stem plate (Fig. 6). Slide the stem plate over the AG19
bottom pole stem (Fig. 7) and fasten stem plate onto assembled back plate with (2)
supplied bolts and (2) supplied washers (Fig. 8).
Reattach base pole clamp to bottom pole stem and tighten screw with 4mm hexagon tool
(not included) (Fig. 9).
(Fig. 6)
(Fig. 7)
(Fig. 8)
(Fig. 9)
Market Umbrella Assembly ONLY
Insert the (included) stem through the stem plate and into the adapter. Turn clockwise to
tighten (Fig. 18). Finally, assemble the knob onto the stem (Fig. 19).
(Fig. 16)
(Fig. 17)
(Fig. 19)
