TrakPower TK950 Soldering Station User Manual
Soldering iron, Precautions, Set-up

™
For best results read the entire manual before operating.
Precautions
Soldering Iron
Set-up
•
Mishandling the iron could lead to
burns or fi re. Tip temperature can reach
480°C/896°F.
•
Do not use the iron for applications
other than soldering.
•
The soldering process produces smoke.
Make sure the area is well ventilated.
•
Always store the iron in the holder when
not in use.
•
Do not leave a hot iron
unattended.
•
Do not touch any of the iron’s
metal parts while operating.
•
Let the iron cool to room
temperature before replacing
tips.
•
Do not use or store the iron
near fl ammable items.
•
Let the iron cool to room
temperature before storing.
•
Do not over tighten the
temperature control lock screw.
•
Do not adjust the temperature
control knob if it is in the locked
position.
•
Turn the power off when
fi nished using the unit.
1. If desired, place the included optional
graphics wrap on the iron. Use the box and
manual pictures as a guide.
2. Connect the cord assembly to the receptacle. Secure it by
rotating the retaining clip clock-wise.

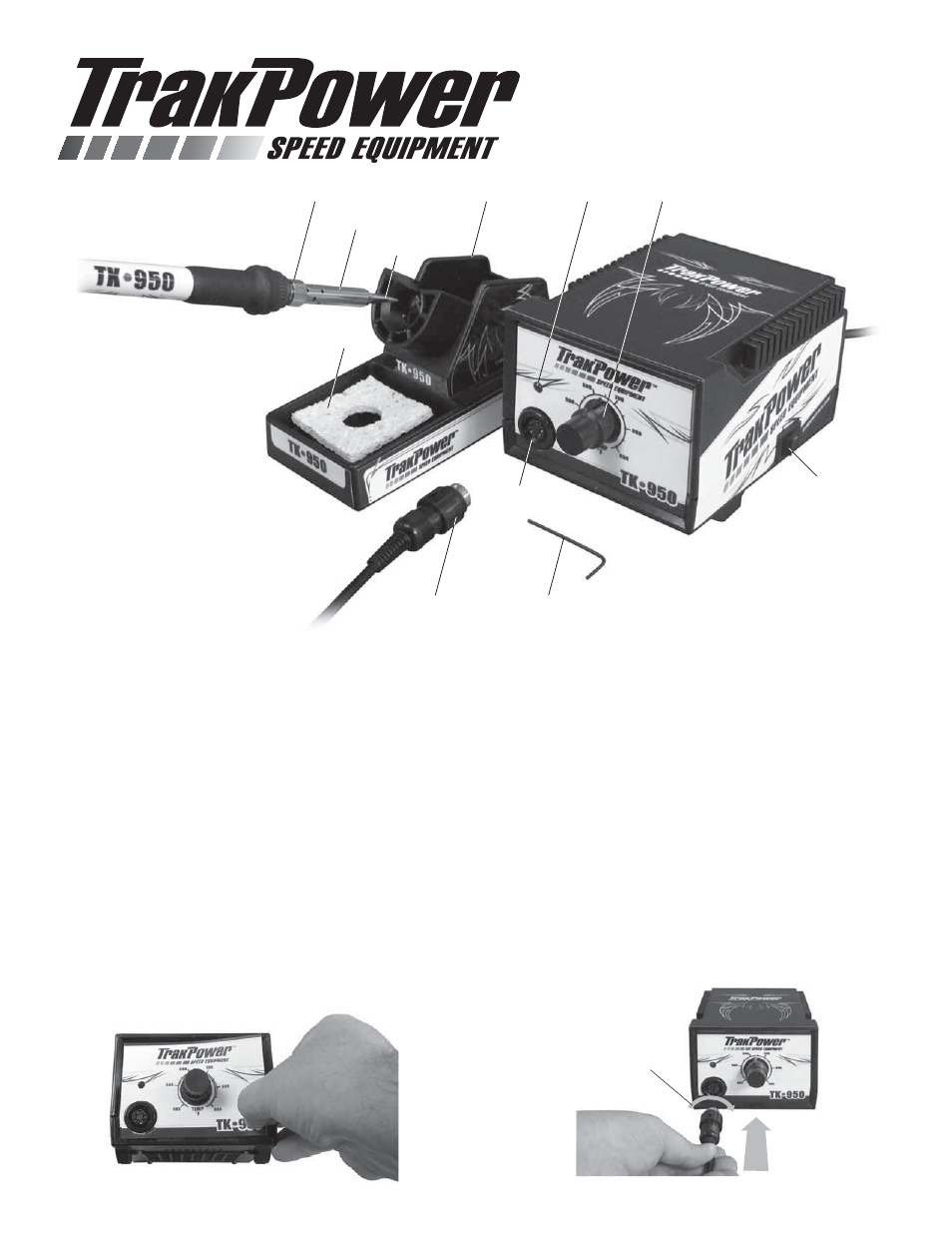

TIP RETAINER NUT
IRON HOLDER
POWER INDICATOR
TEMPERATURE CONTROL KNOB
TIP RETAINER
TIP
CLEANING SPONGE
RETAINING NUT
1.5 mm WRENCH
POWER SWITCH
CORD
RECEPTACLE
ALIGN THE PINS AND
PUSH STRAIGHT IN
TURN THE RETAINING NUT
CLOCKWISE TO TIGHTEN
1
2
