INSTALLATION INSTRUCTIONS

2 PORT ZONE VALVE VAL222MV VAL228MV

VAL222MV and VAL228MV are 2 port spring return zone valves with 22mm and 28mm compression
fittings and an auxiliary switch. This is for general purpose flow control applications or central heating
systems. When correctly wired with an appropriate room thermostat, cylinder thermostat and
programmer the valve will control the water flow from the boiler to hot water and from boiler to central
heating.

INSTALLATION

Before fitting the valve, read through the plumbing
and wiring instructions. When replacing the valve
actuator only, set the Auto/Manual lever to the
“Manual Open” position before removal. On the
replacement actuator set the Auto/Manual lever to
“Manual Open” position before fitting.

WIRING

All wiring should be carried out to IEE Regulations
Brown

- live

Orange

- end switch out

Grey

- end switch in

Blue

-

neutral

Green & Yellow - earth

PLUMBING

When connecting to pipe work do not use the
actuator for leverage. Valves should be held by
wrench flats on body. Place the AUTO/MAN lever in
the MAN position when filling, venting or draining
the system

TAKE CARE NOT TO OVERTIGHTEN

SPECIFICATIONS

• Supply voltage 240V. AC 50Hz

• Power consumption: 6W
• Operating temperature range: +5 to +88

0

C

• Cable length one metre

• Max. differential pressure for 22mm = 1Bar

• Max. static pressure 10.0 Bar

• Max. fluid temperature 100

0

C

• Max. ambient temperature 52

0

C

WARNING
All controls must be earthed. All valves should have a
means of disconnection from electrical mains supply
which incorporates a contact separation of at least 3mm
in all Poles.

All wiring must be carried out by a competent
electrician.

TFC GROUP LTD

Tower House, Vale Rise, Tonbridge, Kent, TN9 1TB, Telephone: 01732 359888 Fax: 01732 354445

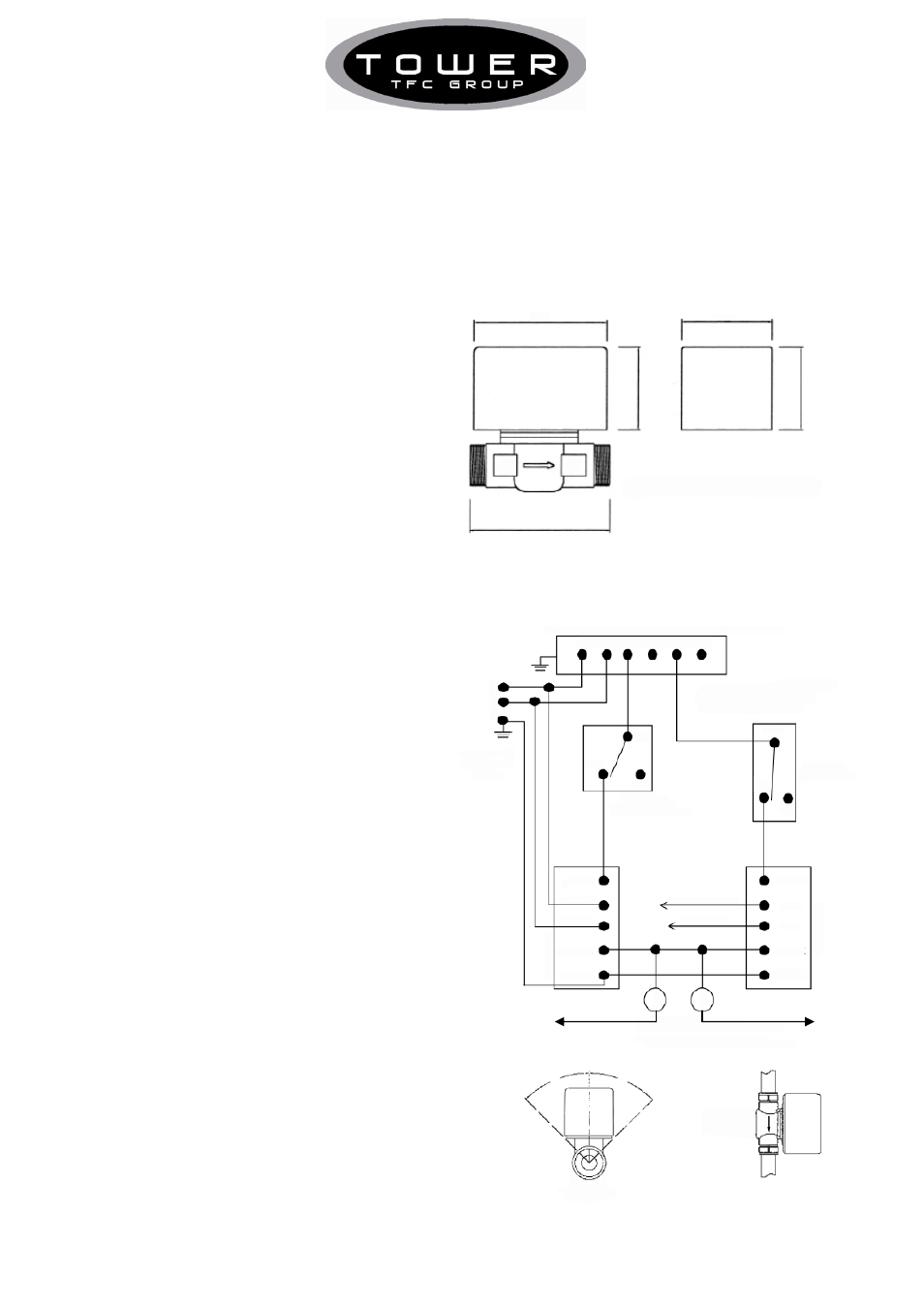

Typical circuit using two zone Valves (VAL222MV)

Programmer, Room Thermostat and Cylinder Thermostat

45

0

45

0

88

60

93

55

55

A B

PROGRAMMER HEATNG H,

WATER

L N

ON OFF ON OFF

L

N

240V AC 50 Hz

Supply fused

at 3A

CALL = THERMOSTAT DEMAND
SAT = THERMOSTAT NO DEMAND
COM = COMMON

COM

COM

CALL

CALL

SAT

SAT

BROWN

GREY

BLUE

ORANGE

GRN/YLO

BROWN

GREY

BLUE

ORANGE

GRN/YLO

PERMANENT LIVE

NEUTRAL

P B

NEUTRAL (P=PUMP)

NEUTRAL (B=BOILER)

Valve

Valve

ALL DIMENSIONS IN MM

Cylinder

Thermostat
