Connection to the ports, Rgb in1, Rgb in2, rgb out – Dukane 8065 User Manual

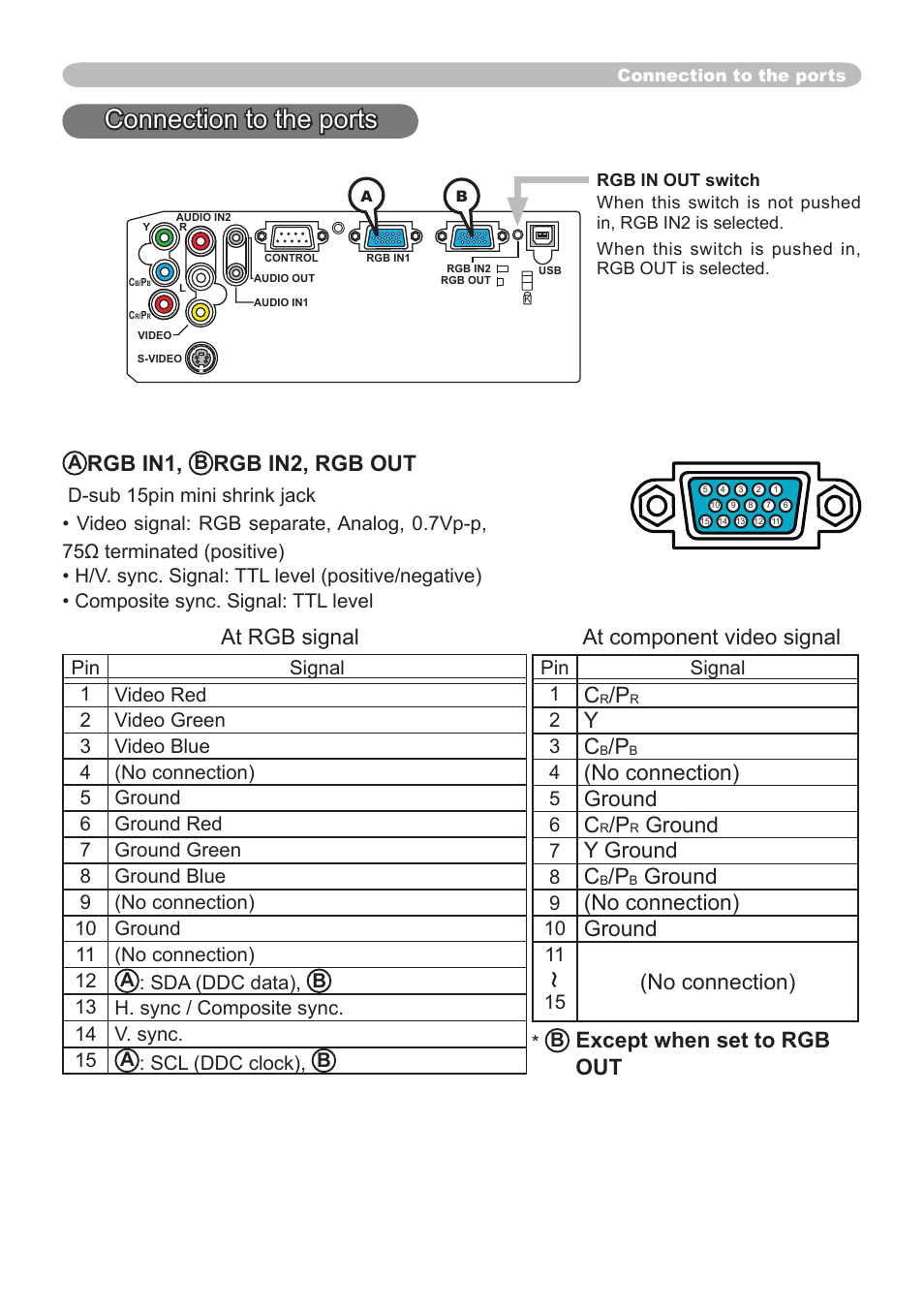

Page 101: At rgb signal at component video signal, No connection), Ground, Y ground, Except when set to rgb out
