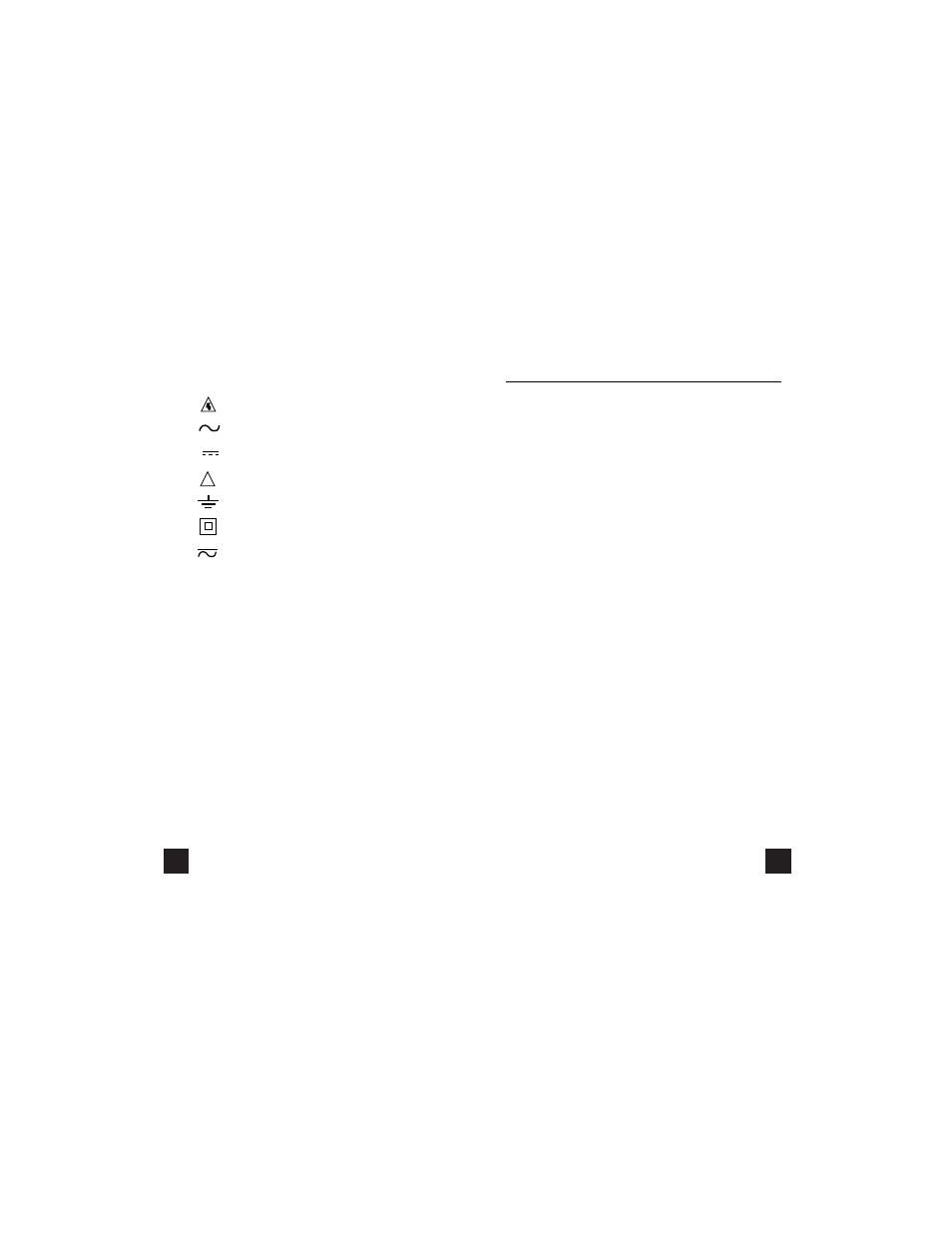

INTERNATIONAL SYMBOLS
CAUTION: RISK OF ELECTRIC SHOCK
AC (ALTERNATION CURRENT)
DC (DIRECT CURRENT)
REFER TO INSTRUCTION MANUAL
GROUND
DOUBLE INSULATION
EITHER DC OR AC
!
C. TECHNICAL DATA
1. Features and Benefits
Agency UL Listed to U.S. and Canadian Safety
Standards. Meets CE and IEC 1010.
True RMS Needed to accurately measure non-sinu-
soidal AC voltage and current waveforms
found on many controls and circuits.
HDR Mode Determines if a signal is clean or distorted.
Displays the harmonic distortion ratio on
ACV and ACA at line voltage and 60 Hz.
4000 Count Improves the resolution on all functions
and ranges.
Data Hold Maintains the reading on the display for
hard to reads areas.
Peak Mode Measure the inrush current of motors,
relays and solenoids.
Trim Mode Averages the readings for more stable out-
put on LCD.
Record Mode Records Min/Max and Average value of the
function being measured.
Sleep Mode Automatically powers down after 10
minutes of inactivity.
Frequency Measures the frequency of the current
being measured.
Dual Display When measuring frequency, the bar graph
indicates the current level.
Bar Graph Shows rapidly changing input signals
that the normal display will not.
