Model FeQ-50 4-Band Passive, Parametric Equalizer 9
Applications
Applications

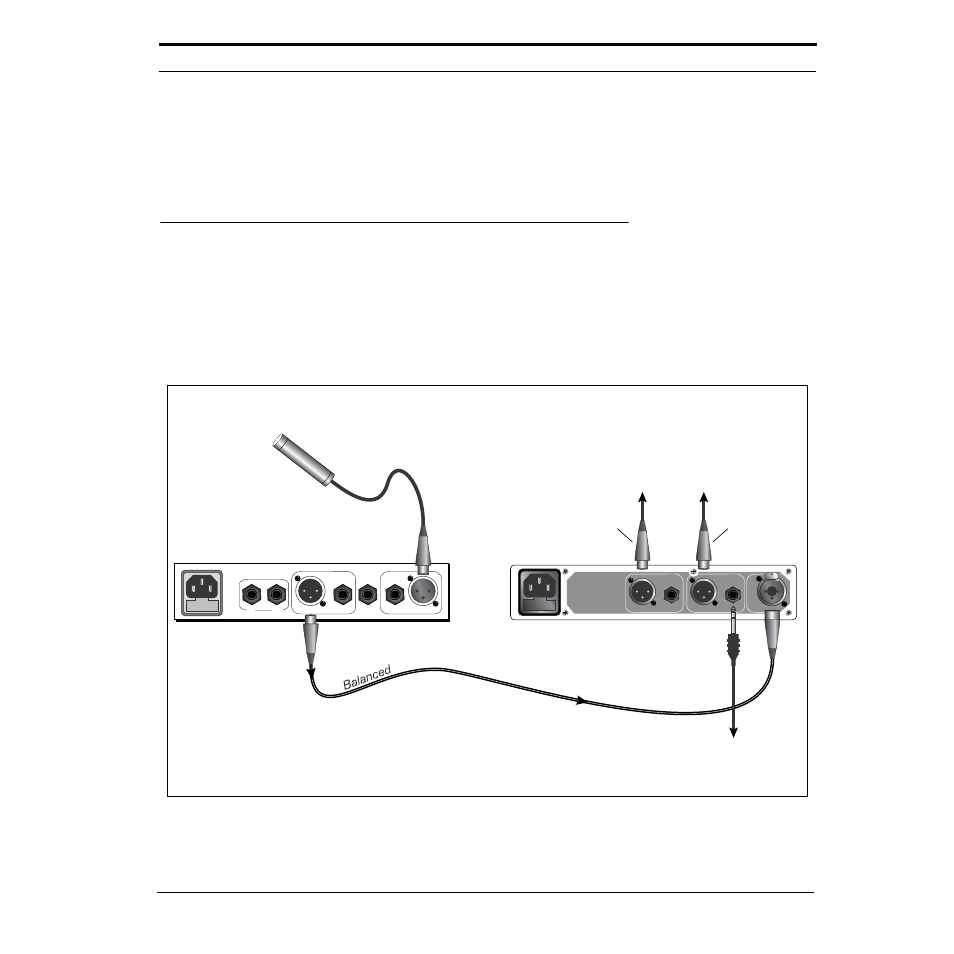

Dual-Output Mic/EQ Channel
The FeQ-50 in conjunction with the Summit Audio 2BA-221
provides you with a world-class mic preamp and passive EQ
channel. As a bonus, you can record both the tube and solid-
state outputs of the FeQ-50 on separate tracks.
-10 BAL. INSERT
SUMMIT AUDIO INC. CARMEL, CA USA
MIC
FUSE
+4 BAL.
SUMMITAUDIO.COM
MODEL 2BA-221 20W MAX
OUTPUTS
OUT IN IN
STACK
INPUTS
2BA-221
+4 Output
Mic. Input
Tube
Out
Solid-State
Out
Microphone
FeQ-50
-10 BAL. +4 BAL. -10 UNBAL +4 BAL.
TUBE
MODEL FEQ-50 20W MAX
SUMMITAUDIO.COM -10 BAL. +4 BAL.
SOLID STATE PUSH
FUSE 115V USE 250-MA FUSE 220V USE 125MA FUSE
To
Recording Device
or Line Mixer
To
Monitor System
Microphone Channel
