Applications

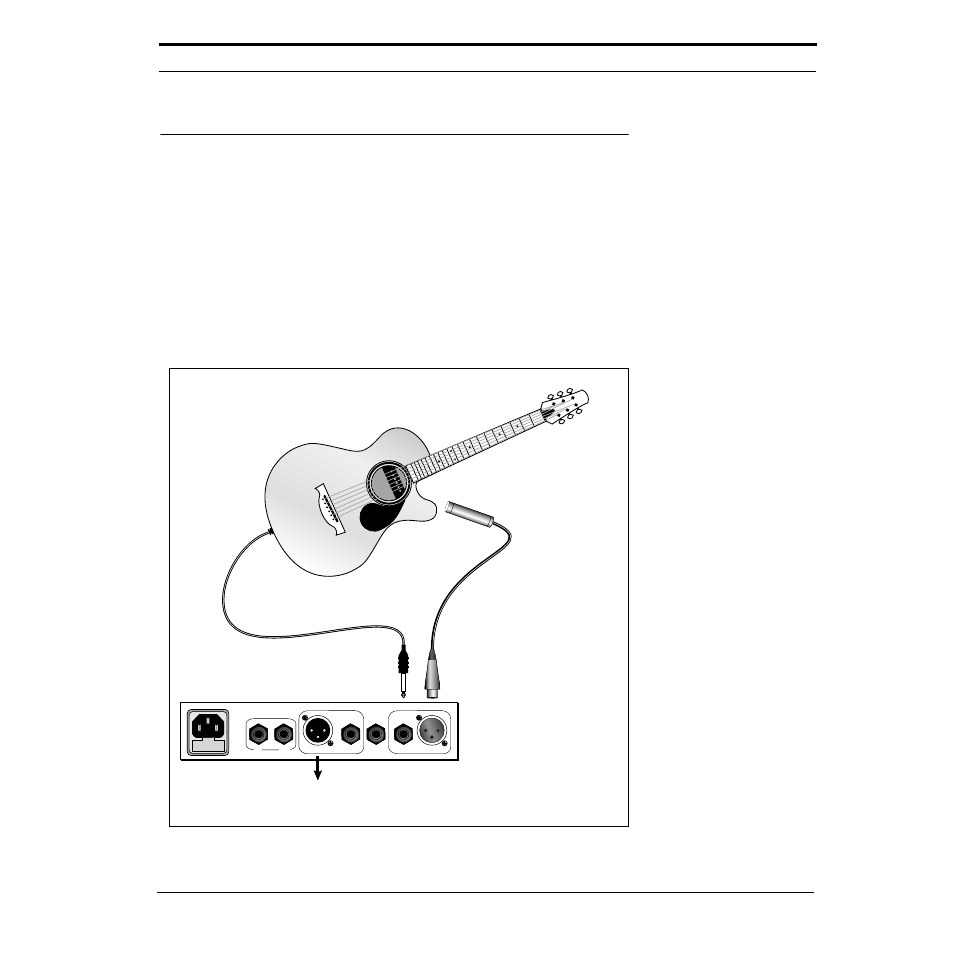

Using the 2BA-221 as an Acoustic Instrument
Preamp
Acoustic guitars and other instruments are often bi-amplified
because of the superior sound reproduction obtained from
using two transducers. The 2BA-221 is perfect for the job.
Tip: You could also use
the microphone for
vocals and the instru-
ment input for the
guitar using this same
setup. Connect the pickup output of your acoustic instrument to the
High Z input and connect a high-quality microphone to the
Mic input. Adjust the input gain controls for the best tonal
balance between the microphone and pickup.
Pickup
Instrument
Input
Mic Input
Microphone
(on guitar or voice)
-10 BAL. INSERT
SUMMIT AUDIO INC. CARMEL, CA USA
MIC
FUSE
+4 BAL.
SUMMITAUDIO.COM
MODEL 2BA-221 20W MAX
OUTPUTS
OUT IN IN
STACK
INPUTS
2BA-221
To Sound Board
or Recording Device
Acoustic Instrument Preamp
