INSTALLATION
NOTE: A #1 and #2 Phillips screwdriver will be required for this procedure.
1. Remove cover from the carrier by turning screw clockwise. Slide the cover off
carrier (Figure 5).
2. Carefully insert drive (not included) into the carrier. Turn the drive/carrier assembly
over.
3. Bottom-mount the drive into the carrier with four (4) Phillips screws (Figure 6).
Reinstall cover onto the carrier.
Secure the cover by turning the screw counterclockwise a few rotations only. Do
not turn the screw too many times in a counterclockwise direction or the screw
will be removed.
Turn Screw
Clockwise
Slide Cover
Off
1 2
Close-Up
View of Screw

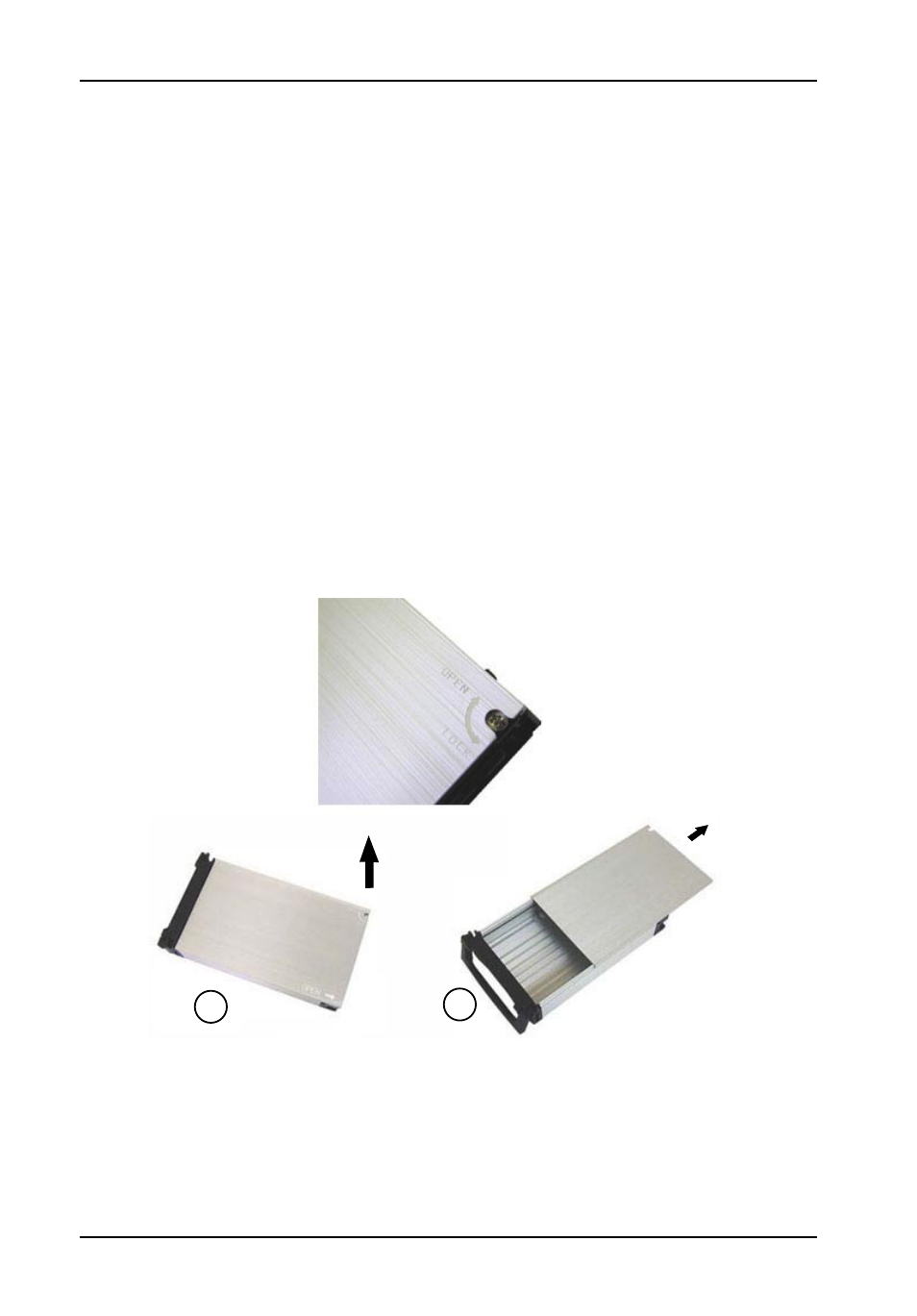

Figure 5: Cover Removal
