Installing the power cord retainer clip, Figure 6: power cord retainer clip – StorCase Technology 14-Bay 4U SCSI Ultra160 User Manual
Page 12

InfoStation 14-Bay Installation Guide - Rev. C00
StorCase Technology, Inc.
Installation
7
Installing the Power Cord Retainer Clip
NOTE:
Turn OFF power supply module and unplug power supply cord before
installing retainer clip (included in the InfoStation accessory packet).
1.
Turn OFF power to the power supply module via the power switch located on the
module itself. If plugged in, unplug the power cord from the module.
2.
Squeeze the retainer clip (Figure 6) and install onto the power supply module (as
shown in Step 1 of Figure 7).
3.
Flip the retainer clip up and plug in the power cord (as shown in Step 2 of Figure
7).
4.
Once cord is plugged in, push down the retainer clip so that it locks onto the power
cord (as shown in Step 3 of Figure 7).
IF14_23

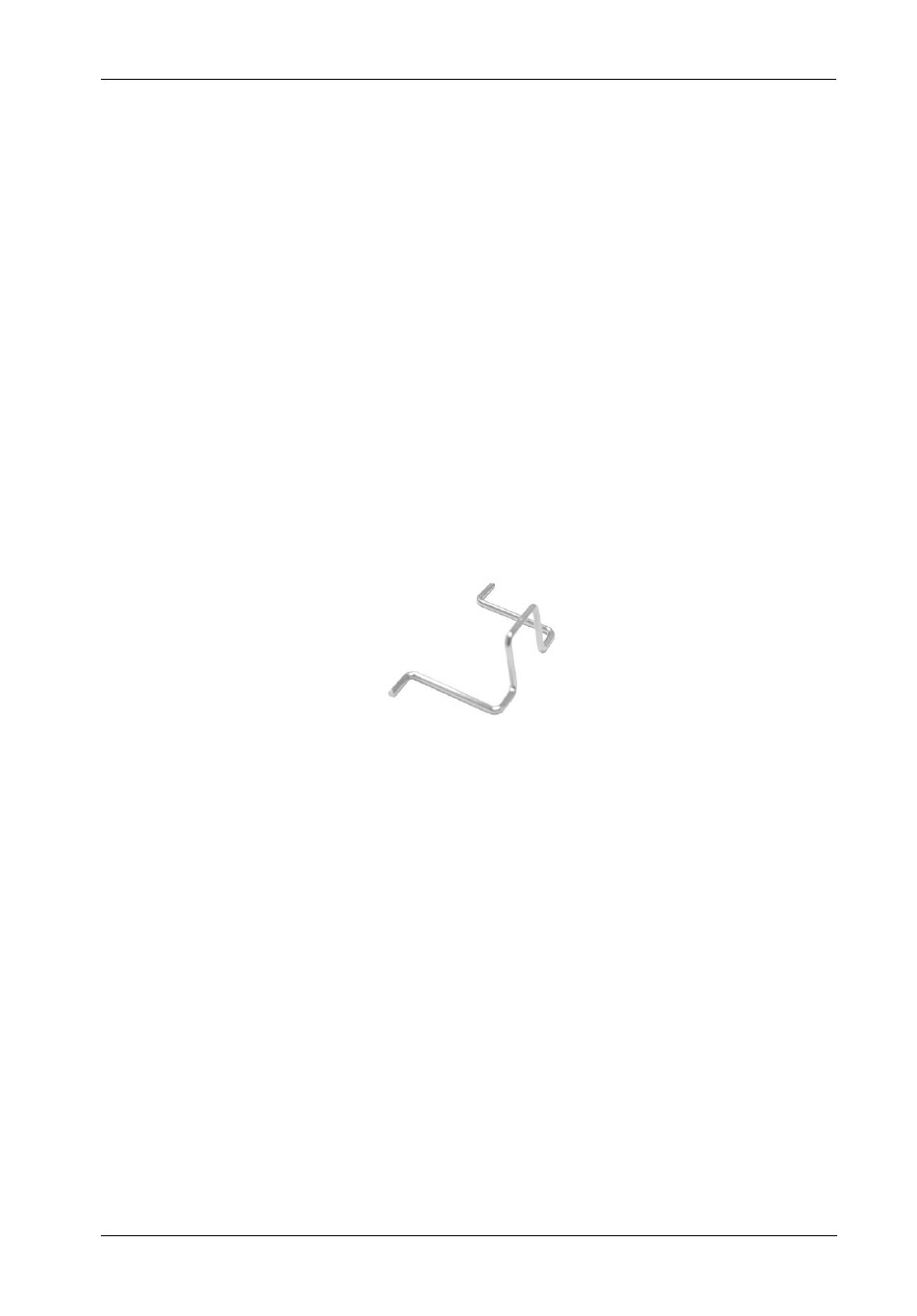

Figure 6: Power Cord Retainer Clip
