User Interface 7
InfoStation 14-Bay U320 User's Guide - Rev. B00 StorCase Technology, Inc.
INFOSTATION USER INTERFACE
LED Indicator and User Interface Panel
Each InfoStation provides the user with a visual indication of chassis environmental and
configuration statuses, in addition to providing an RS-232 connection for system environmental
monitoring, configuration, and control (Figure 4).

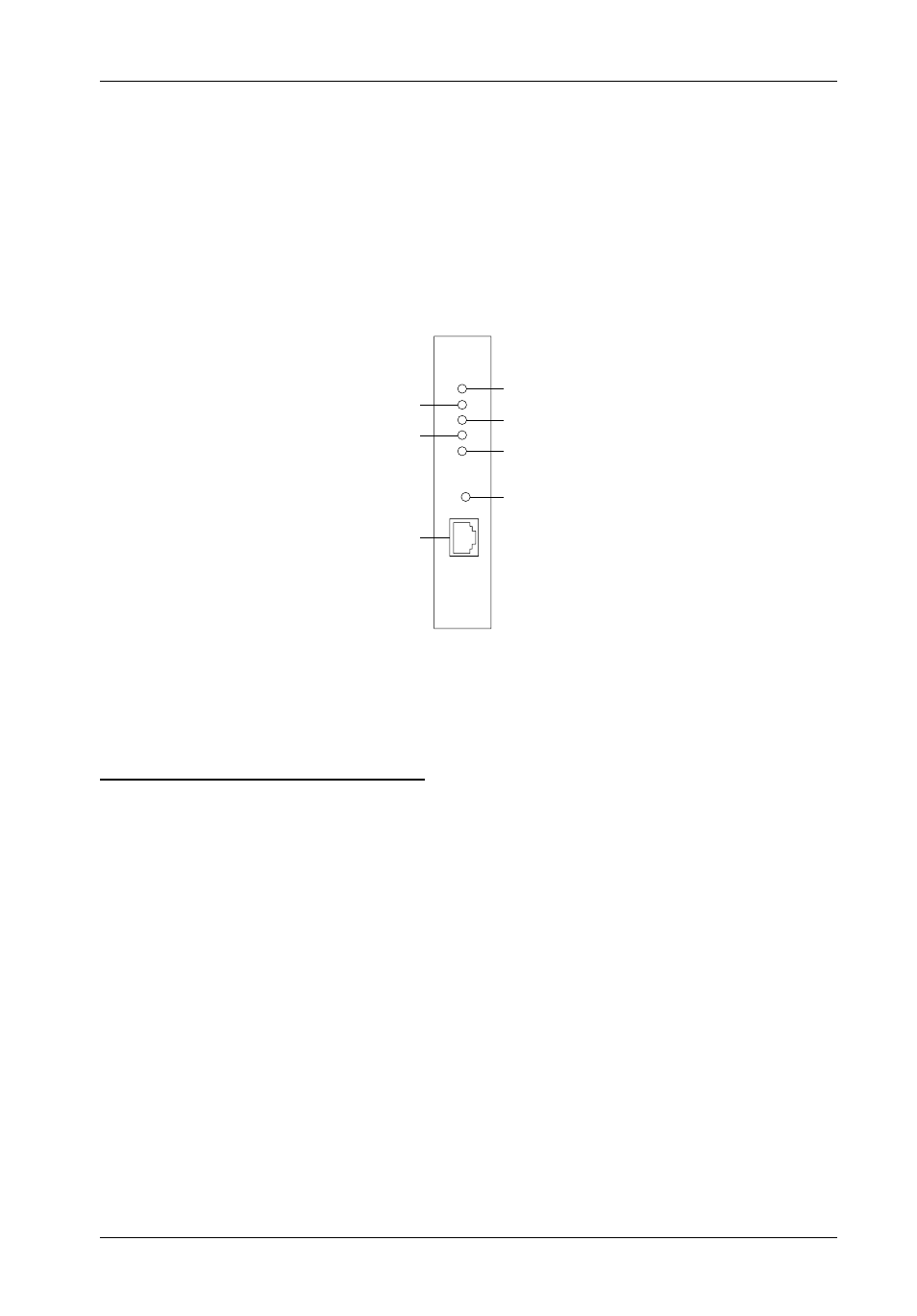

Figure 4: LED Indicator and UI Panel
LED Indicator/UI Panel Components
Power (Green) - ON = Power to the chassis is on.
Warning (Amber) - ON = One or more warning conditions
Fault (Red) - ON = One or more fault conditions
Mute (Amber) - ON = Audible alarm is disabled
Override (Amber) - ON = Warning condition commands are overridden
NOTE: Factory default is OFF (recommended).
Reset Switch - Resets InfoStation User Interface Module (will not reset SCSI
Bus)
RS-232 Serial Port - RS-232 serial connection used for InfoStation external monitor-
ing, configuration, and control.
Warning
Mute
RS-232
Serial Port
Power
Fault
Override
Reset
Switch
