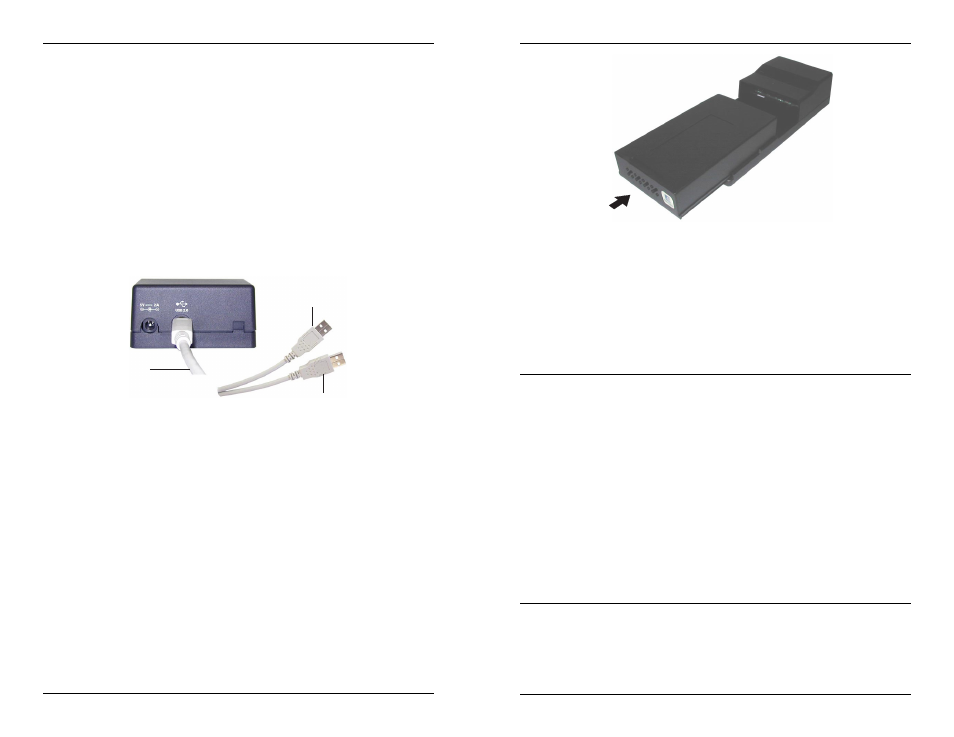

Figure 3: Inserting a DE50 Carrier into the Carrier Dock

Figure 2: Carrier Dock Rear Panel

If the installation has been successful, and all the cables have been properly con-

nected, the LEDs on the carrier dock should illuminate.

4.

A new drive may need to be formatted or initialized prior to use with the operating

system and applications software. Refer to the drive and/or computer manufacturer's

documentation for formatting information.

Removing Carrier from the Carrier Dock

NOTE:

Disable USB device on host computer desktop before removing carrier from

carrier dock (simply right-click on the "Unplug/Eject Hardware" Icon located in

the System Tray and "disconnect").

1.

To disconnect the DE50 carrier from the carrier dock, disable USB device on host

computer desktop before turning removing carrier (simply right-click on the "Unplug/

Eject Hardware" Icon located in the System Tray and "disconnect").

2.

To remove, simply slide the carrier out from the carrier dock.

Protective carrier sleeve and labels are provided for transportation and identification of

carrier.

DE50 Carrier

(Not Included)

Carrier

Dock

Split USB 2.0

Cable

Carrier Dock

PWR

Connect to your computer’s

USB port (Required)

Connect to your computer’s

USB port (Recommended)

INSTALLATION

NOTES:

To meet your particular drive’s power-up requirements, StorCase recom-

mends that both connectors of the split USB cable be plugged into your PC’s

USB ports.

If USB power does not meet your particular drive’s power-up requirements

(refer to your drive manufacturer's documentation for further information),

an optional AC Power Adapter (P/N S21B129) is available. Contact StorCase

for further ordering information.

1.

Connect the split USB 2.0 cable to the rear of the carrier dock (Figure 2).

2.

Connect the remaining two (2) ends of the split cable to your computer's USB ports

(Figure 2). Refer to your system manufacturer’s documentation for further infor-

mation.

NOTE:

To meet your particular drive’s power-up requirements, StorCase

recommends that both connectors of the split USB cable be plugged

into your PC’s USB ports.

3.

Insert DE50 drive carrier (not included) into the carrier dock by carefully sliding the

carrier rearward until the carrier mates with the dock (Figure 3).

Data Backup and Restoration

For easy data backup and restoration, please refer to the Dantz User's Guide provided on

the Dantz Retrospect Backup software CD.
