-4-

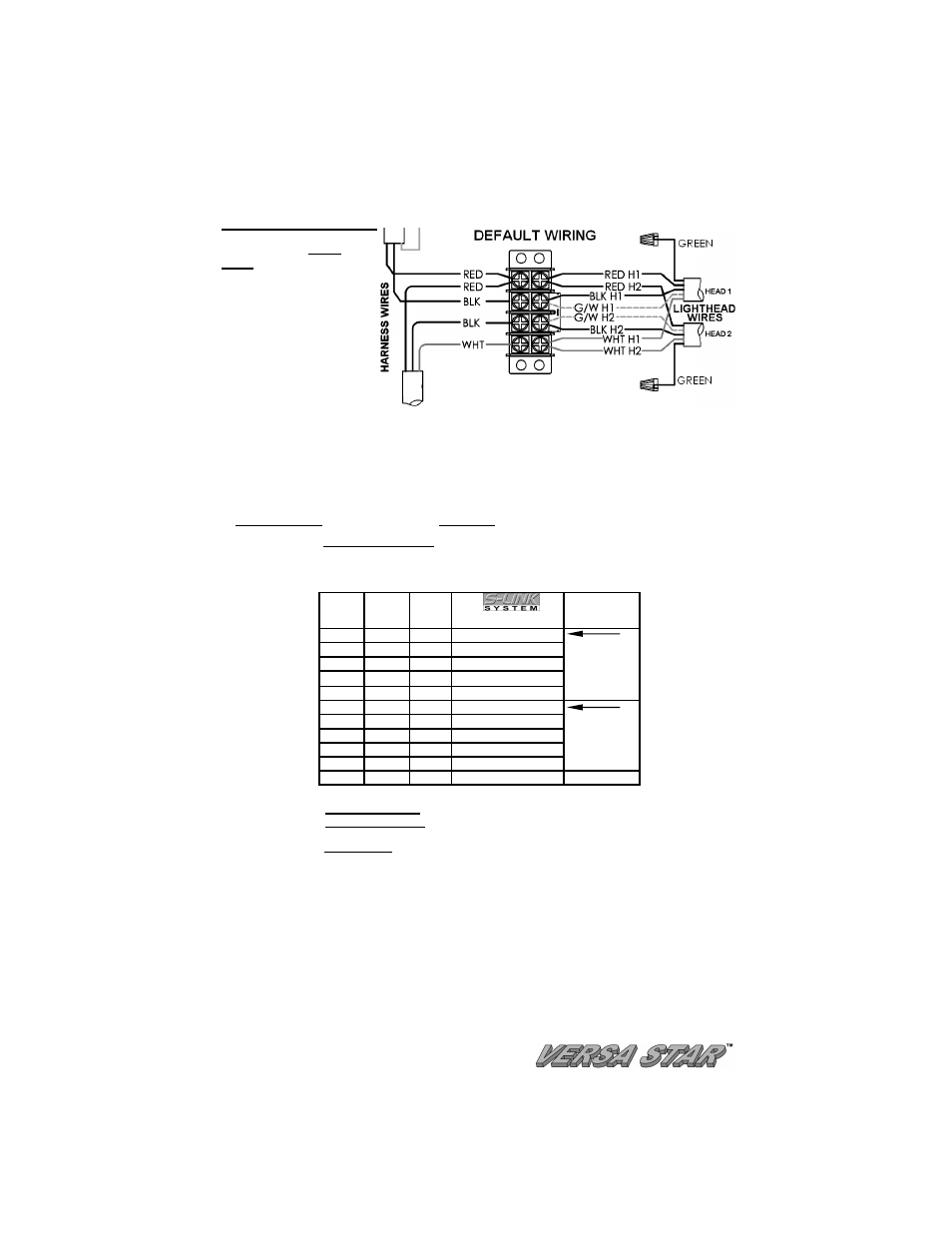

Pattern Programming
The capped off green
wires are used to
program the desired flash
pattern.
There are 10 different
Pattern Types you can
cycle through in two
different Phases, and an
additional “Steady Burn
Mode”.
If you have a DLX4 or DLX6 and are running in "Split Mode", the two halves will alternate
the pattern back and forth.
To change the pattern:
• Touch the green wire to ground for approximately 1 second and release it to cycle
through Patterns 1-20. After Pattern 20, the light will cycle back to Pattern 1.
PLEASE NOTE:
The pattern cycle does NOT include the Steady Burn mode.
To access the Steady Burn pattern, use the programming Shortcut.
(Optional Programming cont’d)
Phase 1
Flash
Pattern
Phase 2
Flash
Pattern
Pattern
Type
Pattern Description
Shortcut
1
11
K
Flicker †
Pattern 1
(Phase 1)
:
3 sec or 1 flash
Pattern 11
(Phase 2)
:
9 sec or 3 flashes
2
12
L
Fast Doubleflash
3
13
M
Tripleflash †
4
14
N
PSU Flicker
5
15
O
PSU Random
6
16
F
Quadflash †
7
17
G
Quadflash w/Post-Pop †
8
18
H
Singleflash †
9
19
I
Doubleflash †
10
20
J
Variable AKA Delta-Omega
NA
Steady
18Sec
† - Approved patterns for SAE J845 and California Title 13
Pattern Shortcuts: Hold Green wire to ground for indicated time.
Split Mode Phases: One side flashes in Phase 1, the other
side flashes in Phase 2
Steady Burn: Not in pattern cycle. Only accessible through
shortcut. Hold Green wire to ground for 18
seconds (light will flash 6 times).
Pattern 6
(Phase 1)
:
6 Sec or 2 flash
Pattern 16
(Phase 2)
:
12 sec or 3 flashes
